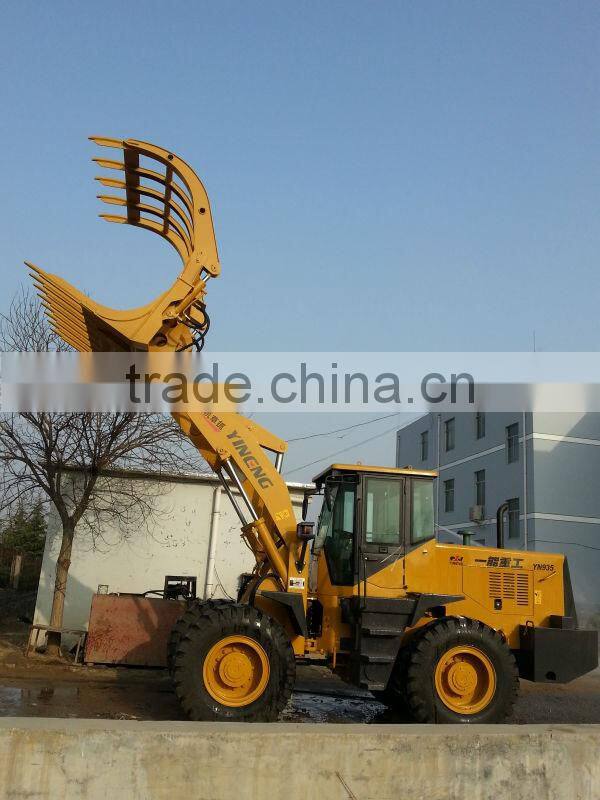

YN935 Grass Grasp Loader(1500kg+BS428 Transmission)

Name: YN935 Grass Grasp Loader(1500kg+BS428 Transmission)
Brand: YINENG
SKU: 141007320
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

YINENG

Model Number:

YN935

Shandong Yineng Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name YINENG

Model Number YN935

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7470x2310x3000mm

Rated Load 1500kg/1.5T

Certification ISO9001:2008/CE

Warranty 12 months

After-sales Service Provided Overseas service center available

1. ENGINE

Engine	Deutz
Model	WP6G125E23
Type	In line, water cooled, four stroke, dir.inject
Rated speed	2200r/min
Rated power	92kw
Min fuel consumption	235g/kw.h
Cylinder No.	6
Cylinder bore	108 mm
Max torque	463 N.m

2. ORKING SYSTEM

Hydraulic working system
Pump	GBGV2100
Multiple directional control valve type	DF25.2C

3. STEERING SYSTEM

Type	Full-hydraulic articulated steering
steering angle(each direction)	35°±1
Min turning radius	5160mm

4. TRANSMISSION SYSTEM

Torque convertor	Type		Three-element, single stage
	Model		YJ315x
	Torque ratio		3.23
	Cooling system		Circulated, water cooled
	Inlet oil pressure		500-600
Transmission box	Type		Full power shift, countershaft type
	Shift		Forward 4 Reverse 2
	Highest speed		36km/h
	Transmission ratio	Forward I	3.82
		Forward I	2.08
		Forward III	1.09
		Forward IV	0.59
		Reverse I	3.05
		Reverse II	0.87
	Model of Transmission pump		CBE532B
	Working pressure		1.2-1.5Mpa
Main Drive	Type		Spiral bevel gear, single stage
Final reducer	Type		Single stage, planetary shift
Driving axle and tyre	Type		Driving axle and tyre
	Tyre specification		17.5 x 25
	Tyre pressure	Front Wheel	343kpa
		Rear Wheel	294kpa
Brake system	Service brake		Air over hydraulic disc brake on 4 wheels
	Parking brake		Soft axis, cable control
