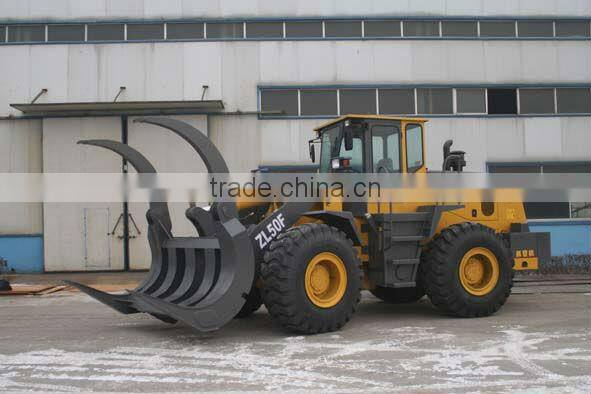

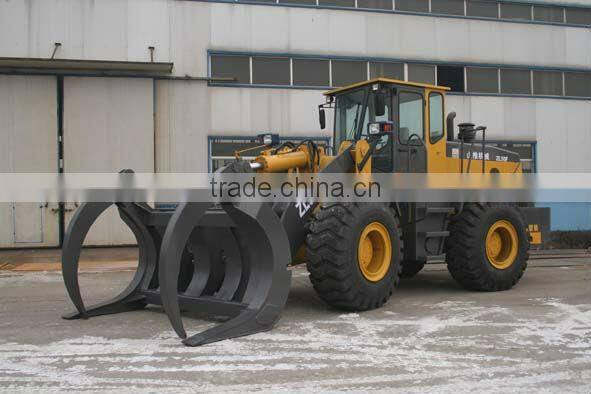

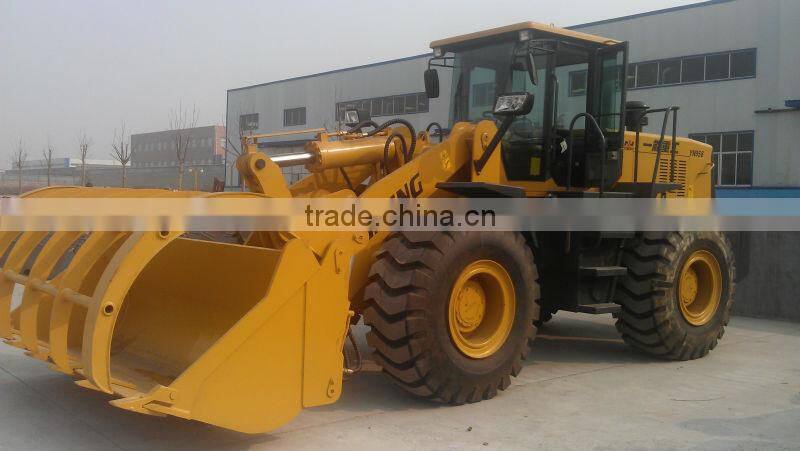

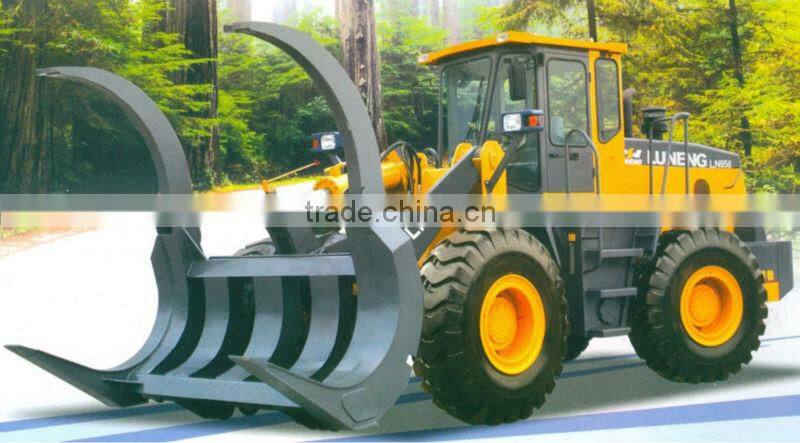

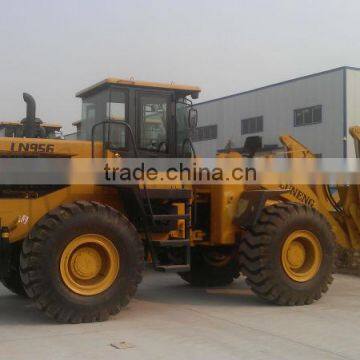

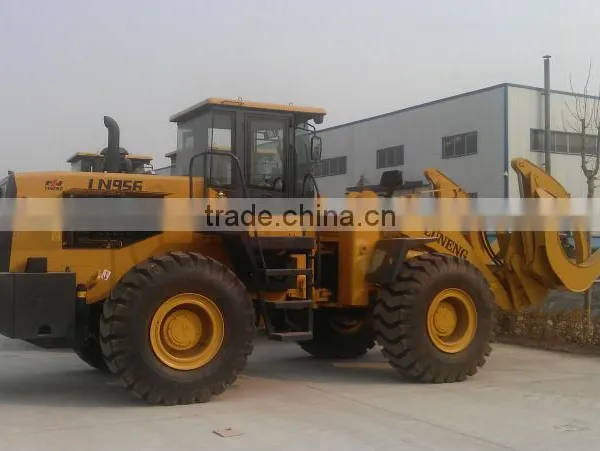

Log Grasper Loader (3500kg+Weichai Engine+ZL50 Transmission)

Name: Log Grasper Loader (3500kg+Weichai Engine+ZL50 Transmission)
Brand: YINENG
SKU: 141007330
Availability: InStock

Shandong Yineng Heavy Industry Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

YINENG

Model Number:

YN956

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name YINENG

Model Number YN956

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8320x3070x3400mm

Rated Load 3000kg/3T

Certification ISO9001:2008 & CE

Warranty 12 months

After-sales Service Provided Overseas third-party support available

Specifications

Weichai/Shangchai/Cummins engines+ZL50 transmission+Dumping height:3060mm.

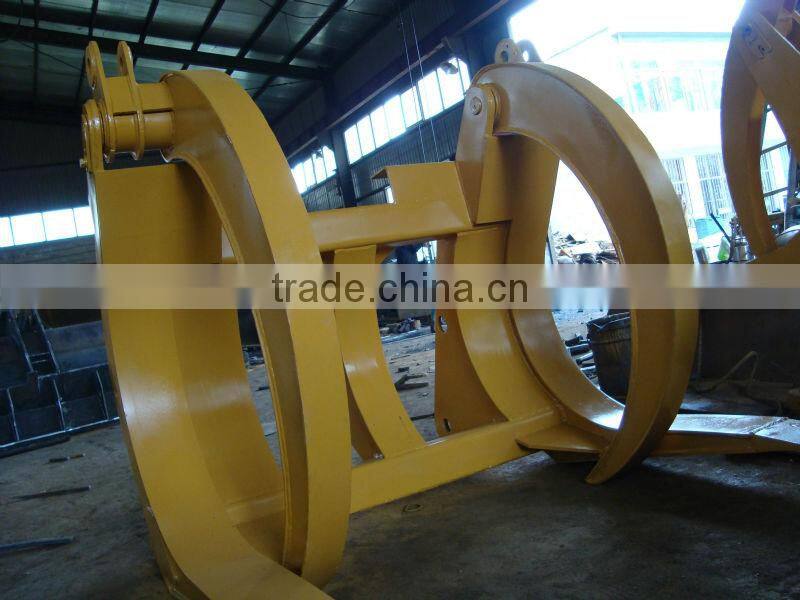

Item	Specifications
Min diameter of holding circle	400mm
Max diameter of holding circle	1200mm
Max opening dimension	1850mm
Dump height	3060mm
Dump reach	1750mm
Rated load capacity	3500kg

Item	Performance
Operating weight	17000kg
Max.dump height	3100mm
Max.dump reach	1285mm
Min.ground clearance	450mm
Wheel base	3200mm
Tread	2250mm
Height with bucket at full raise	5028mm
Automatic leveling ability	Yes
Static tilting load at full steering position	110KN
Max breakout force	175KN
Max drawing force	152KN
Max grade ability	30°
Lifting time	6.5s(full load )
Total cycle time(lifting, dumping, lowering)	12s(full load)
Overall dimensions (l×w×h)mm	8004×3070×3300
Fuel tank capacity	300L

ENGINE

Item	Performance
Engine	Caterpillar Technology engine(made by Shanghai Diesel Company)
Model	C6121ZG10f
Performance standard	3T9901
Rated Power	162kW / 220HP
Net Power	154kW / 209HP
Rated Rotation(r/min)	2200
Fuel Consumption(g/kWh)	240
Smoke intensity(FSU)	2
Torque check rotation(r/min)	1400
Test torque(Nm)	840
Torque DRR(%)	20
Fuel Consumption(g/kWh)	225
Smoke intensity	2.5
Machine oil consumption(g/kWh)	0.7
Max deadhead rotation (r/min)	2360
Idle speed (r/min)	750
Oil supply timing(BTDC)	21°
Max altitude height (M)	2250
The first heavy repair period(H)	8000
Weight (kg)	960

WORKING SYSTEM

Item	Performance
Hydraulic working system type	Twin pump merging
Pump	CBG3100
Multiple directional control valve	DF32.2

STEERING SYSTEM

Item	Performance
Type	Coaxes flow-amplified, pressure-compensated
steering angle(each direction)	35°±1
Min turning radius(outside of rear wheel )	6288mm

TRANSMISSION SYSTEM

Item			Performance
Torque convertor	Type		Three-element, single stage
	Model		YJ375
	Torque ratio		3.357
	Cooling system		Pressure oil circulated
	Inlet oil pressure		600-700
	Outlet oil pressure		150-200
Transmission	Type		Full power shift, countershaft type
	Shift		Forward 4 Reverse 4
	Highest speed		38km/h
	Transmission ratio	Forward I	3.488
		Forward II	1.806
		Forward III	1.126
		Forward IV	0.583
		Reverse I	3.488
		Reverse II	1.806
	Model of Transmission pump		CBG2040
	Working pressure		1.5-1.8Mpa
Main Drive	Type		Spiral bevel gear, single stage
Final drive	Type		Single stage, planetary shift
Driving axle and tyre	Type		Driving axle and tyre
	Tyre specification		23.5 x 25
	Tyre pressure	Front Wheel	343kpa
		Rear Wheel	304kpa
Brake system	Service brake		Air over hydraulic disc brake on 4 wheels
	Parking brake		Air off control inner expand hoof
