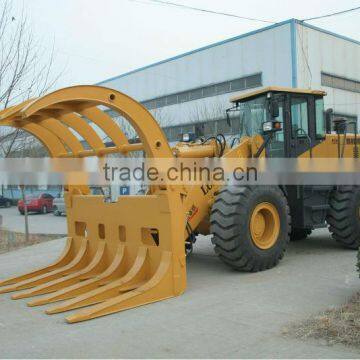

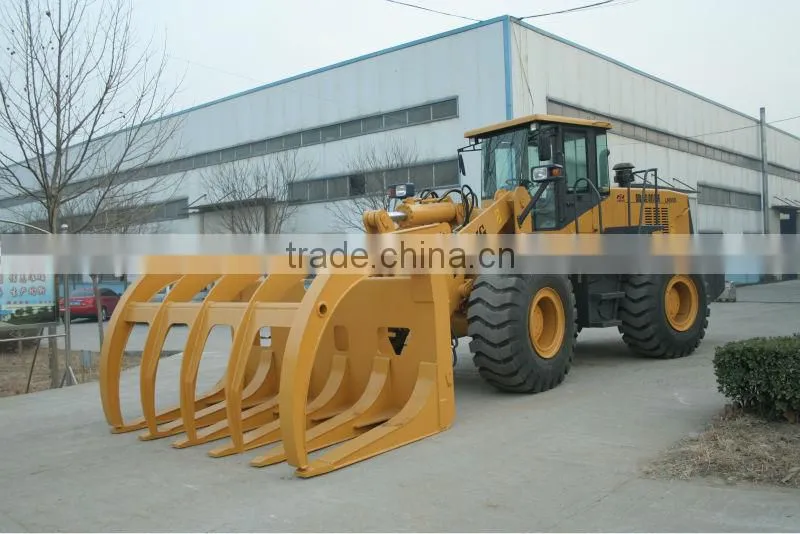

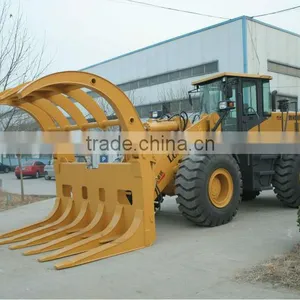

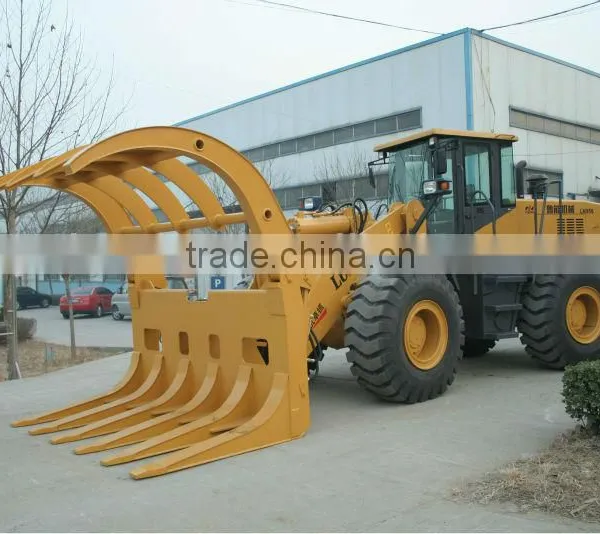

YN956 Grass Grapple Loader(3500kg+Cummins Engine+ZL50 Transmission)

Name: YN956 Grass Grapple Loader(3500kg+Cummins Engine+ZL50 Transmission)
Brand: YINENG
SKU: 141007324
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

YINENG

Model Number:

YN956

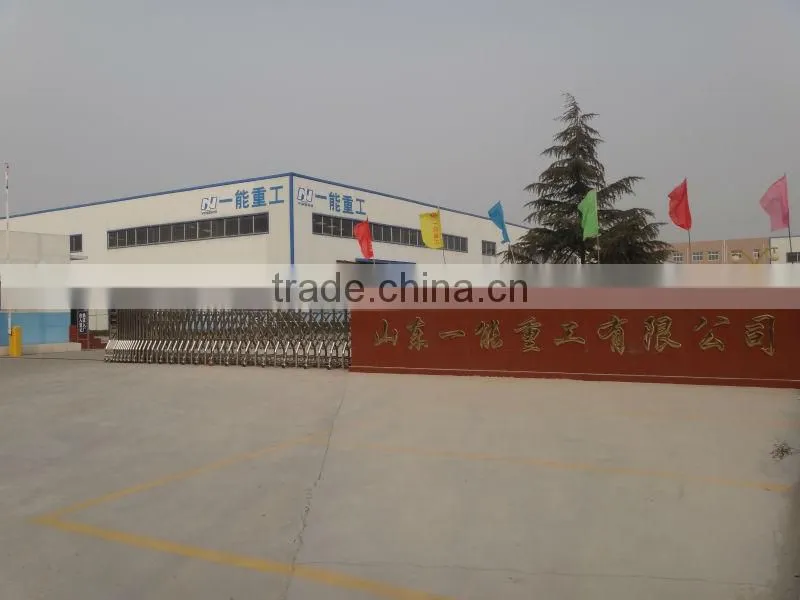

Shandong Yineng Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name YINENG

Model Number YN956

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8110x3070x3400mm

Rated Load 3500kg

Certification ISO9001:2008/CE

Warranty 12 months

After-sales Service Provided Overseas service center available

1. ENGINE

Engine	Caterpillar Technology engine(made by Shanghai Diesel Company)
Model	C6121ZG10f
Performance standard	3T9901
Rated Power	162kW / 220HP
Net Power	154kW / 209HP
Rated Rotation(r/min)	2200
Fuel Consumption(g/kWh)	240
Smoke intensity(FSU)	2
Torque check rotation(r/min)	1400
Test torque(Nm)	840
Torque DRR(%)	20
Fuel Consumption(g/kWh)	225
Smoke intensity	2.5
Machine oil consumption(g/kWh)	0.7
Max deadhead rotation (r/min)	2360
Idle speed (r/min)	750
Oil supply timing(BTDC)	21°
Max altitude height (M)	2250
The first heavy repair period(H)	8000
Weight (kg)	960

2. WORKING SYSTEM

Hydraulic working system type	Twin pump merging
Pump	CBG3100
Multiple directional control valve	DF32.2

3. STEERING SYSTEM

Type

Coaxes flow-amplified,

pressure-compensated

steering angle(each direction)

35°±1

Min turning radius(outside of rear wheel )

6288mm

4. TRANSMISSION SYSTEM

Torque convertor	Type		Three-element, single stage
	Model		YJ375
	Torque ratio		3.357
	Cooling system		Pressure oil circulated
	Inlet oil pressure		600-700
	Outlet oil pressure		150-200
Transmission	Type		Full power shift, countershaft type
	Shift		Forward 4 Reverse 4
	Highest speed		38km/h
	Transmission ratio	Forward I	3.488
		Forward II	1.806
		Forward III	1.126
		Forward IV	0.583
		Reverse I	3.488
		Reverse II	1.806
	Model of Transmission pump		CBG2040
	Working pressure		1.5-1.8Mpa
Main Drive	Type		Spiral bevel gear, single stage
Final drive	Type		Single stage, planetary shift
Driving axle and tyre	Type		Driving axle and tyre
	Tyre specification		23.5 x 25
	Tyre pressure	Front Wheel	343kpa
		Rear Wheel	304kpa
Brake system	Service brake		Air over hydraulic disc brake on 4 wheels
	Parking brake		Air off control inner expand hoof
