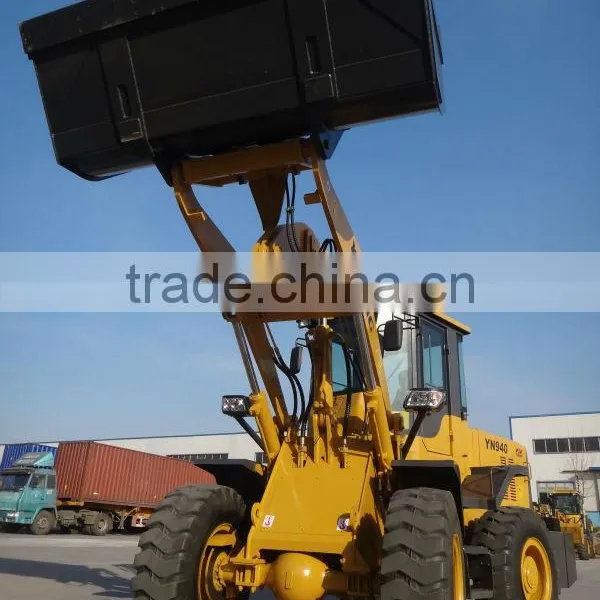

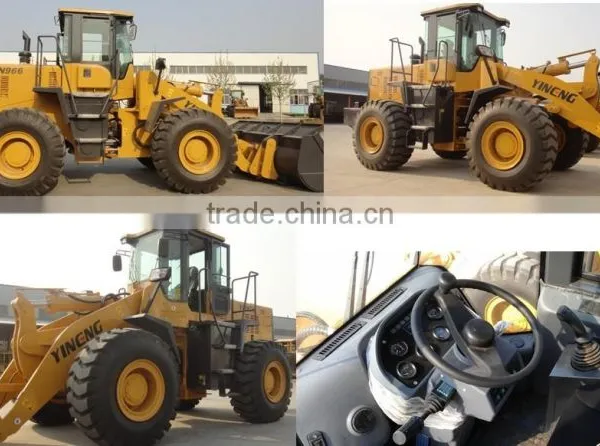

ZL60 Loader / Wheel Loader/ Front End Loader With CAT Tech. Engine and ZF Gearbox

Performance

1

Rated load

6000kg

2

Overall weight

19200kg

3

Rated capacity

3.5m3

4

Max. Tractive force

170KN

5

Max. Breakout force

≥190KN

6

Max. Grade ability

30°

7

Max. Dumping height

3100mm

8

Max. Dumping reach

1250mm

9

Overall dimension L x W x H

8160x3070x3400mm

10

Min. Turning radius

6630mm

Engine

11

Model

Shangchai CAT SC11CB240.1G2B1

12

Type

Inline/Turbocharged/water colling

13

No. Of cylinder-bore/stoke

6-121x152mm

14

Rated power

175kw-2200r/min

15

Max. torque

950N.m

16

Min. Fuel-consume ratio

≤215g/kw.h

Transmission

17

Model

WG180 made by

Hangzhou Advance Gearbox Group

18

Gear shift

4 forward, 3 reverse.

Electronic control gear shift

19

Max. speed

38km/h

Drive axle

20

Main reducing spiral

Bevel gear grade 1 reduction

21

Decelerating mode

Planetary reduction, grade 1.

22

Wheel base

3200mm

23

Wheel tread

2250mm

24

Min. ground clearance

510mm

Hydraulic system

25

System working pressure

18MPa

26

Boom lifting time

6.0+0.2s

27

Total time

12+0.5s

28

Fuel tank capacity

300L

29

Leveling automatically

Yes

Break system

30

Service brake

Air over hydraulic disc brake on 4 wheels

31

Parking brake

expand hoof type

Tyre

32

Type

26.5-25

33

Front tyre pressure

0.4Mpa

34

Rear tyre pressure

0.35Mpa
