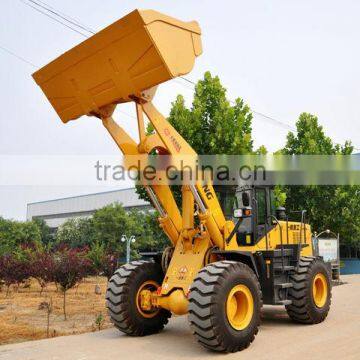

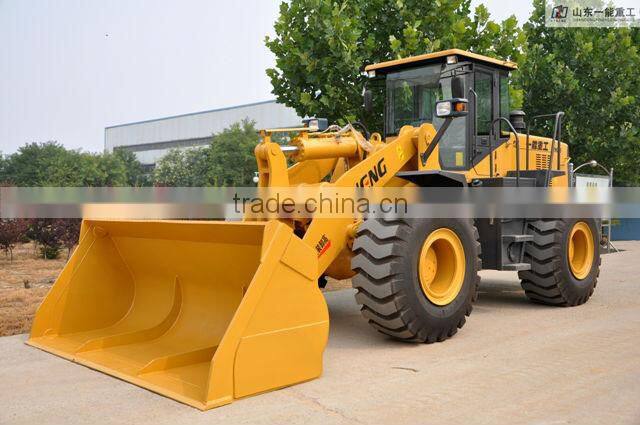

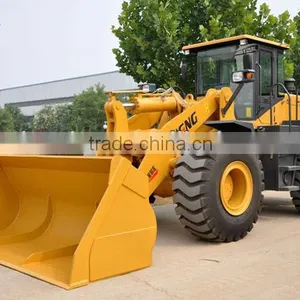

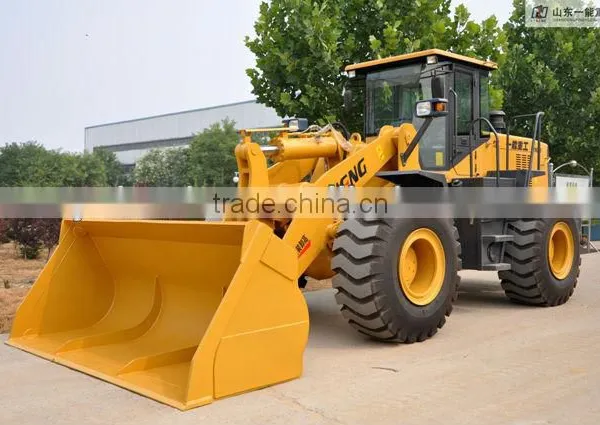

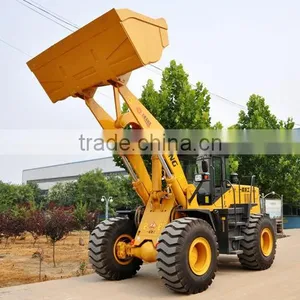

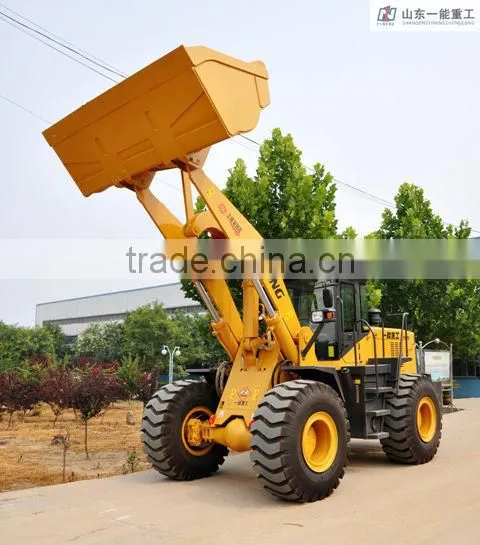

Coal Wheel Loader YN956

Name: Coal Wheel Loader YN956
Brand: YINENG
SKU: 141006904
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

YINENG

Model Number:

YN956

Shandong Yineng Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB QINGDO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name YINENG

Model Number YN956

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8110*3070*3400MM

Rated Load 5000kg

Certification GOST,CE,ISO

Warranty 1 Year

After-sales Service Provided Overseas service center available

Specifications

* Weichai Steyr WD10G220E21 diesel engine
* Bucket capacity 3.0-4.5 m3
* Rated load 5000kg
* Dumping height 3100mm

FEATURES:

The most cost-effective

* Weichai Steyr WD10G220E21 diesel engine
* Bucket capacity 3.0-4.5 m3
* Rated load 5000kg
* Dumping height 3100mm

OPTIONALS:

• Caterpillar Technology Engine

(Model C6121ZG50= CAT 3306B, from Shanghai Diesel Co.);

• DongFeng Cummins Engine

(Model: 6CTA8.3-C215, from DongFeng Cummins Co.);

• ZF Technology Gear Box (Model: WG180);

• Hydraulic Joystick Control;

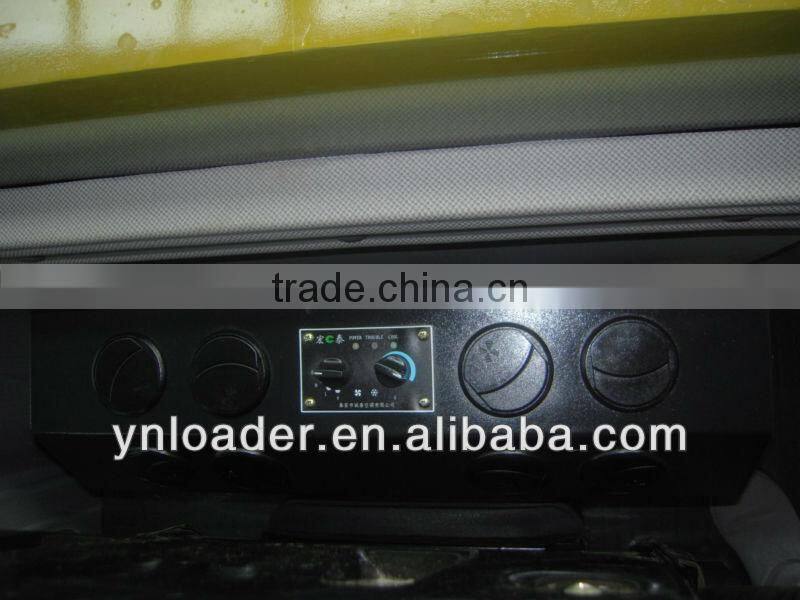

• Air Conditioner

• ROPS Cabin

1-    SPECIFICATIONS:

Item	Specifications	Item	Specifications
Bucket capacity	3.8 m³	Min. turning radius (outside of rear wheels)	6288mm
Rated load	5000 kg	steering angle	(35º R/L)
Dumping height	3100 mm	Min. ground clearance	500mm
Dumping reach	1285mm	Wheel base	3200mm
Boom lifting time	6.5 S	Tread	2250mm
Total cycling time	12 S	Engine model	WD615G220
Max. speed	36 km/h	Rated power	162kW/2200rpm
Max. breakout force	175 kN	Tyre	23.5-25
Max.drawing force	150 kN	Overall dimensions	811030703400mm
Max. Gradeability	30°	Operating weight	16500kg
