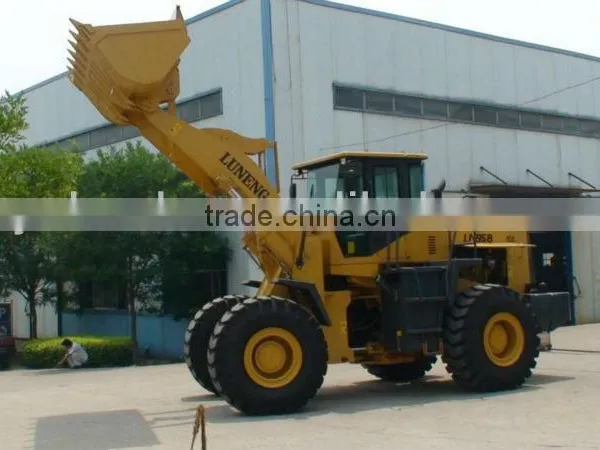

Wheel Loaders 5t-YN958

Specifications

Bucket capacity 3m3; Rated load 5t;Dumping height 3100mm; Operating weigh 17000kg

1-    FEATURES AND OPTIONALS:

FEATURES:

The most cost-effective

*Caterpillar Technology Shangchai engine is adopted, with large torque backup and strong power.

*Single stage, 4 elements, twin turbo ZL50 torque converter and planetary gearbox from Hangzhou Advance Gearbox Group, compact structure and high reliability.

*Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labour.

*Strengthened axles owns large bearing capacities and high reliability.

*Twin pump merging hydraulic system makes lower consumption and excellent performance.

*The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performace reliable.

*Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.

*Air over hydraulic brake system; Eight caliper disc brakes.

*Air break control, expand hoof type parking brake and emergency brake.

*Large space articulated frame makes operation and traveling stable.

*Special rock bucket with body and two sides are strengthened. Main blade adopts wear-resisting material, added with replaceable auxiliary blade and bucket tooth.

*Working device with automatically levelling ability at high position.

*Main articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

*Integral, luxury instrument board.

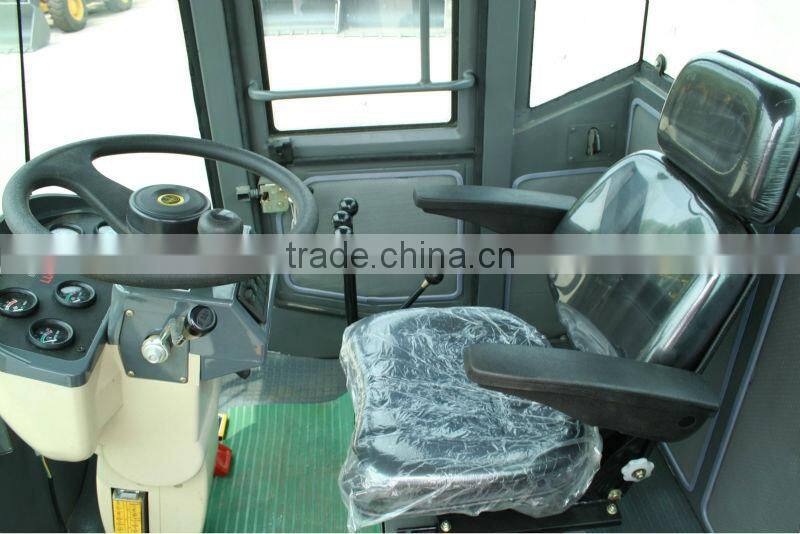

*New, luxury cabin.

OPTIONALS:

• ZF Technology Gear Box (Model: WG180);

• Hydraulic Joystick Control;

• Air Conditioner

*CE Approved.

*Obtained the certificate of ISO9001:2000;

*Manufacturing license number: TS2510025-2009.

2-    SPECIFICATIONS:
