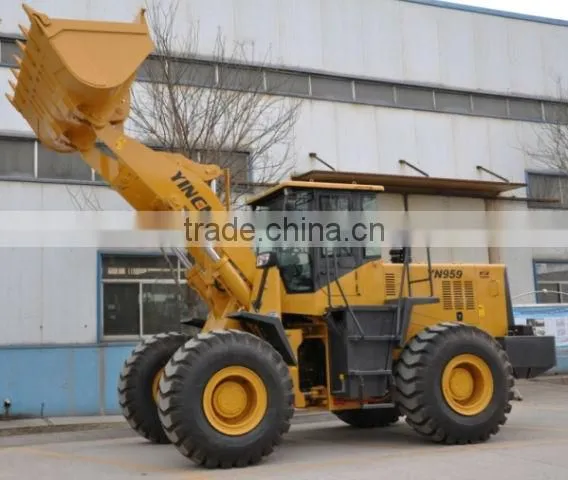

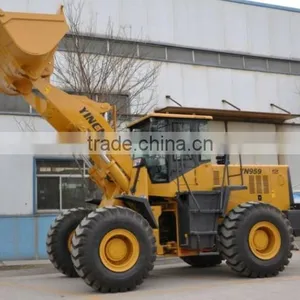

YN959 Wheel loaders
- 300 Unit / Units per Month
- FOB QINGDAO
- T/T L/C D/P D/A
Product Details
Condition: | New | Brand Name: | YINENG | Model Number: | YN959 |
Place of Origin: | Shandong, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 7960*3070*3400MM | Rated Load: | 5000KG | Certification: | GOST;CE;ISO |
Warranty: | 1 YEAR | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
Bucket capacity 3m3; Rated load 5t;Dumping height 3100mm; Operating weigh 17000kg; Cummins 6CTA8.3-C215 Engine
Bucket capacity 3m3; Rated load 5t;Dumping height 3100mm; Operating weigh 17000kg ;Cummins 6cta8.3-c215 engine;162kw
1- FEATURES AND OPTIONALS:
*Dongfeng cummins engine is adopted, with large torque backup and strong power.
*Hangzhou Advance Gear Group WG180 torque converter and fix-shaft gearbox, with ZF technology.
*Electro-hydraulic control, 4 forward and 3 reverse,
*Single lever pilot control system makes operation easy and comfortable.
*Strengthened axles owns large bearing capacities and high reliability.
*Twin pump merging hydraulic system makes lower consumption and excellent performance.
*The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performace reliable.
*Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
*Air over hydraulic brake system; Eight caliper disc brakes.
*Air break control, expand hoof type parking brake and emergency brake.
*Large space articulated frame makes operation and traveling stable.
*Working device with automatically levelling ability at high position.
*Main articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
*Integral, luxury instrument board.
*New, luxury cabin.
OPTIONALS:
• Original Cummins engine
(Model QSB6.7, Eur III)
• DongFeng Cummins Engine
(Model: 6CTA8.3-C215, from DongFeng Cummins Co.);
• ZF Technology Gear Box (Model: WG180);
• Hydraulic Joystick Control;
• Air Conditioner
*CE Approved.
*Obtained the certificate of ISO9001:2000;
*Manufacturing license number: TS2510025-2009.
1- SPECIFICATIONS:
Item | Specification | Item | Specifications |
Bucket capacity | 3 m3 | Min. turning radius (outside of rear wheels) | 6630mm |
Rated load | 5000 kg | steering angle | 38º |
Dumping height | 3100 mm | Min. ground clearance | 500mm |
Dumping reach | 1280 mm | Wheel base | 3200mm |
Boom lifting time | 6 S | Tread | 2250mm |
Total cycling time | 12 S | Engine model | C6121ZG50 |
Max. speed | 38 km/h | Rated power | 162kW/2200rpm |
Max. breakout force | 180 kN | Tyre | 23.5-25 |
Max.drawing force | 152 kN | Overall dimensions | 7960*3070*3400mm |
Max. Gradeability | 30° | Operating weight | 17000kg |
