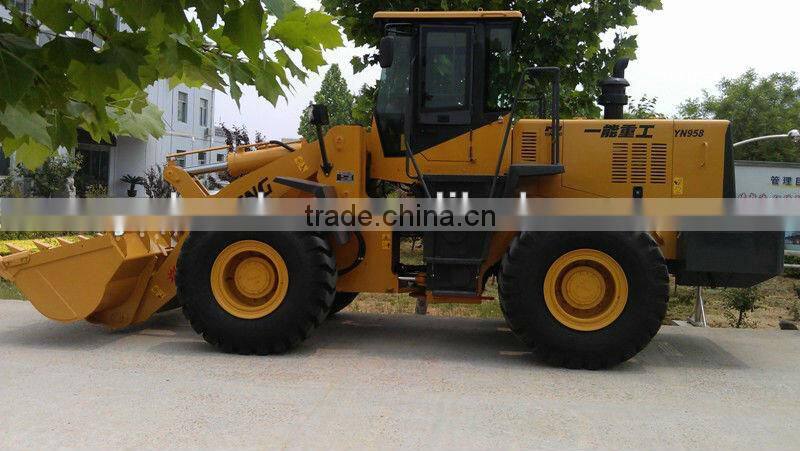

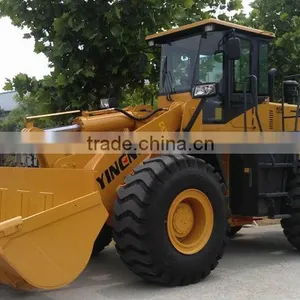

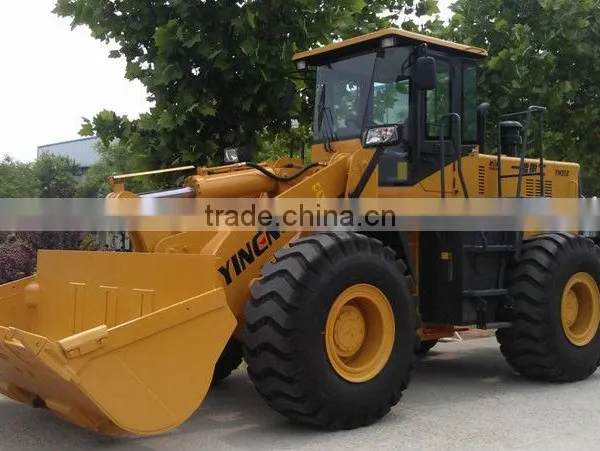

Help Center5 Tons Front Wheel Loader-YN958
Related Products
-
YN959 Wheel LoaderUS$ 40,000 - 50,000MOQ: 1 Unit -
5T/ZL50 Front Wheel Loader With ZF GearboxNegotiableMOQ: 1 Unit
-
5ton Front End Loader (5000kg+3m3+Shangchai CATengine+ZL50 Transmission+ Heavier Chassis)NegotiableMOQ: 1 Unit
-
Loader (5000kg+3m3+Weichai Engine+ ZL50 Transmission)NegotiableMOQ: 1 Unit
-
Small Wheel Loader ZL50 /(5000kg+3m3+Weichai Engine+ ZL50 Transmission)US$ 7,000 - 40,000MOQ: 1 Piece
Bucket capacity 3m3; Rated load 5t;Dumping height 3100mm; Operating weigh 17000kg
FEATURES:
The most cost-effective
*Caterpillar Technology Shangchai engine is adopted, with large torque backup and strong power.
*Single stage, 4 elements, twin turbo ZL50 torque converter and planetary gearbox from Hangzhou Advance Gearbox Group, compact structure and high reliability.

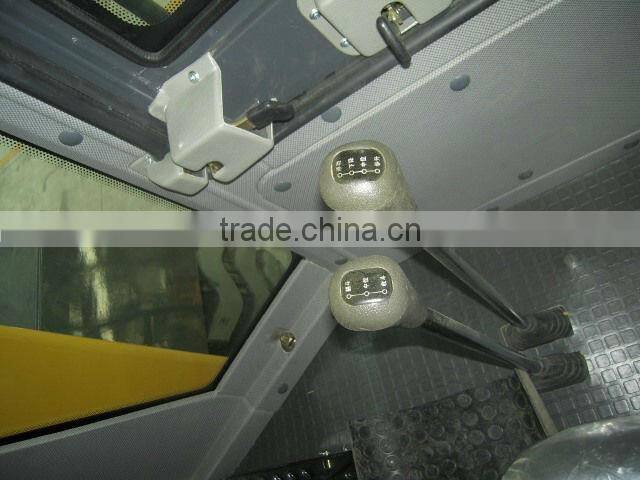

*Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labour.
*Strengthened axles owns large bearing capacities and high reliability.
*Twin pump merging hydraulic system makes lower consumption and excellent performance.
*The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performace reliable.
*Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
*Air over hydraulic brake system; Eight caliper disc brakes.
*Air break control, expand hoof type parking brake and emergency brake.

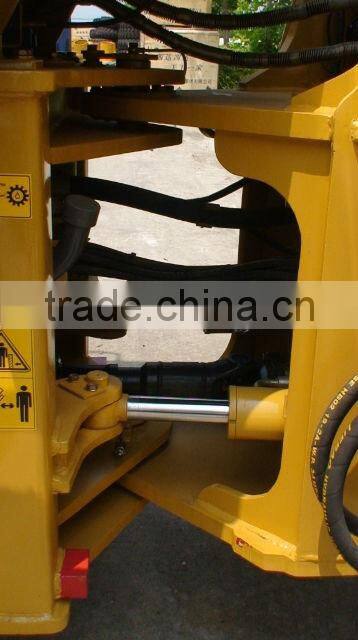

*Large space articulated frame makes operation and traveling stable.

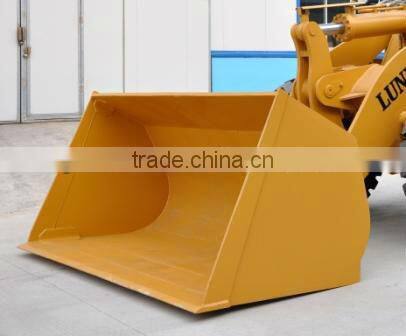

*Special rock bucket with body and two sides are strengthened. Main blade adopts wear-resisting material, added with replaceable auxiliary blade and bucket tooth.
*Working device with automatically levelling ability at high position.
*Main articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

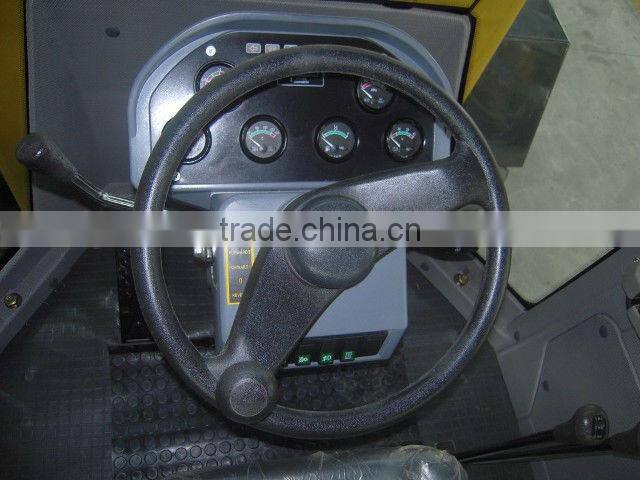

*Integral, luxury instrument board.

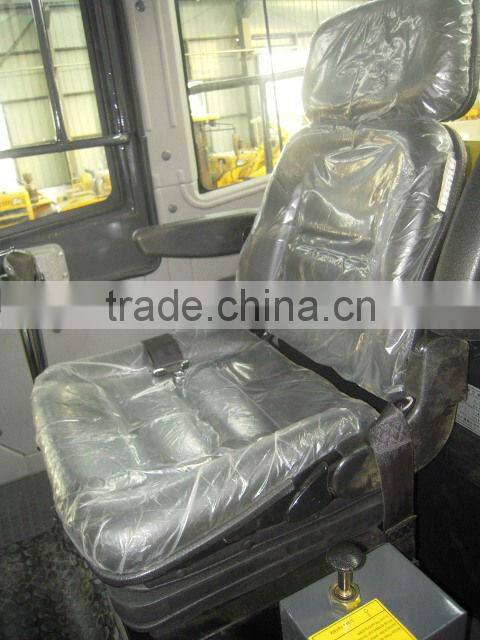

*New, luxury cabin.
OPTIONALS:
• Original Cummins engine
(Model QSB6.7, Eur III)
• DongFeng Cummins Engine
(Model: 6CTA8.3-C215, from DongFeng Cummins Co.);
• ZF Technology Gear Box (Model: WG180);
• Hydraulic Joystick Control;

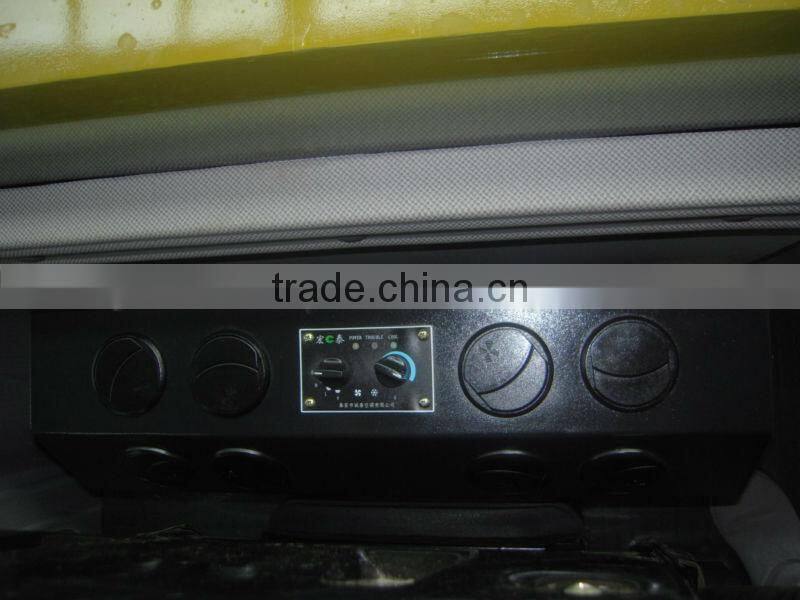

• Air Conditioner
*CE,GOST,ISO Approved.
*Obtained the certificate of ISO9001:2000;
*Manufacturing license number: TS2510025-2009.
1- SPECIFICATIONS: Item |
Specification |
Item |
Specifications |
Bucket capacity |
3 m3 |
Min. turning radius (outside of rear wheels) |
6630mm |
Rated load |
5000 kg |
steering angle |
38º |
Dumping height |
3100 mm |
Min. ground clearance |
500mm |
Dumping reach |
1280 mm |
Wheel base |
3200mm |
Boom lifting time |
6 S |
Tread |
2250mm |
Total cycling time |
12 S |
Engine model |
C6121ZG50 |
Max. speed |
38 km/h |
Rated power |
162kW/2200rpm |
|
Max. breakout force |
180 kN |
Tyre |
23.5-25 |
Max.drawing force |
152 kN |
Overall dimensions |
7960*3070*3400mm |
Max. Gradeability |
30° |
Operating weight |
17000kg |
