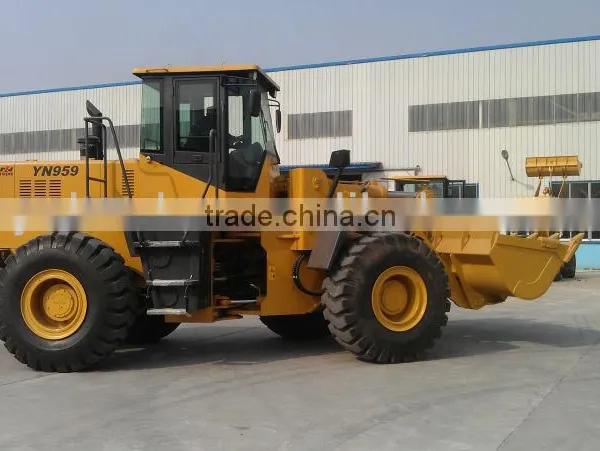

FEATURES:
Caterpillar Technology Shangchai engine is adopted, with large torque backup and strong power. |
Heavier chassis. |
Hangzhou Advance Gear Group WG180 torque converter and fix-shaft gearbox,with ZF technology. |
Electro-hydraulic control, 4 forward and 3 reverse. |

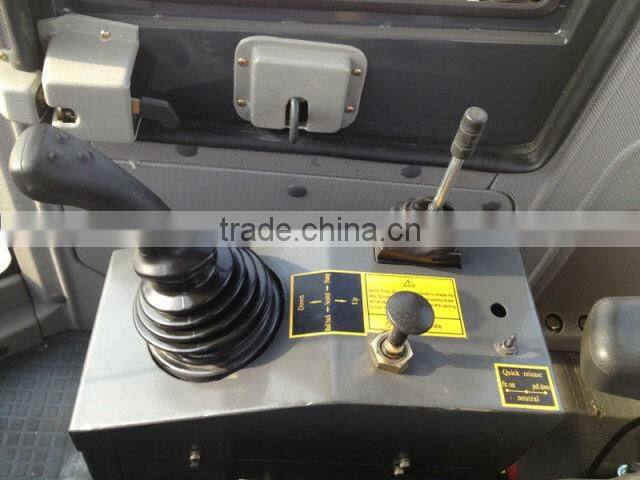

Single lever joystick control system makes operation easy and comfortable. |
Strengthened axles owning large bearing capacities and high reliability. |
Twin pump merging hydraulic system makes lower consumption and excellent performance.
|
The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performance reliable. |
Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously. |
Air over hydraulic brake system; Eight caliper disc brakes. |
Air break control, expand hoof type parking brake and emergency brake. |

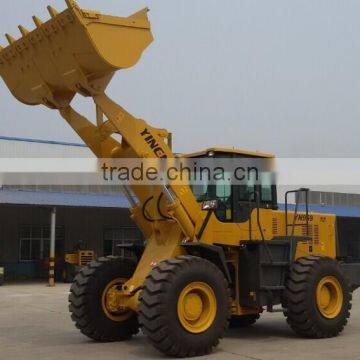

Working device with automatically leveling ability at high position. |
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability. |

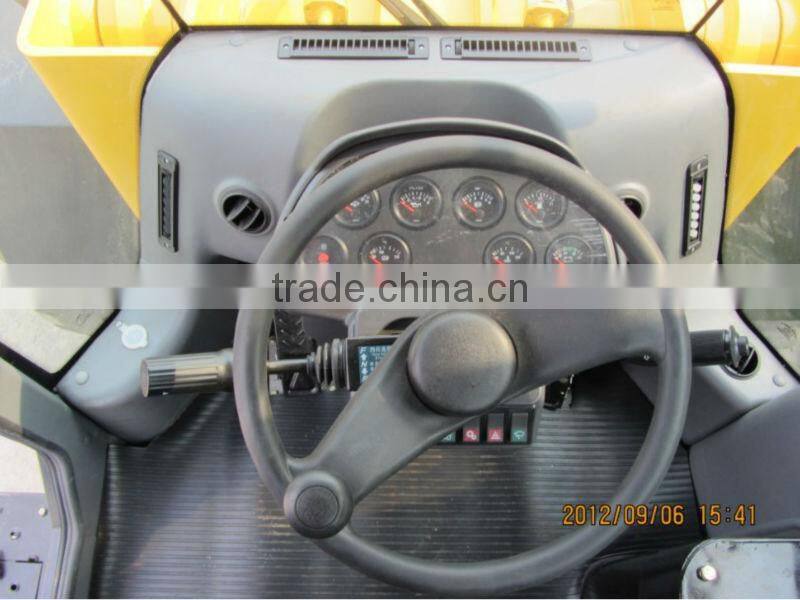

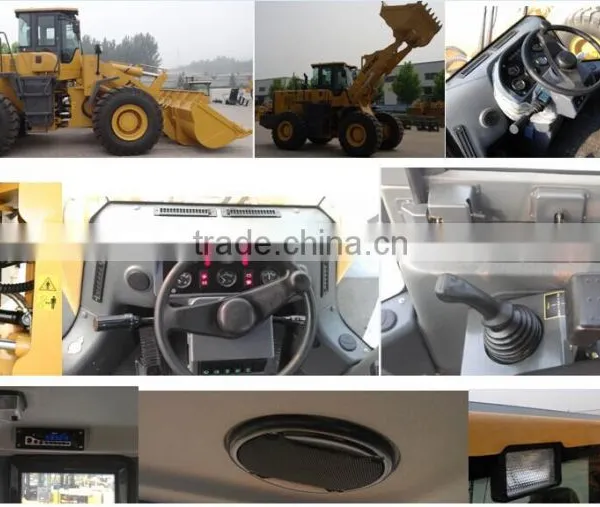

Integral, luxury instrument board. |
New, luxury cabin |
TECHNICAL SPECIFICATIONS
Item | Specifications | Item | Specifications |
Bucket capacity | 3.0 m3 | Rated power | 162kW/2200rpm |
Rated load | 5000 kg | Tyre | 23.5-25 |
Dumping height | 3100 mm | Overall dimensions | 7960*3070*3400mm |
Max. breakout force | 170 KN | Operating weight | 17000kg |
Max. drawing force | 150 KN |
