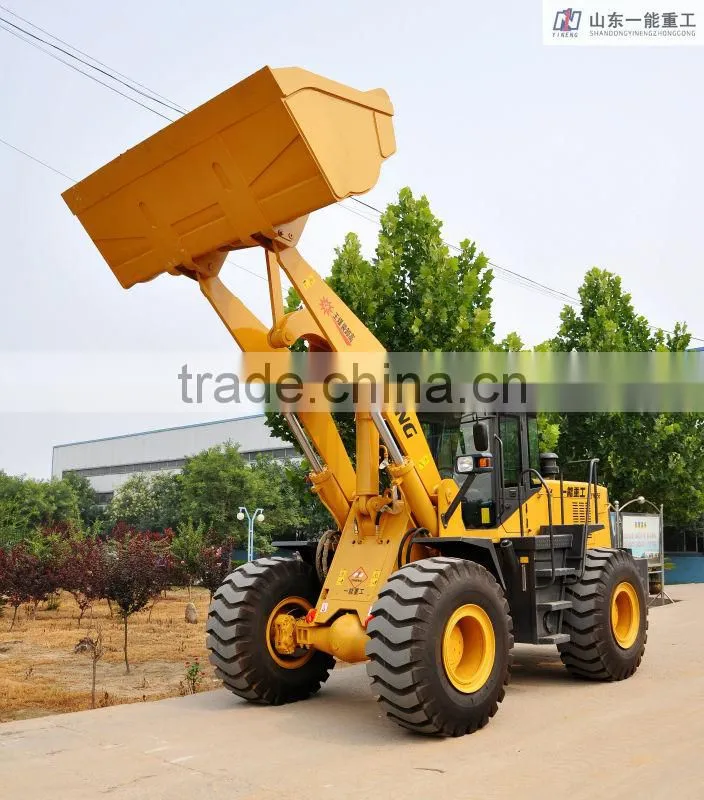

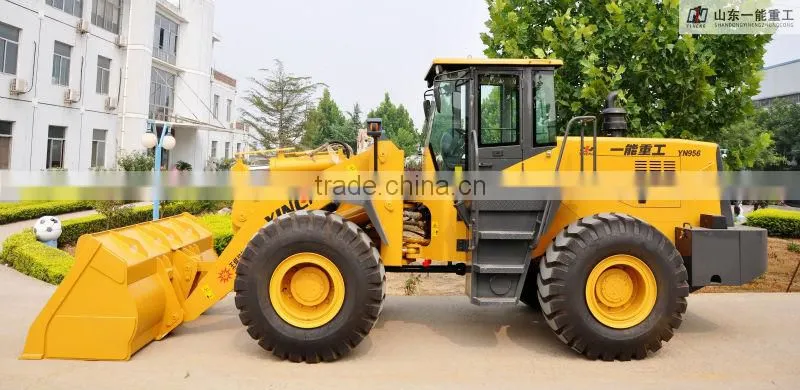

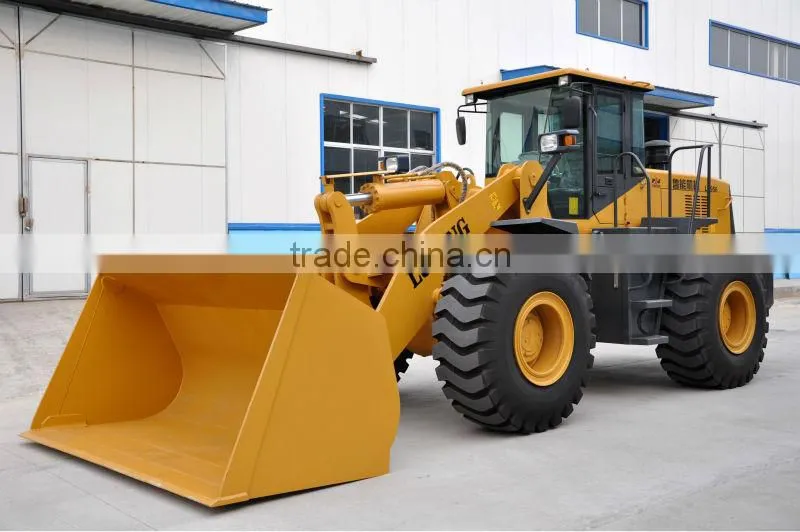

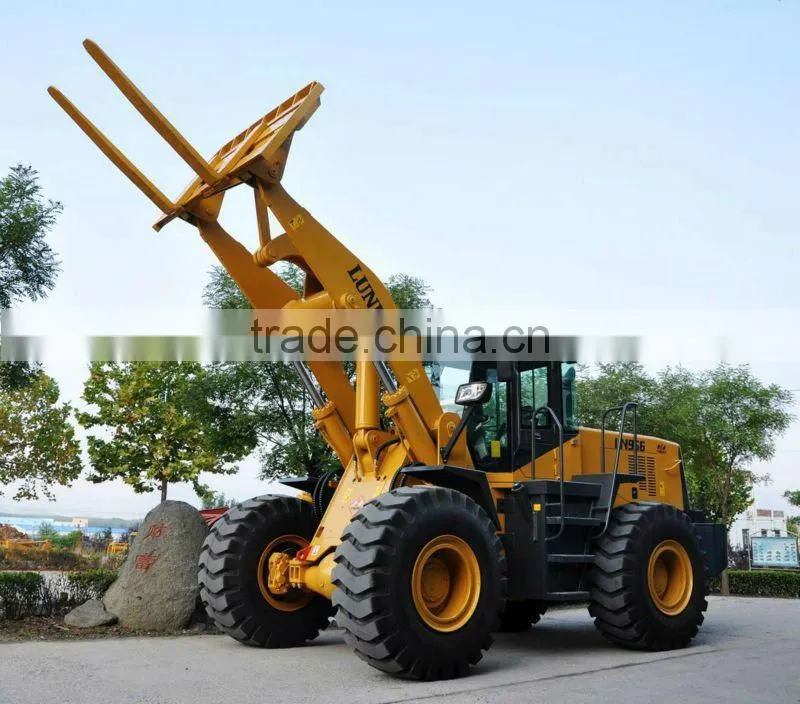

Loader (5000kg+3m3+Weichai Engine+ ZL50 Transmission)
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
YINENG
Model Number:
YN956
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Wheel Loader ZL50 /(5000kg+3m3+Weichai Engine+ ZL50 Transmission)US$ 7,000 - 40,000MOQ: 1 Piece -
5 Ton Front End LoaderNegotiableMOQ: 1 Piece
-
ZL50 Mining Front End LoaderNegotiableMOQ: 1 Unit
-
5 Ton Wheel Loader With Shangchai CAT EngineNegotiableMOQ: 1 Piece
-
Coal Wheel Loader YN956NegotiableMOQ: 1 Unit
Condition
New
Brand Name
YINENG
Model Number
YN956
Place of Origin
Shandong, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
8110x3070x3400mm
Rated Load
5000kg/5T
Certification
ISO9001:2008 & CE
Warranty
12 months
After-sales Service Provided
Overseas third-party support available
Specifications
ZL50 loader, Chinese well-known hydraulic and drive system with world famous engine.14 years of mature technology.
Item |
Specifications |
Item |
Specifications |
Bucket capacity |
3.0 m3 |
Min. turning radius (outside of rear wheels) |
6288mm |
Rated load |
5000 kg |
steering angle |
(35º R/L) |
Dumping height |
3100 mm |
Min. ground clearance |
500mm |
Dumping reach |
1285mm |
Wheel base |
3200mm |
Boom lifting time |
6.5 S |
Tread |
2250mm |
Total cycling time |
12 S |
Engine model |
WD10G220E21 |
Max. speed |
36 km/h |
Rated power |
162kW/2200rpm |
|
Max. breakout force |
175 KN |
Tyre |
23.5-25 |
Max. drawing force |
150 KN |
Overall dimensions |
8110*3070*3400mm |
Max. Grade ability |
30° |
Operating weight |
16500kg |
Item |
Optional |
|
1 |
SHANGCHAI ENGINE SC11CB220G2B1 (162KW) |
√ |
2 |
DONGFENG CUMMINS 6CTA8.3-C215 |
√ |
3 |
Air condition |
√ |
4 |
Joystick |
√ |
5 |
Quick-hitch |
√ |
6 |
Fork |
√ |
7 |
ROPS |
√ |
8 |
ZF TECH GEARBOX (WG180) |
√ |
9 |
ZF TECH GEARBOX (WG200) |
√ |
