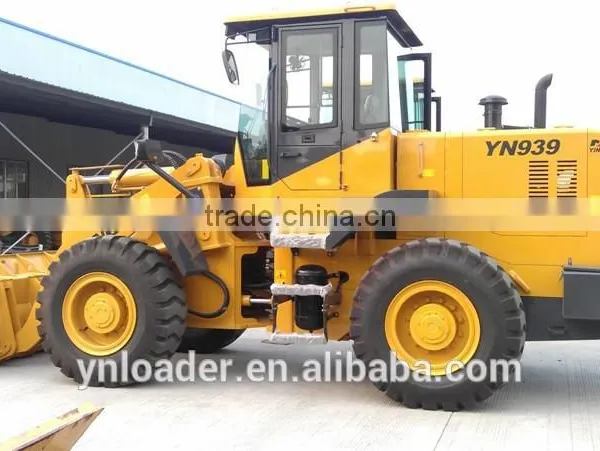

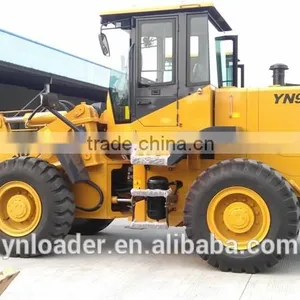

YN 939 Common model:
1. Features:
* Weichai DEUTZWP6G125E22 diesel engine, higher power and reliability
* Hangzhou Advance Gear Group ZL50 double-turbine hydraulic torque converter with reasonable structures and higher reliability make the loader obtaining more drawing force.
* Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labor.
* Single lever joystick control system, comfortable and flexible operation.
* Single pump, split flow working hydraulic system realizes the excellent fuel economy.
* Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
* Fully hydraulic load sensing steering system, flexible operation and higher reliability.
* Air over hydraulic disks on four wheel brakes.
* Large space articulated frames make operation and traveling stable.
* Working device with automatically leveling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
* Integral, luxury instrument board.
* New, luxury cabin

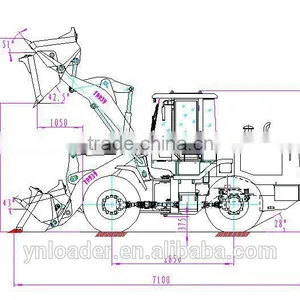

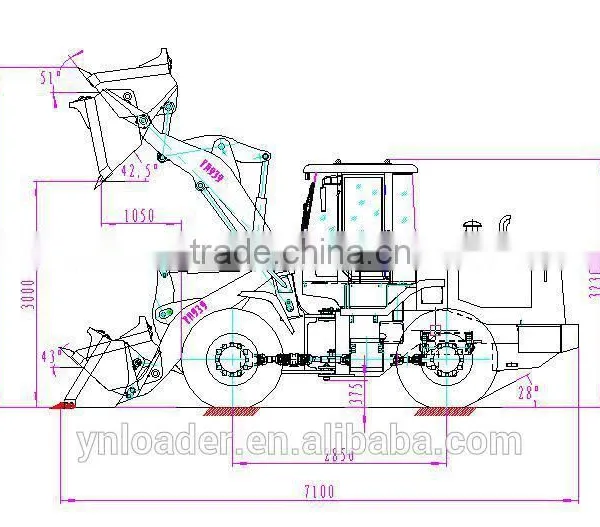

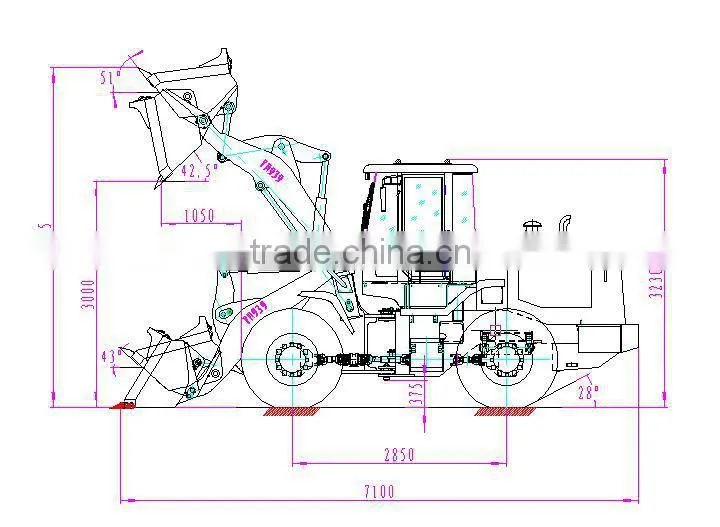

2.Main Specifications:
Item |
Specification |
Item |
Specification |
Bucket capacity |
1.8m³ |
Min. turning radius (outside of rear wheel) |
5160mm |
Rated load |
3000kg |
Steering angle |
36° |
Dumping height |
3050mm |
Min. ground clearance |
380mm |
Dumping reach |
1105mm |
Wheel base |
2700mm |
Boom lifting time |
5.5s |
Wheel tread |
1865mm |
Max. speed |
36km/h |
Rated power |
92kW/2200rpm |
Max. breakout force |
120kN |
Tyre |
17.5-25 |
Max. drawing force |
90kN |
Overall dimensions |
6910*2510*3100mm |
Max. grade ability |
30° |
Operating weight |
10200kg |
Remark:ZL50 gearbox, Joystick control and heavy chassis for standard
3.Quality certificate:
(1)CE Approved.
(2)Obtained the certificate of ISO9001:2008.
(3)Manufacturing license number: TS2510025-2009.
4. Quotation:
YN939 Wheel Loader (Standard model with 1.8 m³, 3.0 ton Capacity, Deutz engine,ZL50 double-turbine hydraulic gearbox & torque converter, Joystick control, Large space articulated frame)
