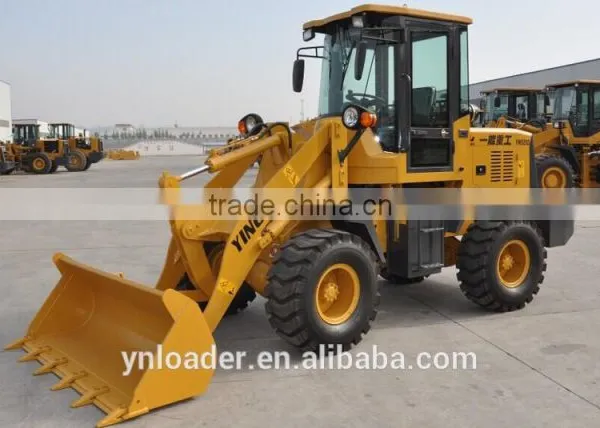

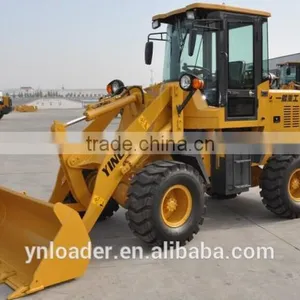

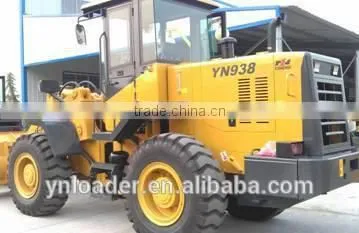

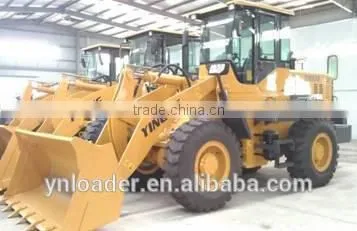

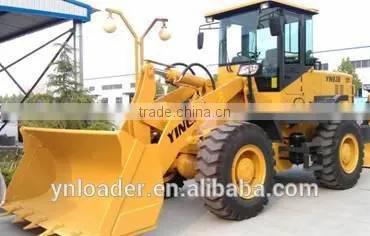

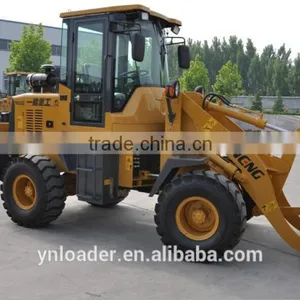

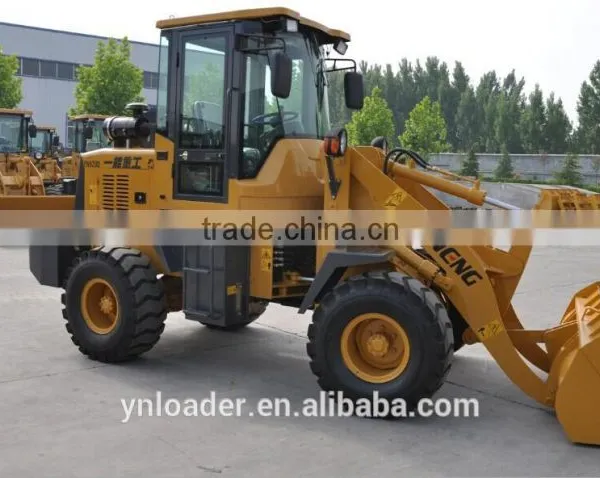

Help CenterWheel Loader OEM Supplier Mini Wheel Loader YN938 SHAN DONG Yineng Luneng Machinery LN YN CE APPROVED
Related Products
-
YN938 Chinese Newkomatsuwheel Loader Price for SaleNegotiableMOQ: 1 Set -
12 Year Power Plus Liugong OEM Supplier Mini Wheel Loader YN938 SHAN DONG Yineng Luneng Machinery LN YN CE APPROVEDNegotiableMOQ: 1 Set
-
Wheel Loader OEM Supplier Mini Wheel Loader YN935 SHAN DONG Yineng Luneng Machinery LN YN CE APPROVEDNegotiableMOQ: 1 Set
-
Taian Loader Luneng Machi Mini Wheel Loader YN935 SHAN DONG Yineng Luneng Machinery LN YN CE APPROVEDNegotiableMOQ: 1 Set
-
YN Yineng Heavy Industry Mini Wheel Loader YN935 SHAN DONG Yineng Luneng Machinery LN YN CE APPROVEDNegotiableMOQ: 1 Set
ISO9001:2008 certificate
Our workshop:
OEM of Liu Gong,Foton Lovol and Power Plus
YN 938 Common model:
1. Features:
* Weichai DEUTZ WP6G125E23 diesel engine, higher power and reliability
* Hydrodynamic transmission, three-element and single stage torque converter, high reliability, easy maintenance.
* Hangzhou Advance Gearbox Group BS428 power shift transmission, high efficiency and easy maintenance.
* Gear-shift controlled by flexible shaft makes operation more flexible and reliable.
* Single lever joystick control system, comfortable and flexible operation.
* Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
* Air over hydraulic disks on four wheel brakes.
* Large space articulated frames make operation and traveling stable.
* Working device with automatically leveling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
* Integral, luxury instrument board.
* New, luxury cabin
2.Main Specifications:
Item |
Specification |
Item |
Specification |
Bucket capacity |
1.8m³ |
Min. turning radius (outside of rear wheel) |
5160mm |
Rated load |
3000kg |
Steering angle |
36° |
Dumping height |
3000mm |
Min. ground clearance |
375mm |
Dumping reach |
1050mm |
Wheel base |
2850mm |
Boom lifting time |
5.5s |
Wheel tread |
1700mm |
Max. speed |
36km/h |
Rated power |
92kW/2300rpm |
Max. breakout force |
103kN |
Tyre |
17.5-25 |
Max. drawing force |
90kN |
Overall dimensions |
7020*2510*3230mm |
Max. grade ability |
30° |
Operating weight |
10500kg |
Remark:Joystick control and heavy chassis for standard
3. Quality certificate:
(1)CE Approved.
(2)Obtained the certificate of ISO9001:2008.
(3)Manufacturing license number: TS2510025-2009.
4. Quotation:
YN938 Wheel Loader (Standard model with 1.8 m³, 3.0 ton Capacity, Deutz engine, Hydrodynamic transmission, Joystick control, Large space articulated frame)
