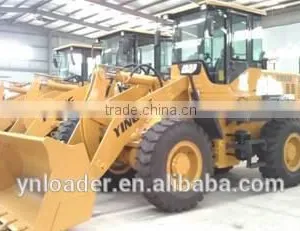

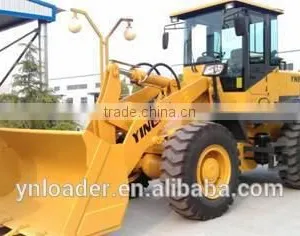

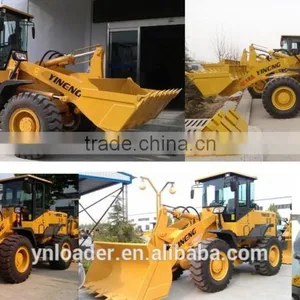

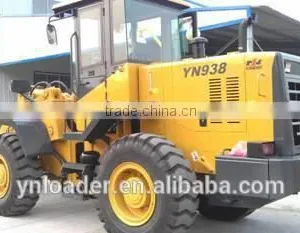

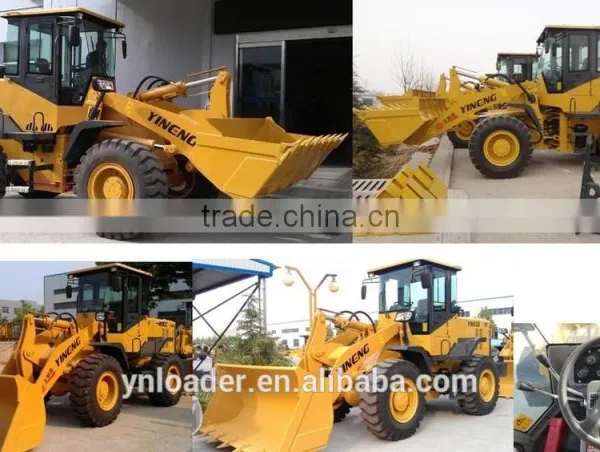

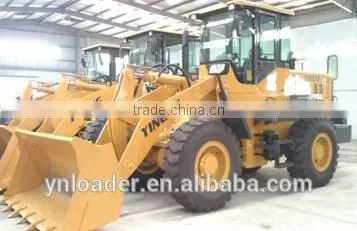

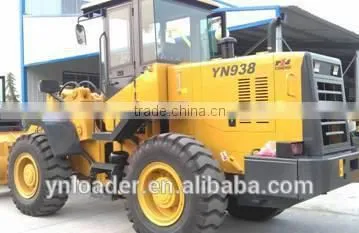

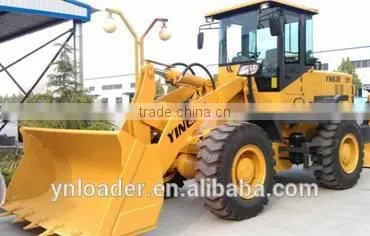

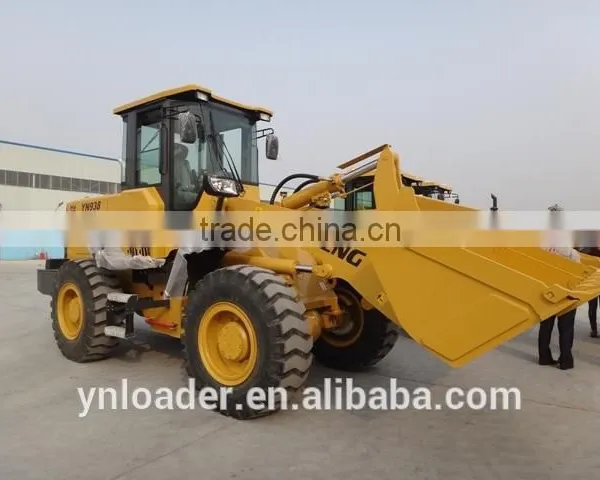

YN 938 Common model:
1. Features:
* Weichai DEUTZ WP6G125E23 diesel engine, higher power and reliability
* Hydrodynamic transmission, three-element and single stage torque converter, high reliability, easy maintenance.

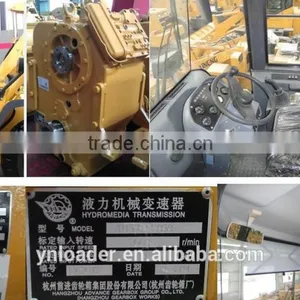

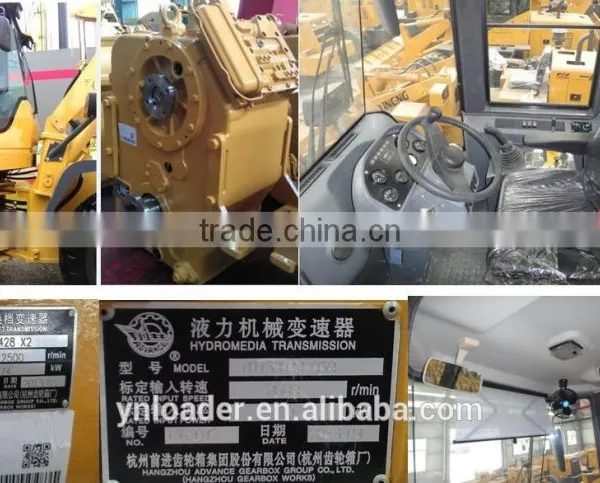

* Hangzhou Advance Gearbox Group BS428 power shift transmission, high efficiency and easy maintenance.
* Gear-shift controlled by flexible shaft makes operation more flexible and reliable.
* Single lever joystick control system, comfortable and flexible operation.
* Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
* Air over hydraulic disks on four wheel brakes.
* Large space articulated frames make operation and traveling stable.
* Working device with automatically leveling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
* Integral, luxury instrument board.
* New, luxury cabin
2.Main Specifications:
Item |
Specification |
Item |
Specification |
Bucket capacity |
1.8m³ |
Min. turning radius (outside of rear wheel) |
5160mm |
Rated load |
3000kg |
Steering angle |
36° |
Dumping height |
3000mm |
Min. ground clearance |
375mm |
Dumping reach |
1050mm |
Wheel base |
2850mm |
Boom lifting time |
5.5s |
Wheel tread |
1700mm |
Max. speed |
36km/h |
Rated power |
92kW/2300rpm |
Max. breakout force |
103kN |
Tyre |
17.5-25 |
Max. drawing force |
90kN |
Overall dimensions |
7020*2510*3230mm |
Max. grade ability |
30° |
Operating weight |
10500kg |
Remark:Joystick control and heavy chassis for standard
3. Quality certificate:
(1)CE Approved.
(2)Obtained the certificate of ISO9001:2008.
(3)Manufacturing license number: TS2510025-2009.
4. Quotation:
YN938 Wheel Loader (Standard model with 1.8 m³, 3.0 ton Capacity, Deutz engine, Hydrodynamic transmission, Joystick control, Large space articulated frame)
Shandong Yineng Heavy Industry Co.,Ltd (Taian Luneng Machinery Co.,Ltd) was found in 1999, is a collection of development and production as one of the engineering machinery manufacture enterprise. It is Situated at the foot of the world famous Mount.Tai, the main products are YN series wheel loaders, with more than 20 different models loaders in total. With 10000 units of annual production capacity, YINENG has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center. It also obtained the Special Equipment Production License and a member of China Machinery Council as well. The company expanded the scale in 2010 again and established Shandong Yineng Heavy Industry Co.,Ltd, It also has “Taian Yineng Hydraulic Co., Ltd ”, “Taian Luneng Import & Export Co., Ltd”, “Taian Luneng Trading Co., Ltd” and “Taian Luneng Frame Co., Ltd” as branches.
Always following the philosophy of “Prosper enterprise with super quality products; to create YINENG brand”, YINENG considers products quality as the life of enterprise and control the quality strictly to strive to fine products. Customers’ needs as the direction of products development and “to build the top brand of small loader” as striving target. YINENG has won wide market with excellent products, better service and reasonable price. YINENG products are not only popular in more than 20 domestic provinces and cities, but also exported to Kazakhstan, Indonesia, UAE, Saudi Arabia, Syria, Iran, Brazil, Venezuela, Nigeria, South Africa, Australia, etc.
Agent Supporting Services
Technical Guidance:
1. Provide the video for technical guidance
2. Factory send technician to agent country for technical guidance three times per year
3. Agent also could send technician to our factory to learn technology
Training Support: 1. Provide the video for training
2. Factory send technician to agent country for training three times per year
3. Agent also could send technician to our factory to learn technology
Marketing Support:Factory will provide any way to help the agent to promote, such as fair....
After-sale Service:
Factory provide one year or 2000 hours after sales service in worldwide, Agent shall provide local technicians and staffs to satisfy the management , operation and training of after sale service, and provide workshop, warehouse, office and other facilities to support a sustained after sale service.
Commission & Profits: Agent could get 3% to 10% commission according to the size of the profit.
