Fragmentation protective body armor
ISO9001:2008 certificate

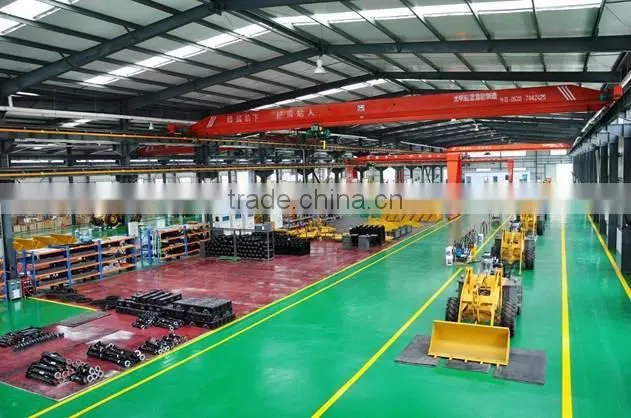

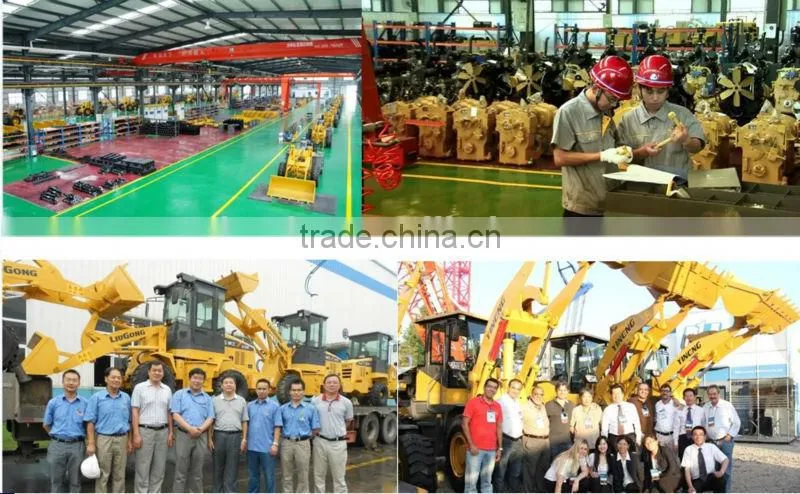

Our workshop:
OEM of Liu Gong,Foton Lovol and Power Plus

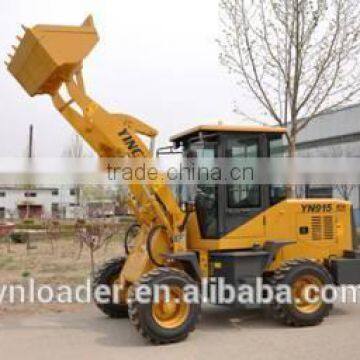

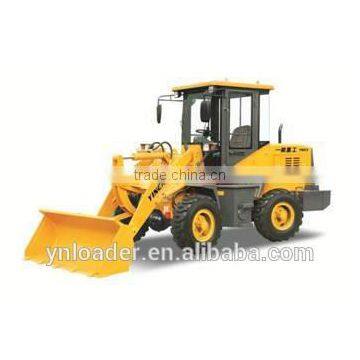

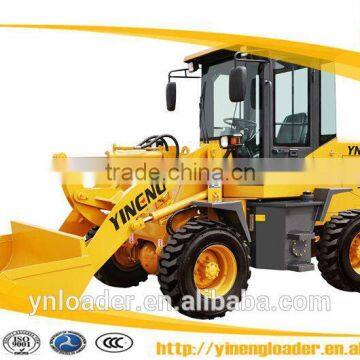

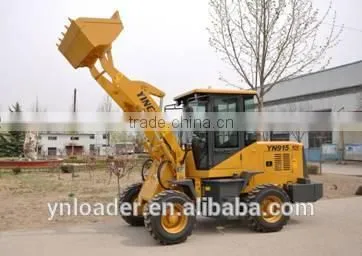

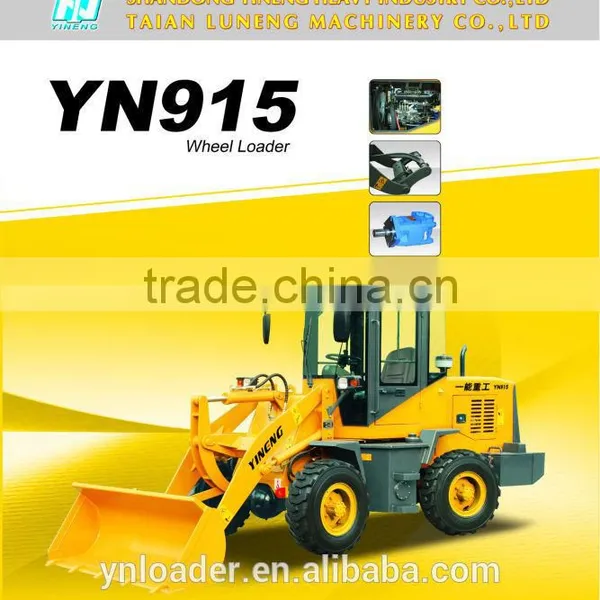

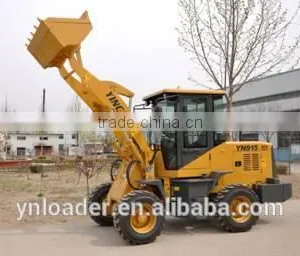

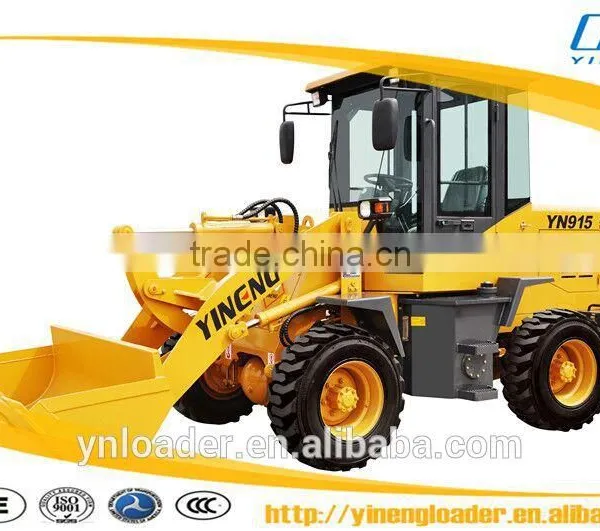

YN 915 Common model:
1. Features:
* Adopt Xinchai C490BG four cylinder engine;
* Full hydraulic transmission technology, simple structure and reliable performance;
* Split flow of single pump for working hydraulic system, significant effect of energy conservation;
* Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
* Load sensing fully hydraulic steering system, easy and flexible operation;
* Safe and reliable single pipeline brake system; Caliper disc brakes.
* Working device with automatically leveling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
* Integral, luxury instrument board.

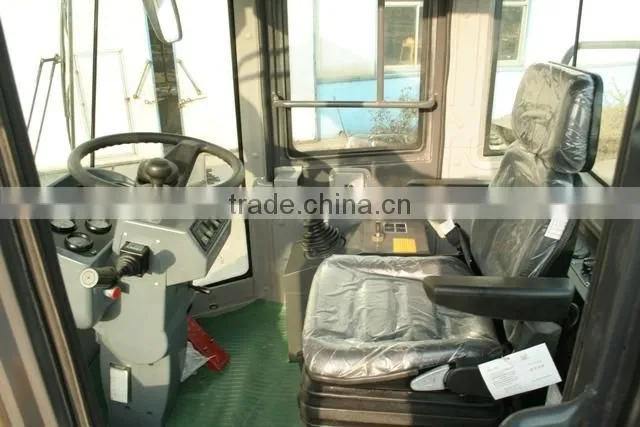

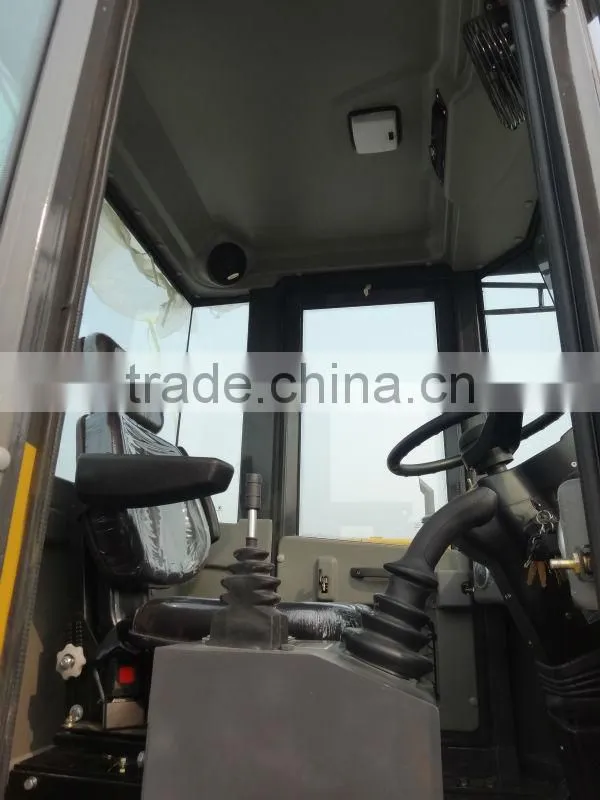

* New, luxury cabin.
2.Main Specifications:
Item | Specifications | Item | Specifications |
Bucket capacity | 0.5 m3 | Min. turning radius (outside of rear wheel) | 3600 mm |
Rated load | 1000 kg | Steering angle | 35º each direction |
Dumping height | 2420 mm | Min. ground clearance | 230 mm |
Dumping reach | 900 mm | Wheel base | 1820 mm |
Boom lifting time | 4 S | Wheel tread | 1400 mm |
Total cycling time | 8 S | Engine model | Xinchai C490BG |
Max. speed | 16 km/h | Rated power | 32 kW/2400 rpm |
Max. breakout force | 36 kN | Tire | 8.25-16 |
Max. drawing force | 22 kN | Overall dimensions | 4960*1620*2420 mm |
Max. grade ability | 28° | Operating weight | 3400kg |
3. Quality certificate:
(1)CE Approved.
(2)Obtained the certificate of ISO9001:2008.
(3)Manufacturing license number: TS2510025-2009.
4. Quotation:
YN915 Wheel Loader(with 0.5 cbm, 1.0 ton capacity, Chinese Xinchai C490BG engine)
Shandong Yineng Heavy Industry Co.,Ltd (Taian Luneng Machinery Co.,Ltd) was found in 1999, is a collection of development and production as one of the engineering machinery manufacture enterprise. It is Situated at the foot of the world famous Mount.Tai, the main products are YN series wheel loaders, with more than 20 different models loaders in total. With 10000 units of annual production capacity, YINENG has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center. It also obtained the Special Equipment Production License and a member of China Machinery Council as well. The company expanded the scale in 2010 again and established Shandong Yineng Heavy Industry Co.,Ltd, It also has “Taian Yineng Hydraulic Co., Ltd ”, “Taian Luneng Import & Export Co., Ltd”, “Taian Luneng Trading Co., Ltd” and “Taian Luneng Frame Co., Ltd” as branches.
Always following the philosophy of “Prosper enterprise with super quality products; to create YINENG brand”, YINENG considers products quality as the life of enterprise and control the quality strictly to strive to fine products. Customers’ needs as the direction of products development and “to build the top brand of small loader” as striving target. YINENG has won wide market with excellent products, better service and reasonable price. YINENG products are not only popular in more than 20 domestic provinces and cities, but also exported to Kazakhstan, Indonesia, UAE, Saudi Arabia, Syria, Iran, Brazil, Venezuela, Nigeria, South Africa, Australia, etc.
Agent Supporting Services
Technical Guidance:
1. Provide the video for technical guidance
2. Factory send technician to agent country for technical guidance three times per year
3. Agent also could send technician to our factory to learn technology
Training Support: 1. Provide the video for training
2. Factory send technician to agent country for training three times per year
3. Agent also could send technician to our factory to learn technology
Marketing Support:Factory will provide any way to help the agent to promote, such as fair....
After-sale Service:
Factory provide one year or 2000 hours after sales service in worldwide, Agent shall provide local technicians and staffs to satisfy the management , operation and training of after sale service, and provide workshop, warehouse, office and other facilities to support a sustained after sale service.
Commission & Profits: Agent could get 3% to 10% commission according to the size of the profit.
