Specifications
1.Pick corn, Smash the straw ,2.remove the cover of corn
3.Easy to operate
4.Good quality,High efficiency
5.ISO approved

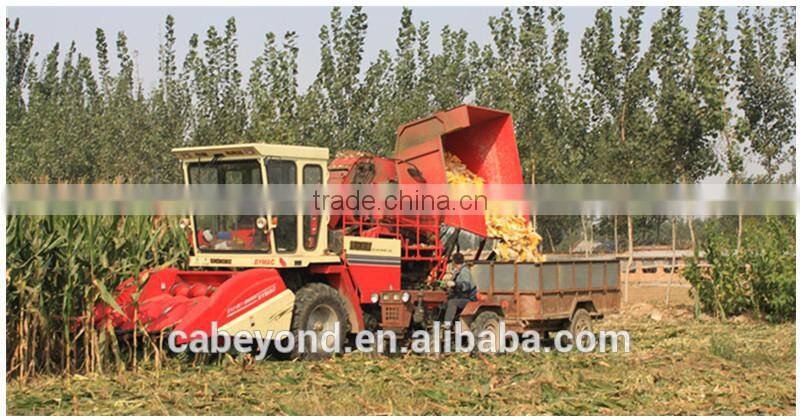

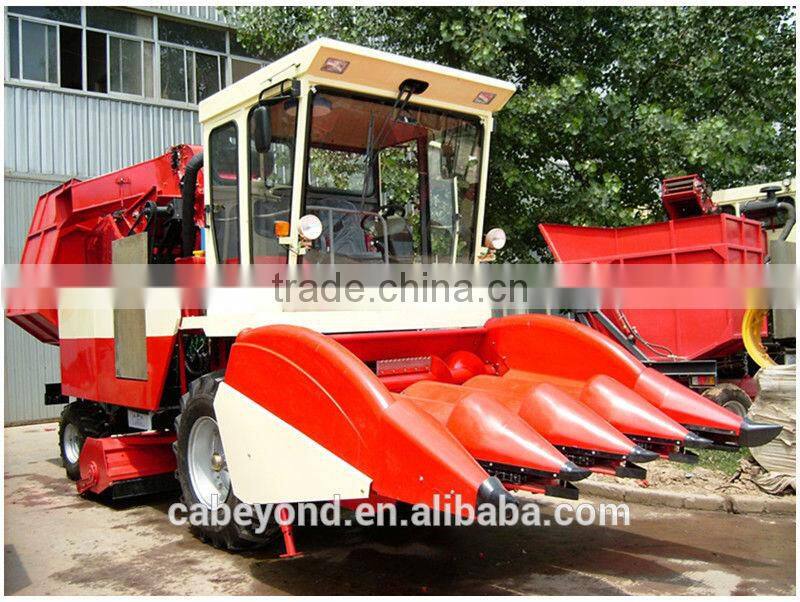

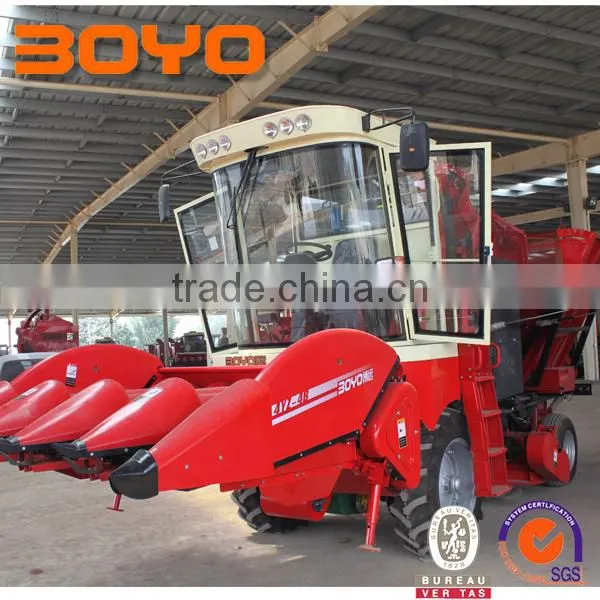

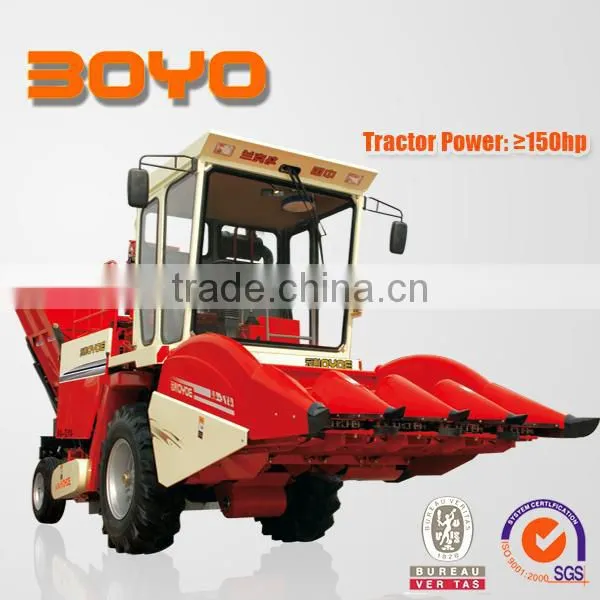

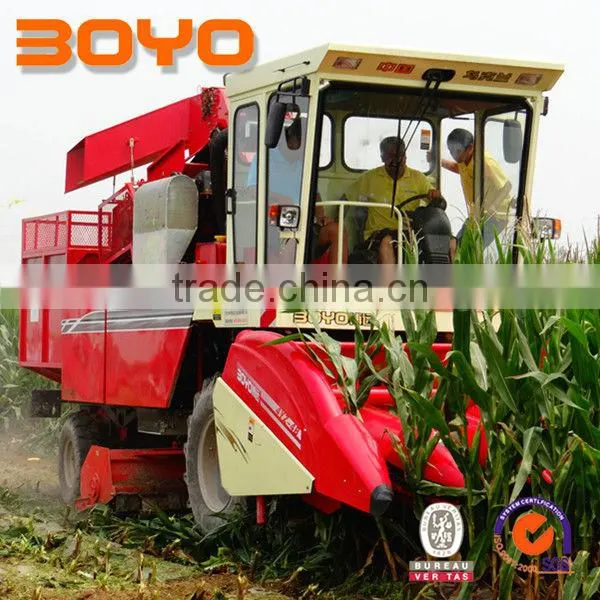

self-propelled mini corn combine harvester 4YZ-4B
1. Function:
- pick corns
- smash corn stalks
- return the smashed corn stalks to field
2. Features:
- Header: adopt advance technology of Ukraine. 14 years market test.
- Increased walking gear box.
- Brand-name and high-quality engine
- Air filter: increase pre-filter device
- Radiator: closed type, maintenance-free
- Reinforced rear axle
- Optimized and upgraded peeling machine
3. Technical Parameter;
Item |
Unit |
4YZ-4B(600) |
Structural style |
/ |
Self-propelled |
Harvesting rows |
row |
4 |
Header standard line spacing |
mm |
600 |
Working width |
mm |
2700 |
Suitable line spacing |
mm |
450-650 |
Mini ground clearance |
mm |
300 |
Driving wheel track |
mm |
1640 |
Steerable wheel track |
mm |
1640 |
Mini turning radius |
mm |
Left:8900,right:9500 |
The max height of driving pass |
mm |
3550 |
Engine |
model |
YC4A147L-T20 |
|
Rate speed(r/min) |
2300 |
|
Power (Kw/hp) |
108/147 |
Working speed |
Km/h |
3-6 |
Working efficiency |
ha/h |
0.4-0.9 |
Barn cubage |
M3 |
2.5 |
Oil consumption |
Kg/hm2 |
≤50 |
Unloading height |
mm |
2000 |
Type of stalk pulling roller |
/ |
Six edge type |
Peeling roller type |
/ |
Rubber roller,iron roller |
Fan |
Type |
Vane type |
|
Diameter |
390mm |
|
Quantity |
1 |
Type of chopper |
/ |
Horizontal Rotary cuter shaft,flail knife |
Type of gear box |
/ |
Mechanical |
Tyre |
Model |
Front:15-24;rear:10/75-15.3 |
|
Air pressure(kpa) |
Front:280;rear:400 |
I gear |
Km/h |
1.55-3.45 |
II gear |
Km/h |
3.43-7.61 |
III gear |
Km/h |
9.25-20.51 |
Reverse gear |
Km/h |
3.62-8.03 |
Grain loss rate |
/ |
≤2% |
Ear loss rete |
/ |
≤3% |
The seed broken rate |
/ |
≤1% |
Stubble height |
mm |
≤100 |
The peeling rate |
|
≥85% |
Reliability |
/ |
≥90% |
Whole weight |
kg |
6900 |
Overall dimension(L*W*H) |
mm |
8120x2750x3550 |
Pre-sale service
Quick response to customers' inquiry or online message
Guide customers to choose the best suitable machine model, offer detailed specification and competitive prices
Contract execution
Machine production will be arranged strictly according to the contract
Machines will be strictly inspected and tested before delivery
Strong enough packages to prevent possible damages during shipping
Send customs clearance documents by DHL
Keep customers to be informed of vessel location while shipping and get them prepared for customs clearance work
After-sale service
12 months warranty except for wear parts
Spare parts (except for wear parts) will be sent for free due to quality problems
Timely response to customers technical problems
