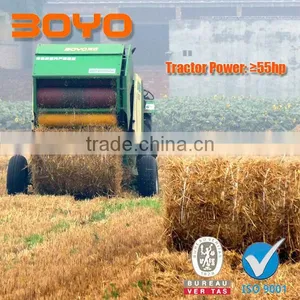

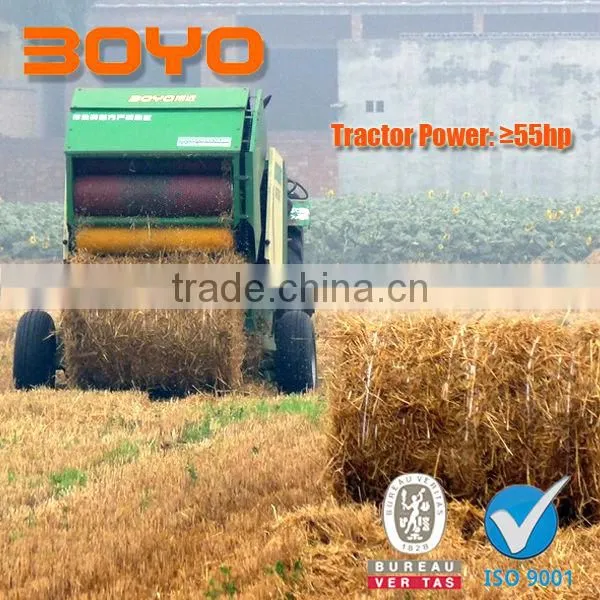

Agricultural baling machine for grass, alfalfa, wheat and rice straw

Specifications

1.agricultural baling machine
2.suitable for hey, wheat stalk
3.ISO Cert.
4.Factory direct sell
5.largest size in china





agricultural baling machine 92YG1.3

1. Structure of agricultural baling machine

Hydraulic control system, electric control system, mechanical transmission system, picking-up & rolling system and bunding system.

2. Applicable crops for agricultural baling machine

Grass, wheat stalks, rice stalks, alfalfa, soybean stalks and so on.

3. Features of agricultural baling machine

-Picking-up & feeding, rolling & compacting, bunding and bale-unloading all could be completed successivly during one operation.

-Resonable design, elaborate selecting parts, good quality and excellent performance

4. Technical Parameter:

Item	Unit	92YG 0.9	92YG 1.3	92YG 1.5
Overall dimension(L*W*H)	mm	3600x2330x2100	4600x2430x2430	4200x2330x2610
Whole weight	kg	1500	2000	2000
Matched power (roller tractor)	Kw/hp	≥28/(45)	≥40/(55)	≥40/(55)
Output axle rotation	R/min	540,720	540,720	540,720
Working speed	Km/h	3~5	3~5	3~5
Working efficiency	Bale/h	15~30	12~14	12~14
Pickup width	mm	1550	1600	1550
Knotter type	/	Mechanical arms	Mechanical arms	Mechanical arms
Pressing chamber width	mm	1230	1370	1230
Diameter of roller	mm	300	300	300
Quantity of roller	pc	11	15	17
Diameter of bale	mm	900	1300	1500
Length of bale	mm	1230	1370	1230
Weight of bale	kg	Stalk>72 hey>90	stalk>150 hey>250	stalk>150 hey>250
Rope type	/	flax rope, chemical fiber rope	flax rope, chemical fiber rope	flax rope, chemical fiber rope
Rope quantity of every bale	Kg/bale	Flax rope:0.08 chemical fiber rope: 0.04	Flax rope:0.125 chemical fiber rope: 0.078	Flax rope:0.125 chemical fiber rope: 0.078
Wheel base	mm	2040	2180	2040









  Each baler is put onto pallet, then into container. 1*20' container / 1set. 1* 40' High Container/sets.





Pre-sale service



24hours online to ensure quick response to customers' inquiry or online message
Guide customers to choose the best suitable machine model, offer detailed specification and competitive prices



Contract execution



Machine production will be arranged strictly according to the contract
Machine photos will be sent to you for reference and inspection during production
Machines will be strictly inspected and tested before delivery
Strong enough packages to prevent possible damages during shipping
Send customs clearance documents by DHL
Keep customers to be informed of vessel location while shipping and get them prepared for customs clearance work



After-sale service



12 months warranty except for wear parts
Spare parts (except for wear parts) will be sent for free due to quality problems
Timely response to customers technical problems
New products update for customers' reference



HEBEI SINO-AGRI BOYO AGRICULTURAL EQUIPMENT CO., LTD



Hebei Sino-agri BOYO Agricultural Equipment Co., Ltd (hereinafter referred to as BOYO) is a modern large agricultural enterprise who is engaged in reseaching and developing, manufacturing, selling and servicing agricultural equipment since 1991. Its register capital is RMB 50 million. The main products includes: Self-propelled combine corn harvester of 2 rows (3 rows / 4 rows / 5 rows), Self-propelled combine corn grain harvester of 6 rows, Silage harvester, Subsoiler machine, Round baler, and so on.

The new base of BOYO is located in ecnomic and technological development zone of Shijiazhuang. Owning modern assembly lines, electrophoretic coating lines of international level,

its annual production capacity is 30 thousand agricultural machinery. It is the largest agricultural machinery R&D and manufacturing base in Hebei province.

Welcome you to contact and visit BOYO!



1. 12 months warranty since machine arrives destination port



2. T/T (Telegraphic transfer) payment: 30% as deposit, 70% balance payment shall be paid before delivery



3. Delivery time: 20 working days after confirmation of deposit



4. Loading: 1*20GP/ 1set, 1*40HQ/3sets



5. Logo: can be customized and it is for free!



6. Technical service offered whenever you are in need
