Grass Baling Machine
1. Description
The Hey baler consists 5 systems including hydraulic control system, electric control system, mechanical transmission system, picking-up & rolling system and bunding system. It is suitable for grass, wheat stalks, rice stalks, alfalfa, soybean stalks and so on. Picking-up & feeding, rolling & compacting, bunding and bale-unloading all could be completed successivly during one operation. Due to resonable design, elaborate selecting parts, good quality and excellent performance, it is the ideal equipment for collecting crop stalks.
2. Technical parameter
Item | Unit | 92YG 0.9 | 92YG 1.3 | 92YG 1.5 |

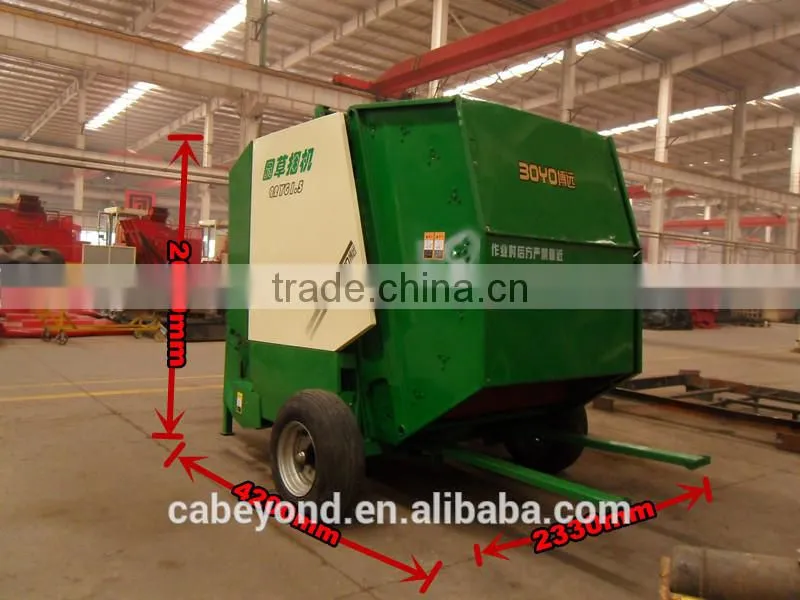

Overall dimension(L*W*H) | mm | 3600x2330x2100 | 4600x2430x2430 | 4200x2330x2610 |
Working width | mm | 1550 | 1600 | 1550 |
Whole weight | kg | 1500 | 2000 | 2000 |
Matched power (roller tractor) | Kw/hp | ≥28/(45) | ≥40/(55) | ≥40/(55) |
Working speed | Km/h | 3~5 | 3~5 | 3~5 |
Working efficiency | Bale/h | 15~30 | 12~14 | 12~14 |
Bale dimension | m | φ0.9x1.23 | φ1.3x1.4 | φ1.5x1.23 |
Bale weight | kg | Stalk>72 hey > 90 | stalk > 150 hey > 250 | stalk > 150 hey > 250 |
Rope type | Hemp rope (about 0.125kg/ bundle) Chemical fiber rope (about 0.78kg/ bundle) | |||

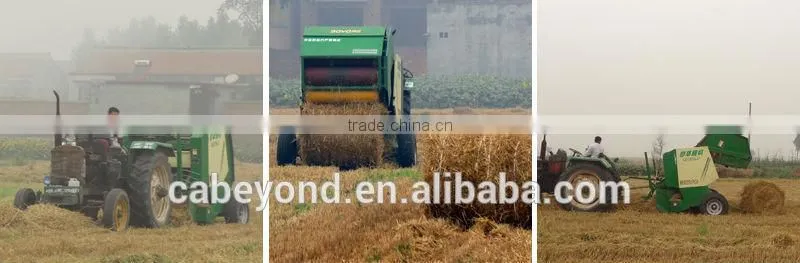

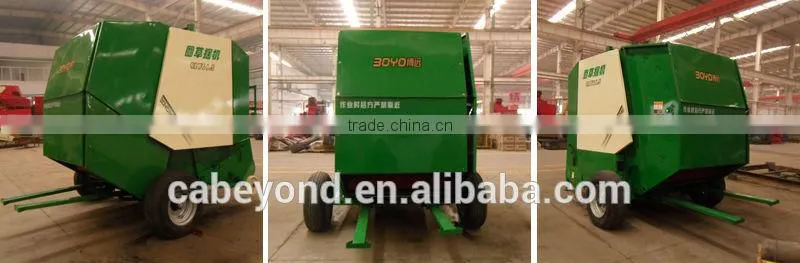

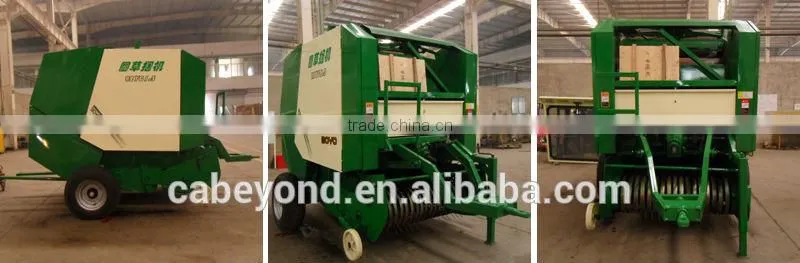

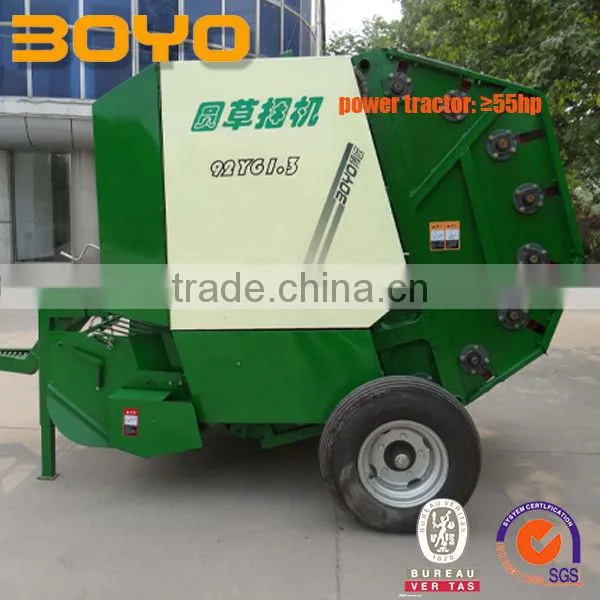

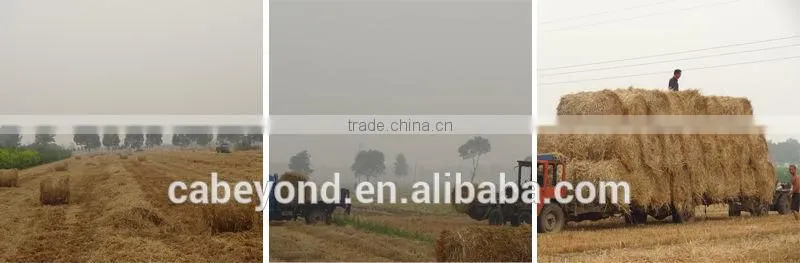

3. Pictures:
Pre-sale service
24hours online to ensure quick response to customers' inquiry or online message
Guide customers to choose the best suitable machine model, offer detailed specification and competitive prices
Contract execution
Machine production will be arranged strictly according to the contract
Machine photos will be sent to you for reference and inspection during production
Machines will be strictly inspected and tested before delivery
Strong enough packages to prevent possible damages during shipping
Send customs clearance documents by DHL
Keep customers to be informed of vessel location while shipping and get them prepared for customs clearance work
After-sale service
12 months warranty except for wear parts
Spare parts (except for wear parts) will be sent for free due to quality problems
Timely response to customers technical problems
New products update for customers' reference
HEBEI SINO-AGRI BOYO AGRICULTURAL EQUIPMENT CO., LTD
Hebei Sino-agri BOYO Agricultural Equipment Co., Ltd (hereinafter referred to as BOYO) is a modern large agricultural enterprise who is engaged in reseaching and developing, manufacturing, selling and servicing agricultural equipment since 1991. Its register capital is RMB 50 million. The main products includes: Self-propelled combine corn harvester of 2 rows (3 rows / 4 rows / 5 rows), Self-propelled combine corn grain harvester of 6 rows, Silage harvester, Subsoiler machine, Round baler, and so on.

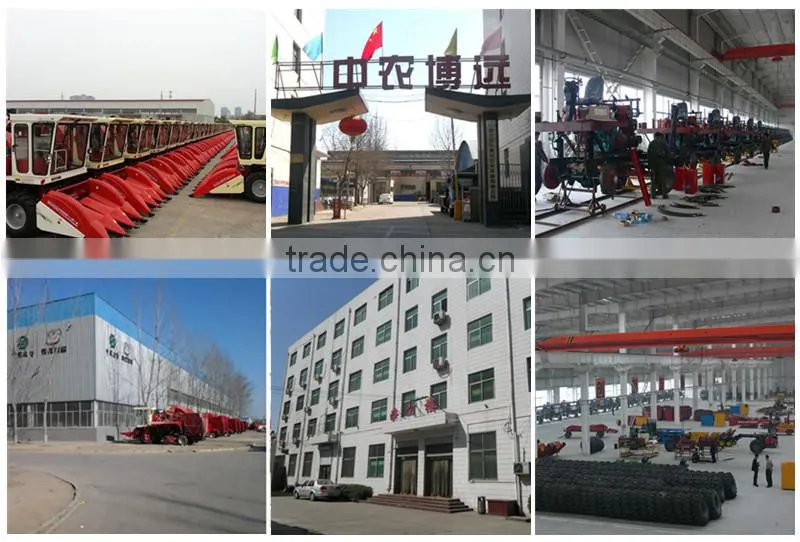

The new base of BOYO is located in ecnomic and technological development zone of Shijiazhuang. Owning modern assembly lines, electrophoretic coating lines of international level,
its annual production capacity is 30 thousand agricultural machinery. It is the largest agricultural machinery R&D and manufacturing base in Hebei province.
Welcome you to contact and visit BOYO!
1. 12 months warranty since machine arrives destination port
2. T/T (Telegraphic transfer) payment: 30% as deposit, 70% balance payment shall be paid before delivery
3. Delivery time: 20 working days after confirmation of deposit
4. Loading: 1*20GP/ 1set, 1*40HQ/3sets
5. Logo: can be customized and it is for free!
6. Technical service offered whenever you are in need
7. Contacts: Mrs. Jessie Feng
Tel: +86 311 88160276 Fax: +86 311 88102286
Tradmanager: cn1001256049 skype: jessie.feng6
