Why choose Chengyue?
Guangzhou Panyu Shawan Chengyue Machinery Factory is the leading manufacturer of recycling machines since 1995 with the advanced technology and excellent equipments. We have developed many kinds of recycling machines, including powerful press baling machine, crusher, plastic extractor, dewatering machine, dissolution foam machine and so on. These products are not only with the great appearance and perfect system functions, but also easy to operation and low power consumption. Due to the persistent effort of our teams and the support of our customers, our factory will strengthen steadily. In the meantime, we have won a great reputation from our customers depend on our firm determination, best quality and excellent after-service. And our products are very popular not only in China, but also in Japan, Australia, Mexico, America, Canada, Indonesia, Kuwait and so on. Believe Chengyue, we will progress and make a brighter future together.

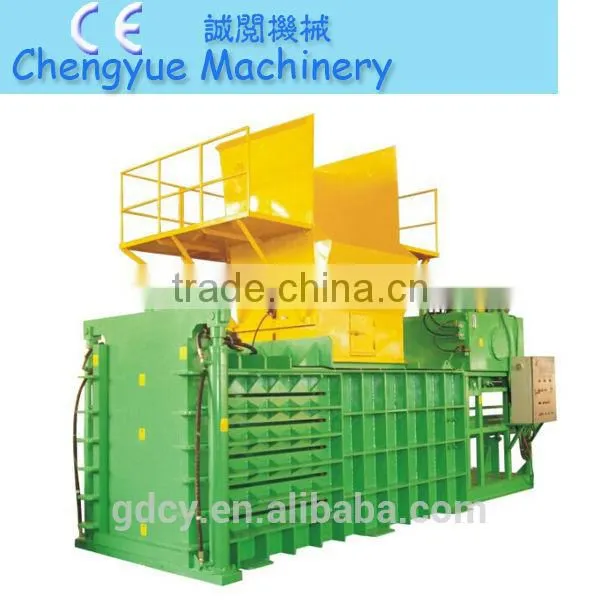

BYB-200Ton Semi-Automatic Baler uses hydraulic loop system and could choose manual or PLC automatic controller operation. It’s suitable for baling the incompact materials , especially plastic bottles and waste paper to recycle.
Main technical parameters:
1. Input & output
Raw material: waste paper, carton, PET bottle
Completed product: waste paper bale, carton bale, PET bottle bale
Output capacity: 3-4bale/hr.
2. Energy consumption
Electricity consumption:
Main power:37kw
Conveyor power:7.5kw
Cooling system:1.5kw
Qty. of labors: 1-2 persons
3. Basic Infrastructure
3.1 Electricity supply: 380V/50H,200V/50HZ,440V/60Hz,220V/60HZ(option)
3.2 One part of the conveyor(3.5meter long) need to put in the group(about 1.2meter deep)
3.3 Necessary lifting plants for loading and unloading machines during install nation and testing
Configuration for the Semi-Automatic Baler
Model |
BYB-200T |
Baler size |
(760-1800)*1300*930mm |
work pressure |
200Ton |
bale weight |
about 450kg-500kg |
main power |
44kw |
conveyor power |
8kw |
overall dimension |
7200*3020*2000mm |
total weight |
14000kg+5000kg(conveyor) |
electric panel |
Japanese appliance |
conveyor |
compose by iron plate |
size |
3.5meter in the ground |
oil tank capacity |
1530kg(68# hydraulic oil) |
cooling system |
air cooling |
Characteristic Features:
- BYB machine uses hydraulic loop system and could choose manual or PLC automatic controller operation.
- The max oil pressure is 21Mpa(210kg/cm2).
- The ground to placed the machine should be smooth.
- Active cutter(V style SKD-11 durable steel cutter).
- The dimension of feeding hooper and bale can be designed according to customers’ requirement.
Standard Accessories:
Working
Payment:
30% of total amount should be paid in advance, and the balance before delivery.
Certificate:
Welcome to our factory
Contact us please
Thanks for your reading!
