Specifications
Wood hammer mill:1.high efficiency
2.low noise
petitive price
4.low energy consumption
wood hammer mill supplier0086-13253603986
Introduction

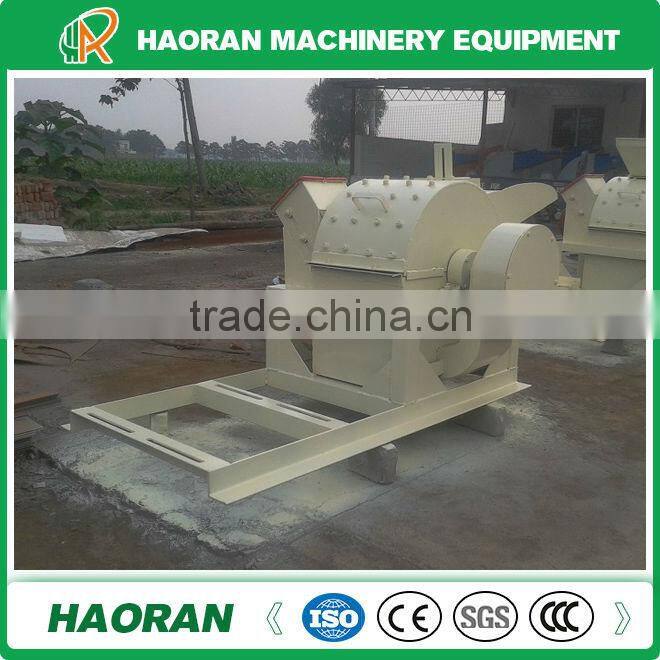

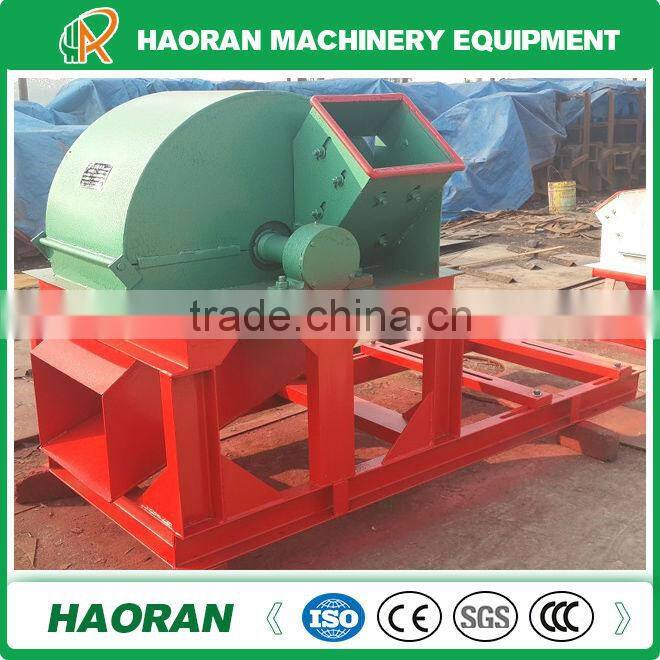

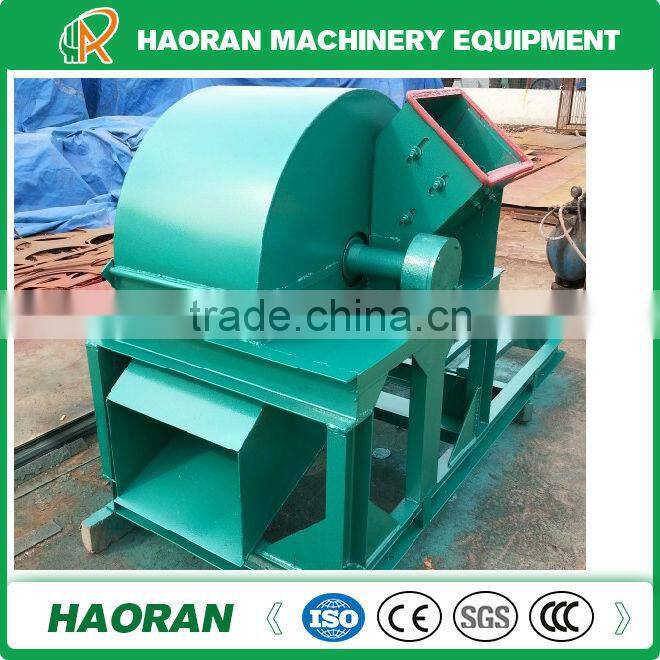

Wood sawdust hammer mill is a special equipment used for crushing wood materials.
It is developed according to the need of the industry production on the basis of year’s study and design. Because of the rational design,
compact structures, safe, durable, high production efficiency, it receives a good effect after the promotion.
The whole set equipment is driven by a motor.
Application
The wood sawdust hammer mill can be used in producing high quality wood charcoal stick with sawdust, wood chipes, branches,
crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, palm husk, soybeans husk,
tea waste, etc.
Working principle
It uses blades to cutting and high speed airflow to make the wood into sawdust and granular in different fineness.
While the blades inside are cutting with a high rotating speed, the rotor generates strong airflow which rotates at the same direction as
rotor. With the blades rotate and cut, the airflow crushes the material at the same time.
In this way, the speed of sawdust output can be increased.
Working principle
It uses blades to cutting and high speed airflow to make the wood into sawdust and granular in different fineness.
While the blades inside are cutting with a high rotating speed, the rotor generates strong airflow which rotates at the same direction
as rotor. With the blades rotate and cut, the airflow crushes the material at the same time.
In this way, the speed of sawdust output can be increased.
Model |
HR420 |
HR500 |
HR600 |
HR700 |
HR1000 |
Cutter Qty |
4 |
4 |
4 |
4 |
4 |
Feeding size |
170*150mm
|
200*170mm |
220*190mm
|
230*190mm
|
270*250mm
|
Cutter dia. |
420mm |
500mm |
600mm |
610mm |
750mm |
Cutter size |
90*60*8mm |
120*70*8mm |
150*70*8mm |
150*70*8mm
|
150*100*10mm
|
Output |
1t/h |
1.2t/h |
1.5t/h |
1.8t/h |
2-4t/h |
Spindle speed |
2600r/min |
2000r/min |
2000r/min |
2000r/min |
2000r/min |
Power |
7.5 KW |
15KW |
18.5KW |
30KW |
75+7.5KW |
Size |
1200*550*750mm
|
1500*640*820mm
|
1500*700*900mm
|
1850*830*1050mm |
2000*1870*1500mm
|
Picturers
