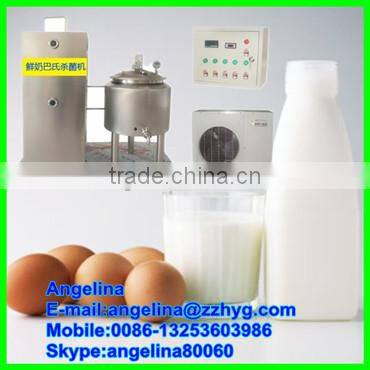

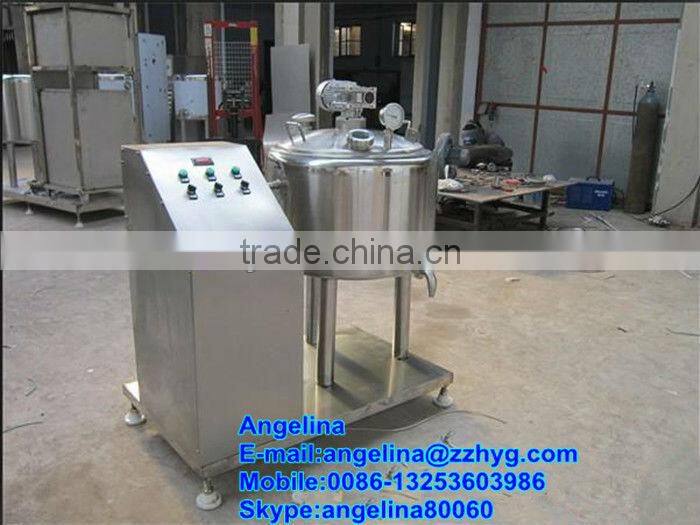

high quality small pasteurizer for milk for sale
Specification reference
1. Continuous production
2. Short heating time to provide high quality products
3. And centrifugal pumps or high pressure homogenizer used in tandem, a wide range of applications, suitable for high viscosity materials sterilization
4. The design of heat exchangers used with hot and cold material economic effect of the use of waste heat, so the steam consumption small
Technical parameter:
Model | HRPM100 | HRPM150 | HRPM300 | HRPM500 | HRPM1000 |
Internal diameter | 500mm | 640mm | 800mm | 1000mm | 1400mm |
Output | 100kg/time | 150kg | 300kg/time | 500kg/time | 1000kg/time |
Material | 304 stainless steel -2B | 304 stainless steel -2B | 304 stainless steel -2B | 304 stainless steel -2B | 304 stainless steel -2B |
Thickness | 1.5mm | 1.5mm | 2.0 mm | 2.0mm | 2.5mm |
Height | 1350mm | 1650mm | 2000mm | 2200mm | 2500mm |
Sterilization time | 10-30min(adjustable) | 10-30min(adjustable) | 5-90min(adjustable) | 5-90min(adjustable) | 5-90min(adjustable) |
Sterilization temperature | 65-90°C(adjustable) | 65-90°C(adjustable) | 65-90°C(adjustable) | 65-90°C(adjustable) | 65-90°C(adjustable) |
Rate of refrigeration compressor | 3kw | 5kw | 5-6kw | 8-10kw | 14-16kw |
Heat source | electric heating | electric heating | electric heating | electric heating | electric heating |
Warming | 25-35minute | 25-35minute | 25-90minute | 25-90minute | 25-90minute |
Power | 9kw | 13kw | 16kw | 24kw | 28kw |
Contour dimension (mm) | 1600*950*1350 | 1700*1000*1710 | 2000*1200*2000 | 2200*1350*2050 | 2500*1400*2100
|
