Home > Products > Construction Machinery > Small mobile clay hollow block making machine

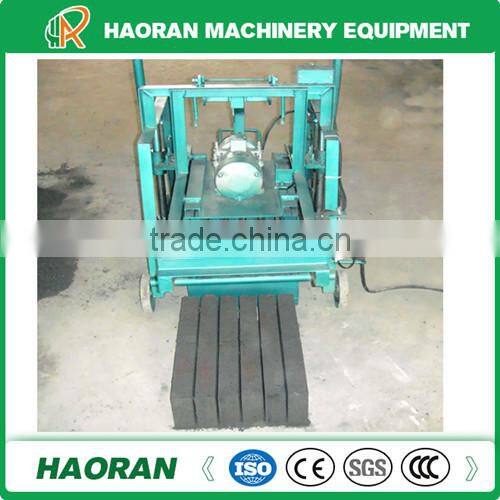

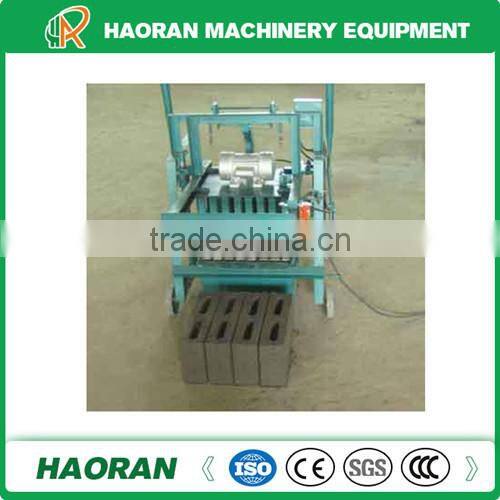

Small mobile clay hollow block making machine
- 50 Set / Sets per Month
- Qing Dao
- Credit Card PayPal
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cement |
Processing: | Brick Molding Machine | Automatic: | Other, Semi-automatic | Capacity: | 900-12600piece/day |
Place of Origin: | Henan, China | Brand Name: | HR | Model Number: | KXZ |
Voltage: | 220/380V | Power: | 1.1/3.7kw | Dimension(L*W*H): | 1100*880*1150mm |
Warranty: | 1 year | After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
clay hollow block making machine1.Small and mobile
2.No need Pallets,Easy to use
3.Semi-automatic,save labor
Small mobile clay hollow block making machine
Performance & characteristics of products
1. Humanity design pattern, easy to use, reliable performance and durable.
2. Integration of vibration table & fully synchronous vibration mode to achieve best vibration effect.
3. 2 oriented approach & extended wear guide sleeve to ensure precise motion of mould & pressure head
4. Mobile mode of production have reduced number of workers and workers’ labor intensities.
5. High yield, good product density.
6. Energy saving machine. Labor &power saving & low product cost, per brick saves about 2-5 cents.
Equipment superiority
1. This small sized block machine to meet the demand of many investors with small investment.
2. This machine is of simple and compact structure, convenient operation and easy maintenance.
3. It demands little manpower and investment, but makes high out-put and quick economic returns.
4. It is especially suitable to produce standard bricks, the strength of which is higher than that of clay bricks.

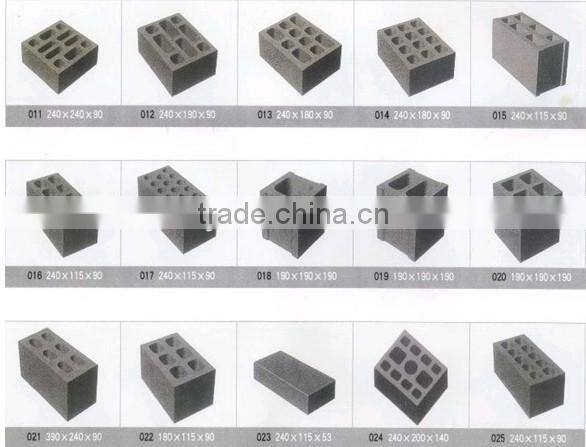

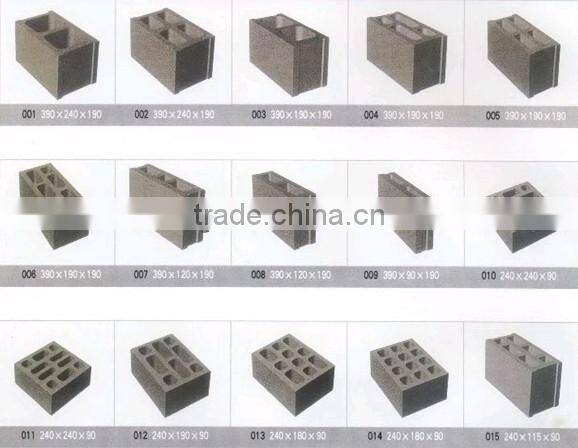

5. Various types of blocks can be produced with different molds.
Main technical parameters
Model | Voltage | Power | Pieces/Mould | Capacity | Molding Cycle |
KXZ-2 | 380/220v | 1.1kw | 2 | 900pieces | 30s |
KXZ-3 | 380/220v | 1.1kw | 3 | 1350pieces | 30s |
KXZ-4 | 380/220v | 1.1kw | 4 | 1800pieces | 30s |
KXZ-5 | 380/220v | 3.7kw | 5 | 3200pieces | 30s |
KXZ-6 | 380/220v | 1.1kw | 6 | 2700pieces | 30s |
KXZ-12 | 380/220v | 1.1kw | 12 | 5400pieces | 30s |
KXZ-28 | 380/220v | 3.7kw | 28 | 12600pieces | 30s |
Production conditions
1. No plant, only need about 100 square meters of ground leveling to produce.
2. Raw material requirements: all kinds of gravel, slag or slag, particle size not larger than 20 mm, sand, stone,
coal ash and so on all raw material containing impurities, shall not exceed 3% of the weight of the earth.
3. 380V power supply or 220V.
4(all kinds of raw materials through a forced mixer to uniformly mixed dry concrete can be used.)
Block moulds can be choosen or made by your order
If interesting,feel free to contact
Contact Us
- Zhengzhou Haoran Machinery Equipment Co., Ltd.
- Contact nameWitt Zhai
- Phone0086-371-67871188
- Addressxihuan road Zhengzhou,Henan
