Pneumatic Presses, Presses, Punching Power Press Machine JF21-25T

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangxi, China
Brand Name	Xiashi	Model Number	JF21-25T
After-sales Service Provided	Engineers available to service machinery overseas

JF21series open back press with dry clutch and shearing block protector

Welded body with steel plate and high intensity.

Main motor is made by Siemens.

Adopts combined pneumatic friction clutch and brake.

Cluster gear adopts the flooding oil lubrication.

Six-face rectangle lengthen guide.

Rigid pressing down style overload protector.

JF21-25/25B/45 adopts manual shut height adjustment,among these types JF21-25/45 adopts scale display and JF21-25B with digital display.

JF21-63 and above type adopts electric shut height adjustment with digital display.

JF21-45 can equip with die set height adjustment motor, the value will be displayed by digita.

JF21-25B,JF21-45 and above type equipped with lifting balance cylinder.

Duplex valves imported.

Adopt grease lubrication system.

Balancing cylinder adopts manual lubrication system.

Controlled by PLC with international brand.

Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.

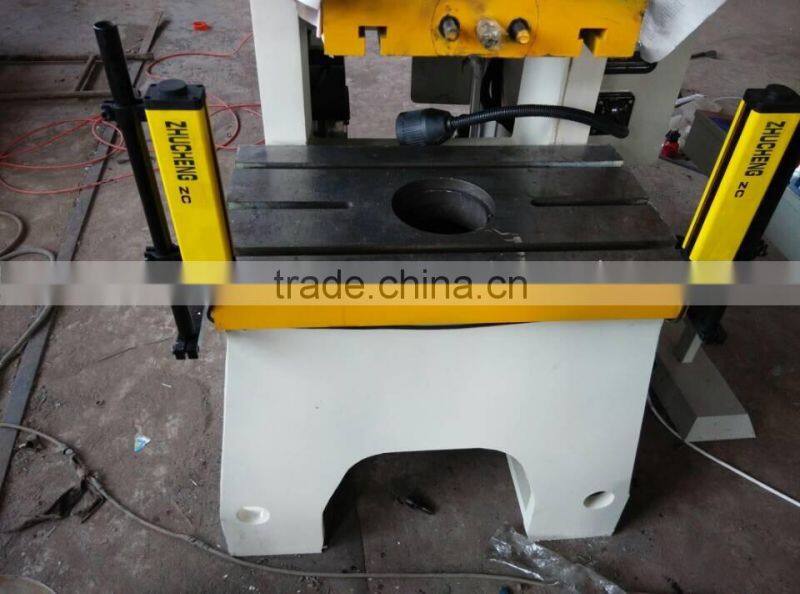

Equipped with optional air cushion device,automatic feed shaft and photoelectric protector,which can used to work with various automatic equipments.

Specification

			JF21-25B	JF21-25	JF21--45	JF21-63	JF21-80
Capacity		kN	250	250	450	630	800
Nominal Stroke		mm	3	3	4	4	5
Slide Stroke		mm	60	80	100	120	140
SPM	Fixed	min^-1	100	100	80	70	60
SPM	Variable	min^-1	80-120	80-120	70-90	60-80	50-70
Max. Die Height		mm	200	250	270	300	320
Die Height Adjustment		mm	50	50	60	80	80
Between Slide Center & Frame		mm	160	210	230	300	300
Bolster (FB×LR)		mm	300×680	400×700	440×810	580×900	580×1000
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.)		mm	130×260	φ170×20×φ150	φ180×30×φ160	φ200×40×φ180	φ200×40×φ180
Bolster Thickness		mm	70	80	110	110	120
Bolster Opening (Dia./ FB×LR)		mm	200	260	300	390	390
Bolster Opening (Dia./ FB×LR)		mm	270	250	300	460	520
Slide Area (FB×LR)		mm	270	250	340	400	420
Slide Area (FB×LR)		mm	330	360	410	480	560
Shank Hole (Dia.×Dpth)		mm	φ40	φ40	φ40	φ50	φ50
Shank Hole (Dia.×Dpth)		mm	60	60	60	80	80
Between Columns		mm	448	450	550	560	640
Main Motor Power		kW	3	3	5.5	5.5	7.5
Outline Size (FB×LR×H)		mm	1150×1050×2050	1300×1050×2050	1390×1125×2315	1580×1210×3320	1640×1280×2700
Net Weight		kg	2200	2600	3450	5400	7000

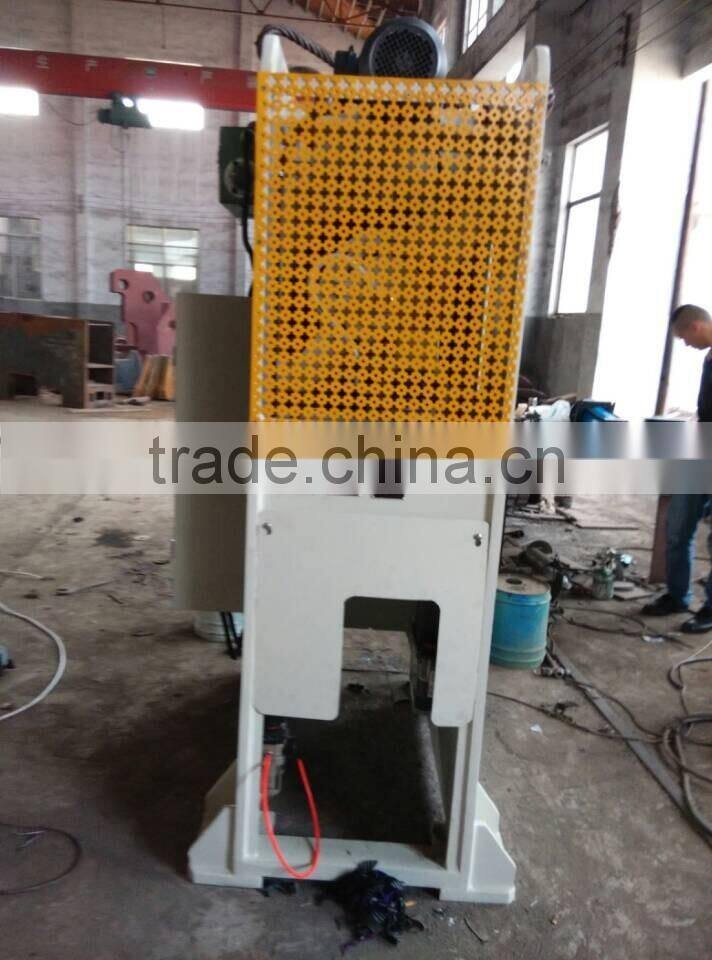

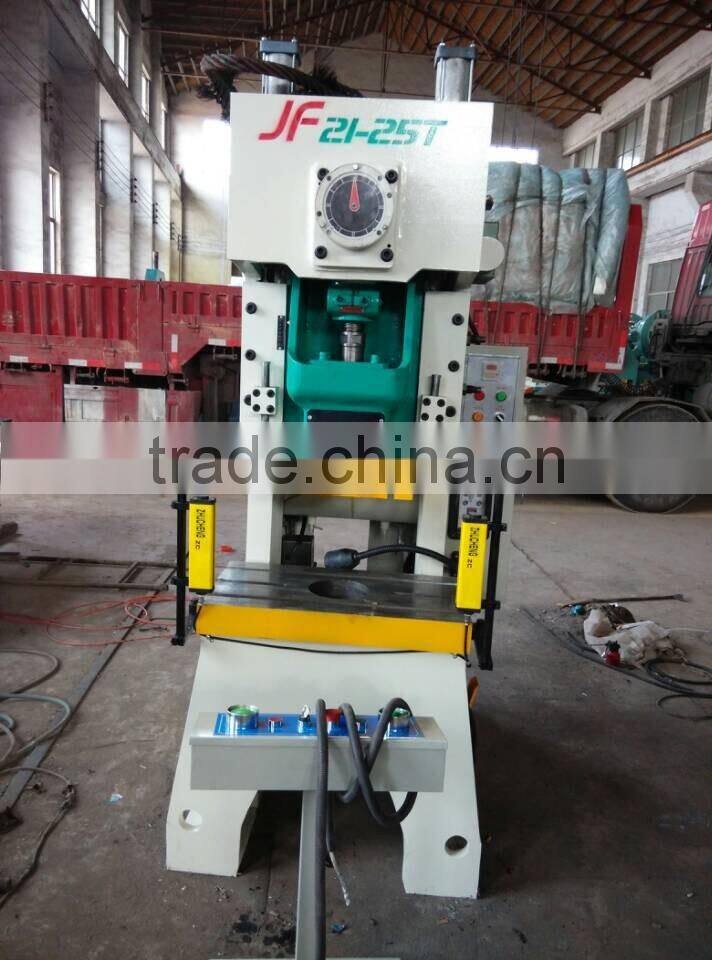

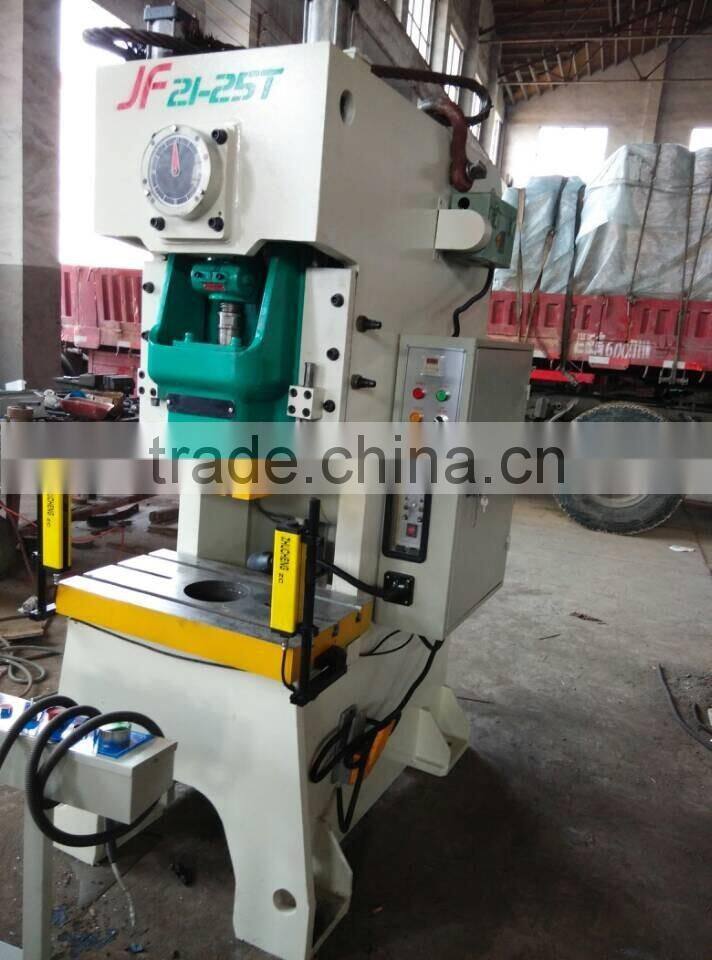

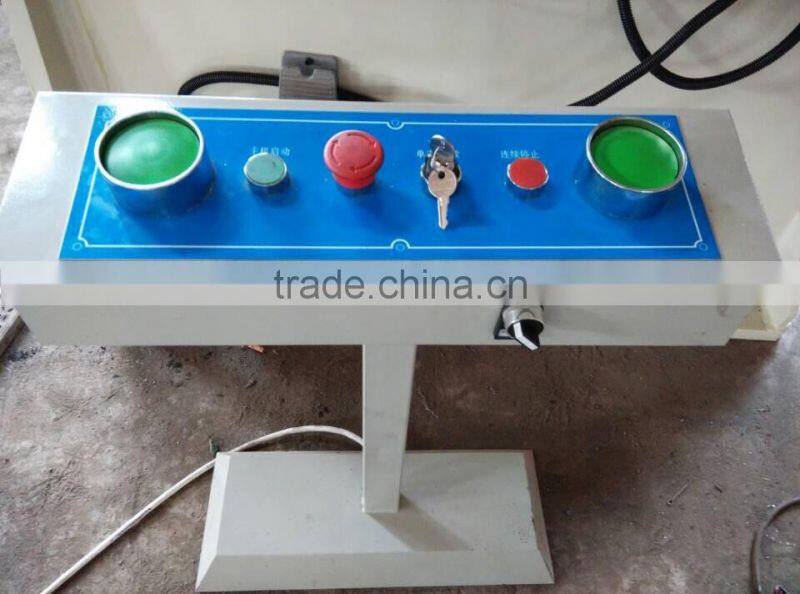

Pictures for your reference
