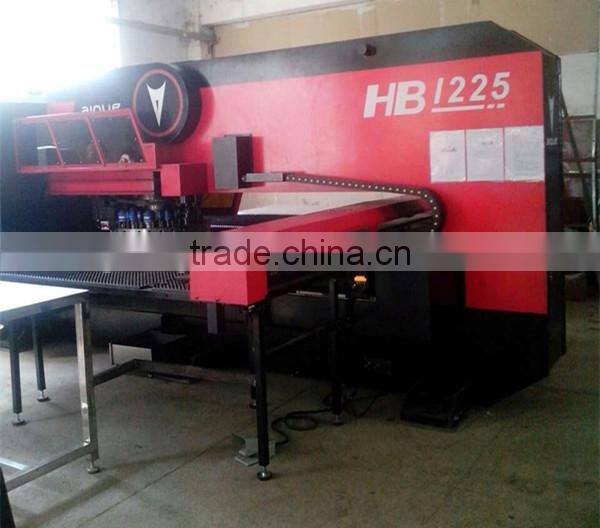

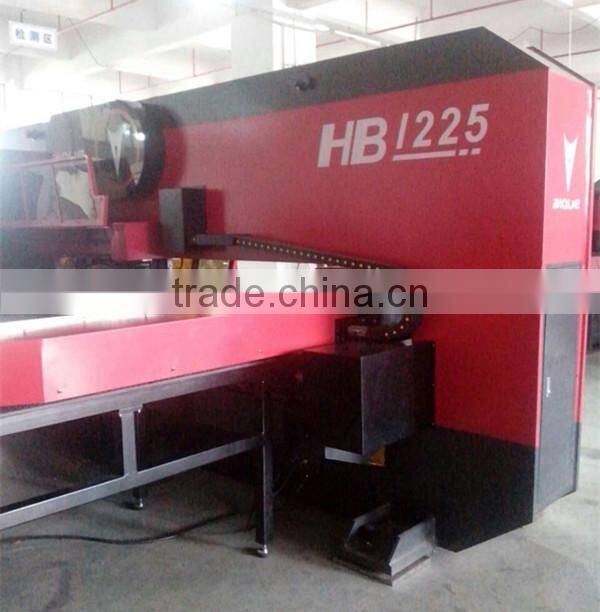

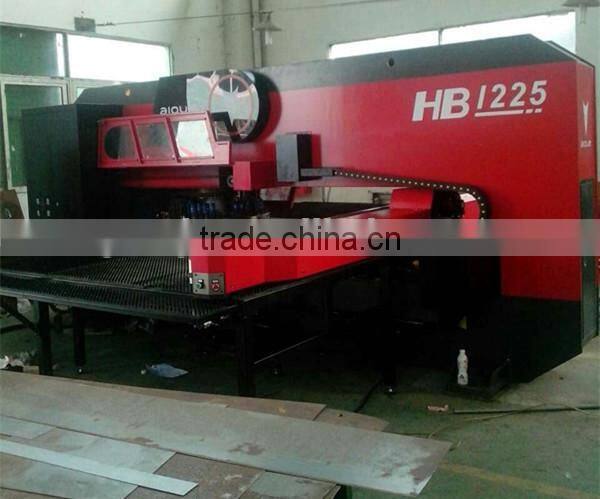

O-H Series CNC Turret Punch Press H1530-30

Excellent value for money.

Drawer platform,easy mold change.

Easy to use and easy to operate.

Automatic lubrication system,humane.

Appearance,structure and stability.

Easy maintenance(service:local,PRD).

Use of low cost(30 yuan/H,less than half

the cost of the hydraulic/H).

After-sales service,low prices,interest rates do not

earn do not earn service.

Good staff training,staff recruitment good.

Software displays real-time graphics processing progress.

Parameters / Model

H1225-20

H1225-30

H1530-20

H1530-30

Machine structure

Closed

Closed

Closed

Closed

Punch force

KN

200

300

200

300

Max sheet thickness

mm

6

6

6

6

Max sheet size(a fixture)

mm

1250*2500

1250*2500

1500*3000

1500*3000

Punching Accuracy

mm

±0.1

±0.1

±0.1

±0.1

Highest number of trips

h.p.m

200/280/320

200/280/320

200/260

200/260

Median mold

set

12/18/24/32

12/18/24/32

12/8/24/32

12/18/24/32

Dividing the median worker

set

--/1/2

--/1/2

--/1/2

--/1/2

CNC axes

piece

3/4

3/4

3/4

3/4

Machine weight

T

12

13

13

14

Overall dimensions

mm

4900*4700*2245

4900*4700*2245

4900*4700*2245

4900*4700*2245

Max.traveling speed

m/min

80

70

80

70

Turret rotation speed

rpm

30

30

30

30

Max.punching diameter

mm

φ88.9

φ88.9

φ88.9

φ88.9

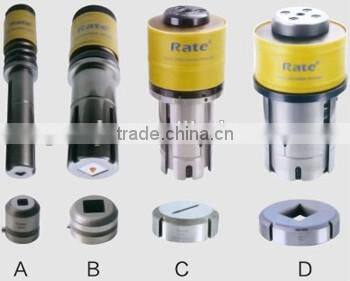

Number of stations

A

B

C

D

Rotating station number E

Φ3-12.7mm

≤Φ31.7mm

≤Φ50.87mm

≤Φ88.9mm

18

9

6

2

1

NO

24

12

8

2

2

NO

24

12

9

2

1

1+1

32

18

10

2

2

1+1

18Station

24Station

32Station

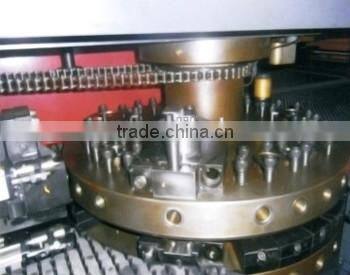

Ductile iron turret to ensure custoner ease of use.

Overall completion time processing turret to ensure accuracy.

Thick turret tooling guide is good,long mold life.

Independent sub-degree rotation can be more flexible use of different angles punching mold complex shaped workpieces.
