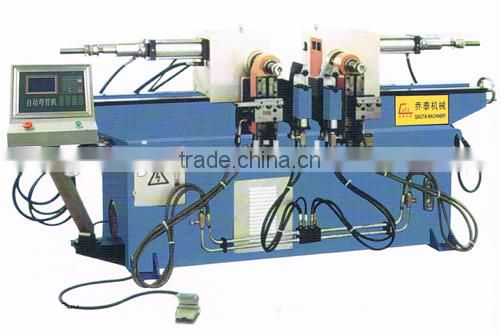

DW-38 Full Oil Hydraulic Automatic Double Head Pipe Bending Machine

Name: DW-38 Full Oil Hydraulic Automatic Double Head Pipe Bending Machine
Brand: XiaShi
SKU: 140991384
Availability: InStock

DW-38 Full Oil Hydraulic Automatic Double Head Pipe Bending Machine thumbnail-1

DW-38 Full Oil Hydraulic Automatic Double Head Pipe Bending Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangxi, China

Brand Name:

XiaShi

Model Number:

DW-38

Contact Supplier Request Quote Chat Now

Guangxi Xiashi Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangxi, China

Brand Name XiaShi

Model Number DW-38

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Feature

they are divided into standard type and rotating type depending on the different base

structure

standard type:it can do a two dimensional rotation, double head can be arbitrarily adjusted in O-90°

rotating type:it can not do a two dimensional rotation, but double head can be arbitrarily

adjusted in O-90°

Bending angle from 0-185 degrees, but must consider taking material problem.

Adopting LC control, easy to operate and maintain.

Can be divided into total recycle, semi-circle, select Options.

Technical parameter

Model	DW-32	DW-38
oil pressure motor power	5HP	7.5HP
Maximum oil pressure pressure	100kg/cm²	140kg/cm²
Maximum applicable pipe	Φ32x1.6m/mt	Φ38x1.8m/mt
Applicable bend radius	26-150m/m	38-200m/m
Center range of Double bend	90-700m/m	170-1450m/m
Max. bending angle	180°	185°
Max.number of processing	Φ25x1tube	Φ25x2tube
Machine overall dimensions	200x75x130cm	380x85x160cm
Machine weight	1200kgs	1500kgs

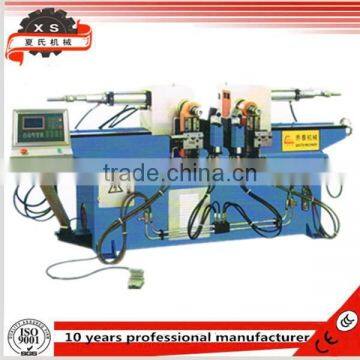

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
