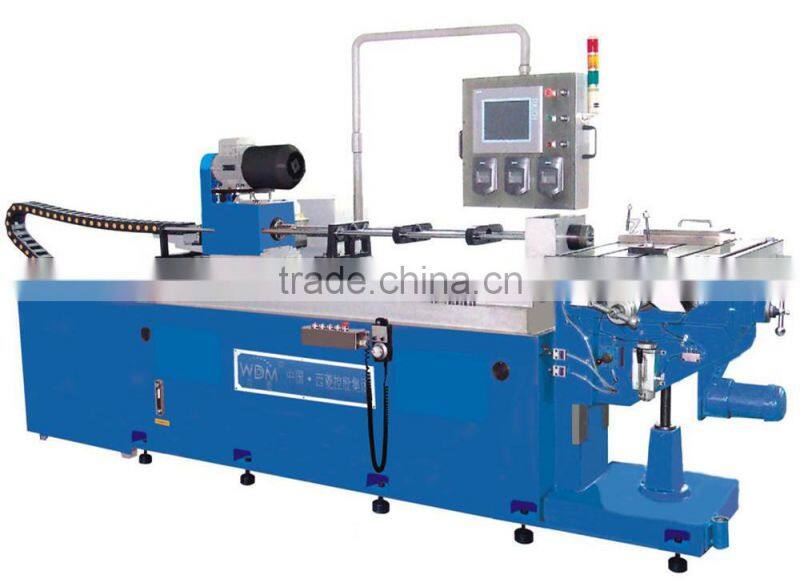

CNC Deep Hole Drilling Machine (gun Drilling Machine)ZK2162

Name: CNC Deep Hole Drilling Machine (gun Drilling Machine)ZK2162
Brand: XiaShi
SKU: 140991200
Availability: InStock

Guangxi Xiashi Machinery Equipment Co., Ltd.

CNC Deep Hole Drilling Machine (gun Drilling Machine)ZK2162 thumbnail-1

CNC Deep Hole Drilling Machine (gun Drilling Machine)ZK2162 photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Drilling Speed:

0-2800r/min

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Drilling Speed 0-2800r/min

Place of Origin Zhejiang, China

Brand Name XiaShi

Model Number ZK2162

Voltage 380v/50Hz

Power(W) 8kW

Dimension(L*W*H) 3000*1200mm

Weight 2500kg

Certification CE,ISO

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Characters

Equipped with SIEMENS PLC NC system,and the FANUC Oi mate-TC system or HNC

system can be provided on customer’s order.

Driven by A.C servo motor,transmitted by ball screw.

Adoptting guideway conglutinated plastic,smooth running in low speed,without creeping.

Spindle of drilling box is driven by vary speed motor,stepless

Spindle bearing and guideway surface adopt automatic intermittent lubrication

Technical parameter

Model		ZK2162	ZK21103
Capacity	Number of drill spindle	1 axis	1 axis
	Range of drilling dia.	2-25mm	2-30mm
	Max.depth of drilling	650mm	1000mm
	Y-axis travel	/	450mm
	Z-axis travel	/	350mm
Drive motor	Main motor	3kw	4kw
	Longitudinal feeds	1kw	1.5kw
	Cross slide travel	Manual	Manual
	Scrap iron vent motor	0.06kw	0.06kw
	Workpiece driven motor	0.1kw	0.1kw
	Coolant pump rating	3.7kw	3.7kw
	Machine power rating	8kw	10kw
Speed	Spindle speed	0-2800r/min	0-5000r/min
Speed	Workpiece speed	0-100r/min	0-100r/min
Hydraulic system	Coolant pump pressure	175kg/cm²	175kg/cm²
	Pump output	40.5L/min	40.5L/min
	Coolant tank capacity	385L	800L
Machine size and weight	Floor space(L×W)	3000×1200mm	3800×1500mm
Machine size and weight	Machine weight	2500kg	3000kg

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
