Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > GMC1630 CNC Gantry Milling Machine, Gantry Type Machine Center

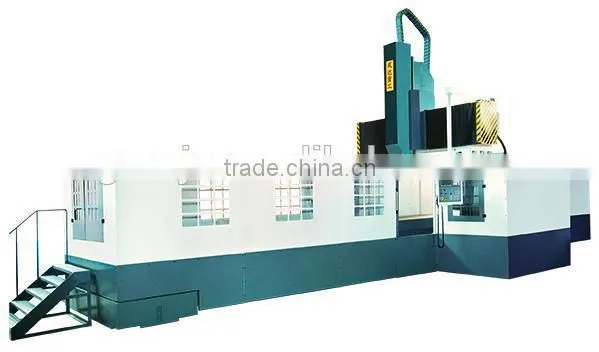

GMC1630 CNC Gantry Milling Machine, Gantry Type Machine Center

Name: GMC1630 CNC Gantry Milling Machine, Gantry Type Machine Center
Brand: xiashi
SKU: 140991208
Availability: InStock

Guangxi Xiashi Machinery Equipment Co., Ltd.

GMC1630 CNC Gantry Milling Machine, Gantry Type Machine Center thumbnail-1

GMC1630 CNC Gantry Milling Machine, Gantry Type Machine Center photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Guangxi, China

Brand Name:

xiashi

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Guangxi, China

Brand Name xiashi

Model Number GMC1630

Type Universal

CNC or Not Normal

Voltage 380v

Power(W) 15/18.5KW

Dimension(L*W*H) 9130*5100*4600mm

Weight 33000kg

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Specification

1.Cnc portal milling machine GMC1630 is a kind of gantry type machine center.

2.The machine is with good rigidity, strong vibration resistance and precision retaining ability

3.X,Y axis is linear roller guideway,Z axis is box guideway.

4.Spindle is Taiwan unit spindle 8000rpm, highest speed 3200rpm.

Technical parameter

Specifications	Units	GMC1630A
X-axis travel	mm	3200
Y-axis travel	mm	2000
Z-axis travel	mm	1000
Horizontal milling head transverse travel(V)	mm	500
Horizontal milling head vertical travel(W)	mm	500
Worktable size(L×W)	mm	3000×1600
Max. load of worktable	kg	8000
Number of T-slot/Width of T-slot	qty/mm	7/28H8
Gantry width	mm	2100
Spindle taper(Horizontal/Vertical)		BT50
Spindle speed range	rpm	10-3200
Distance from spindle nose to worktable surface	mm	200-1200
Distance from horizontal spindle axis to worktable surface	mm	0-500
X,Y axis Feed speed	mm/min	1-4000
Z,V,W axis Feed speed	mm/min	1-2000
Rapid feed X,Y axis	mm/min	12000
Rapid feed Z,V,W axis	mm/min	8000
Spindle motor power (Horizontal/Vertical)	kW	15/18.5
Positioning accuracy X,Y,Z,V,W axis	mm	0 .032,0.028,0.022,0.02,0.02
Repeat positioning accuracy X,Y,Z,V,W axis	mm	0.015,0.014,0.012,0.01,0.01
Overall dimension	mm	9130×5100×4600
Machine weight	kg	33000

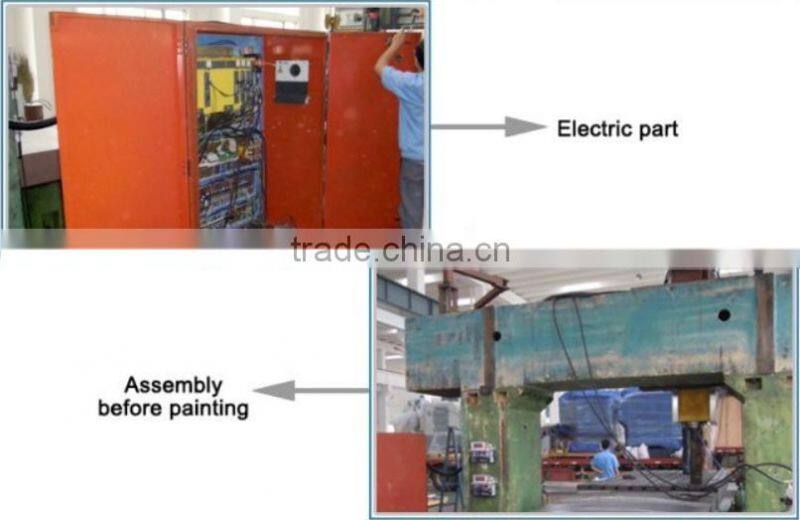

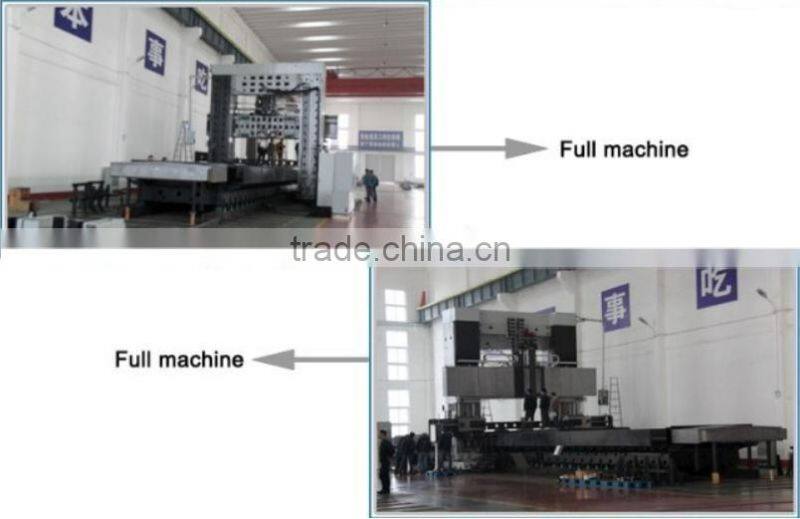

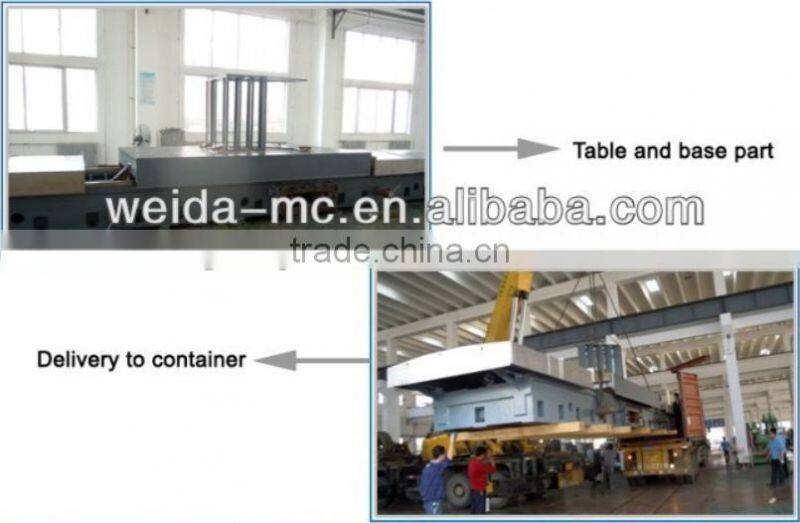

Picture details

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
