DK7750 edm wire cutting machine price
Features
1.Linear rail, Four axes independent UV work,
2.Work pieces to 600mm thick.
3.Taper angle up to ± 30°.
4.Small wire diameters 0.12- 0.22 mm (down to 0 .08mm).
5.Accuracy: 0.01mm, even 0.005mm.
6.Roughness: Ra 0.8~1.6 µm
7.Low consumption, material saving.
8.Closed loop glass scales on all four axes for positional accuracy of 0.005mm.
9.Advanced CAD/CAM software with file transfer and translation capabilities.
10.Control system with luxury cabinet. ( HL, HF, W-Cut, A-Cut) .
11. Enclosed cover for protection.
Optional:
Taper cutting accessory. (± 15°, ± 30°.)
Specification
| Model | DK7720 | DK7725 | DK7732(35) | DK7740(45) | DK7740J | DK7750 | DK7750J |
|---|---|---|---|---|---|---|---|
| Working Table size (mm) | 490*380 | 580*400 | 700*440 | 780*540 | 1000*540 | 1000*650 | 1140*650 |
| Stroke(X/Y/)(mm) | 250*200 | 320*250 | 400*320 | 500*400 | 630*400 | 630*500 | 800*500 |
| Max.Z axis travel(mm) | 350 | 350 | 400 | 400 | 400 | 600 | 600 |
| Cutting angle(°/80mm) | 6° | 6° | 6° 15° | 6° 15° 30° | 6° 15° 30° | 6° 15° 30° | 6° 15° 30° |
| Max.cutting speed(mm²/min) | ≥90(High speed≥140) | ||||||
| Optimum roughness(m) | ≤2.5(Medium speed≤1.0) | ||||||
| Dia. of molybdenum wire(mm) | 0.1-0.3( recommend 0.18) | ||||||
| Molybdenum wire moving speed(m/s) | 11.5 | ||||||
| Working coolant | DX-1, DX-4, NG-1 | ||||||
| Process accuracy (mm) | 0.01-0.015 | ||||||
| Feeding Pulse equivalent (mm) | 0.001 | ||||||
| Power supply | single phase, 220V/50Hz, three phase, 380V/50Hz | ||||||
| Power consumption( Kw) | <1.0 | ||||||
| piece weight(kg) | 200 | 250 | 300 | 450 | 450 | 700 | 700 |
| Weight(kg) | 800 | 900 | 1200 | 1350 | 1400 | 2100 | 2300 |
| Dimension(m) | 1.2*0.9*1.3 | 1.3*1.2*1.4 | 1.3*1.2*1.4 | 1.6*1.3*1.5 | 1.6*1.3*1.5 | 1.8*1.6*1.7 | 1.8*1.6*1.7 |
| Packing size(m) | 1.3*0.9*1.4 | 1.4*1.2*1.5 | 1.6*1.3*1.7 | 1.9*1.4*1.8 | 1.9*1.4*1.8 | 1.9*1.6*2.1 | 1.9*1.6*2.1 |

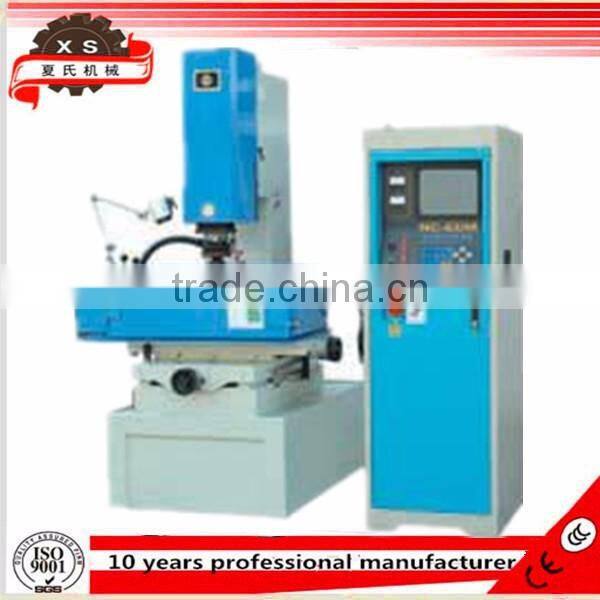

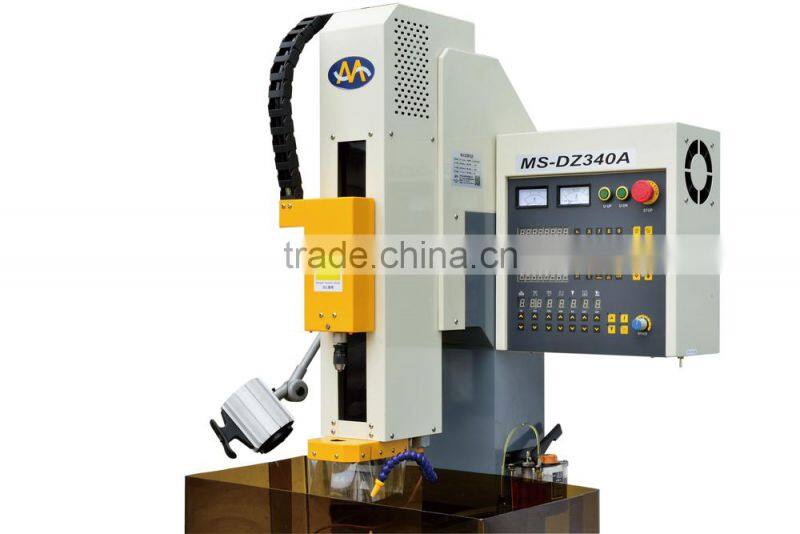

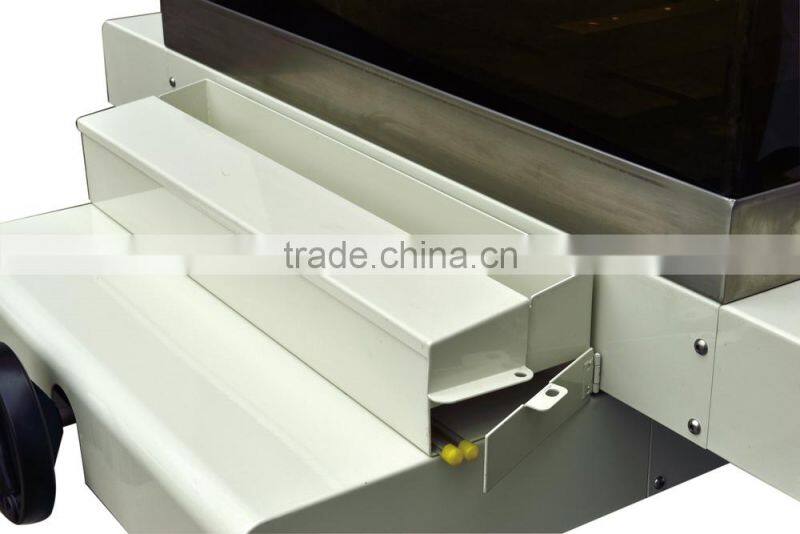

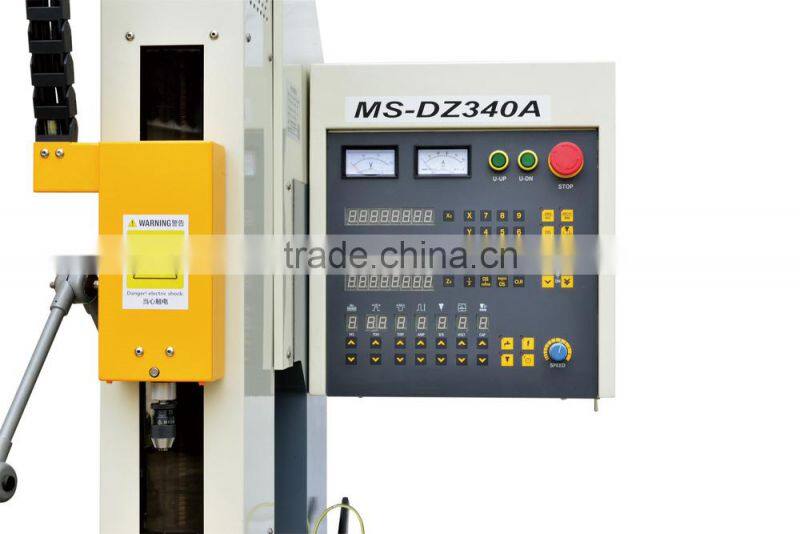

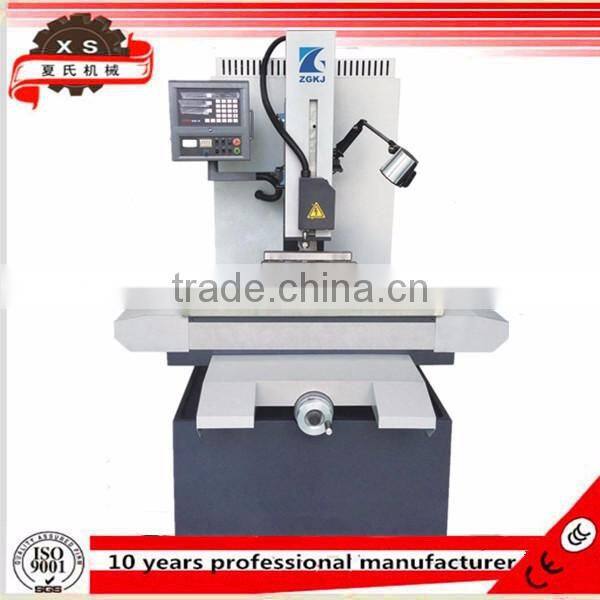

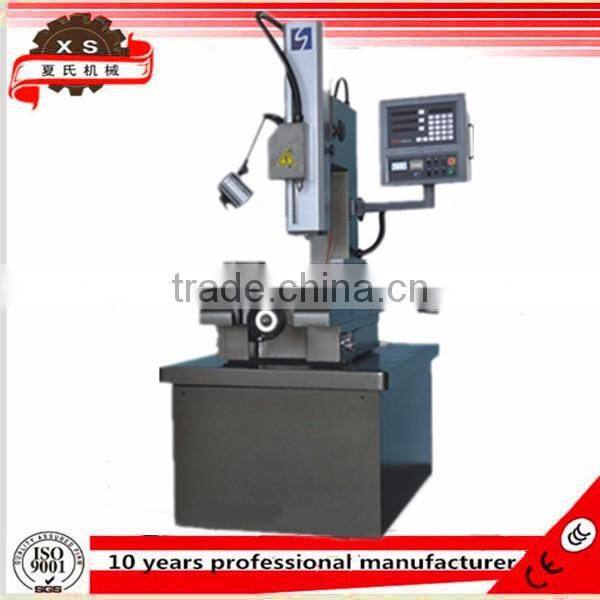

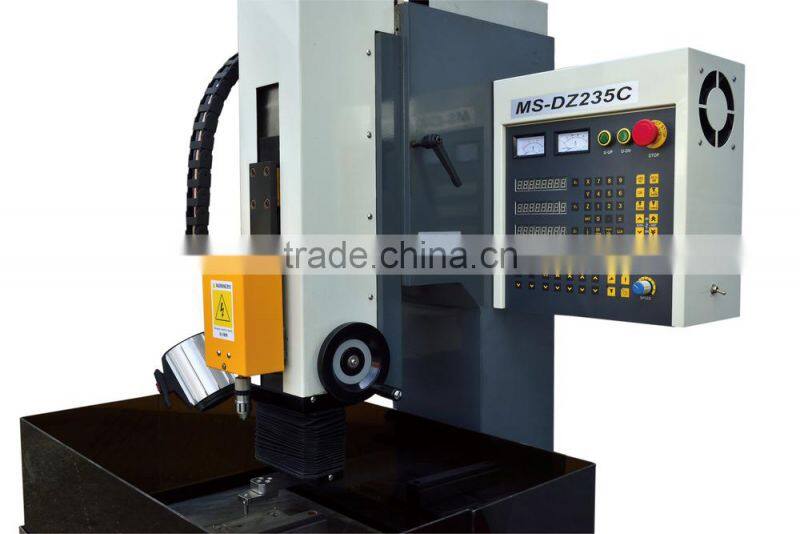

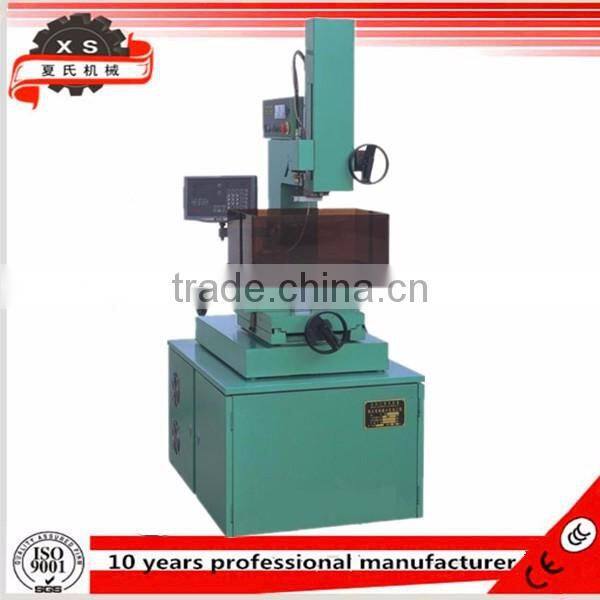

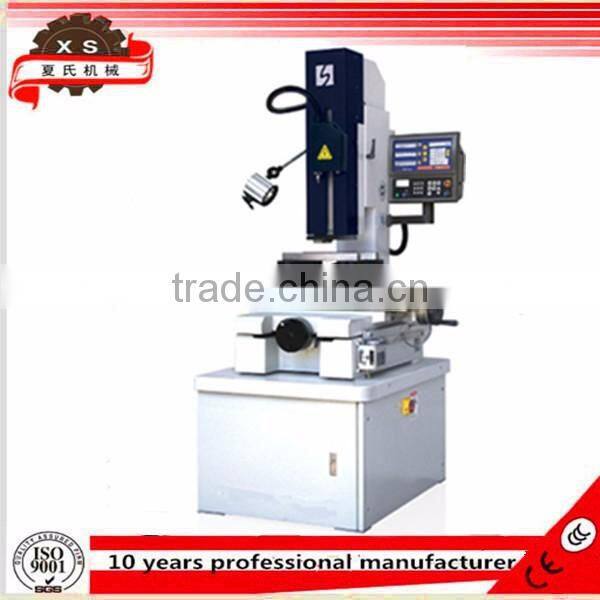

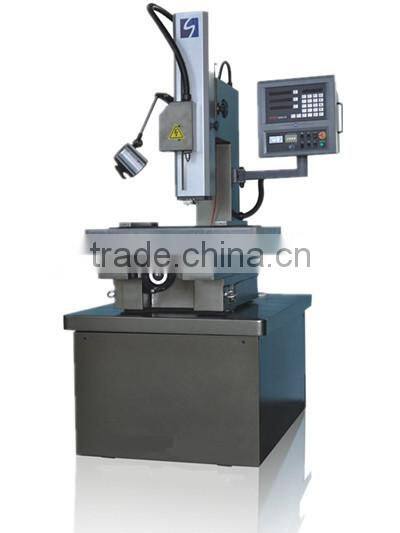

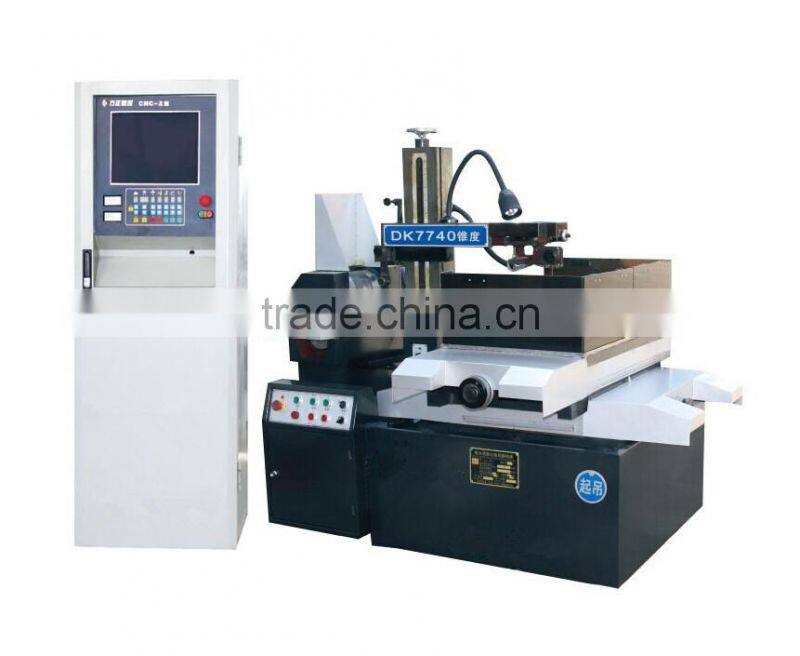

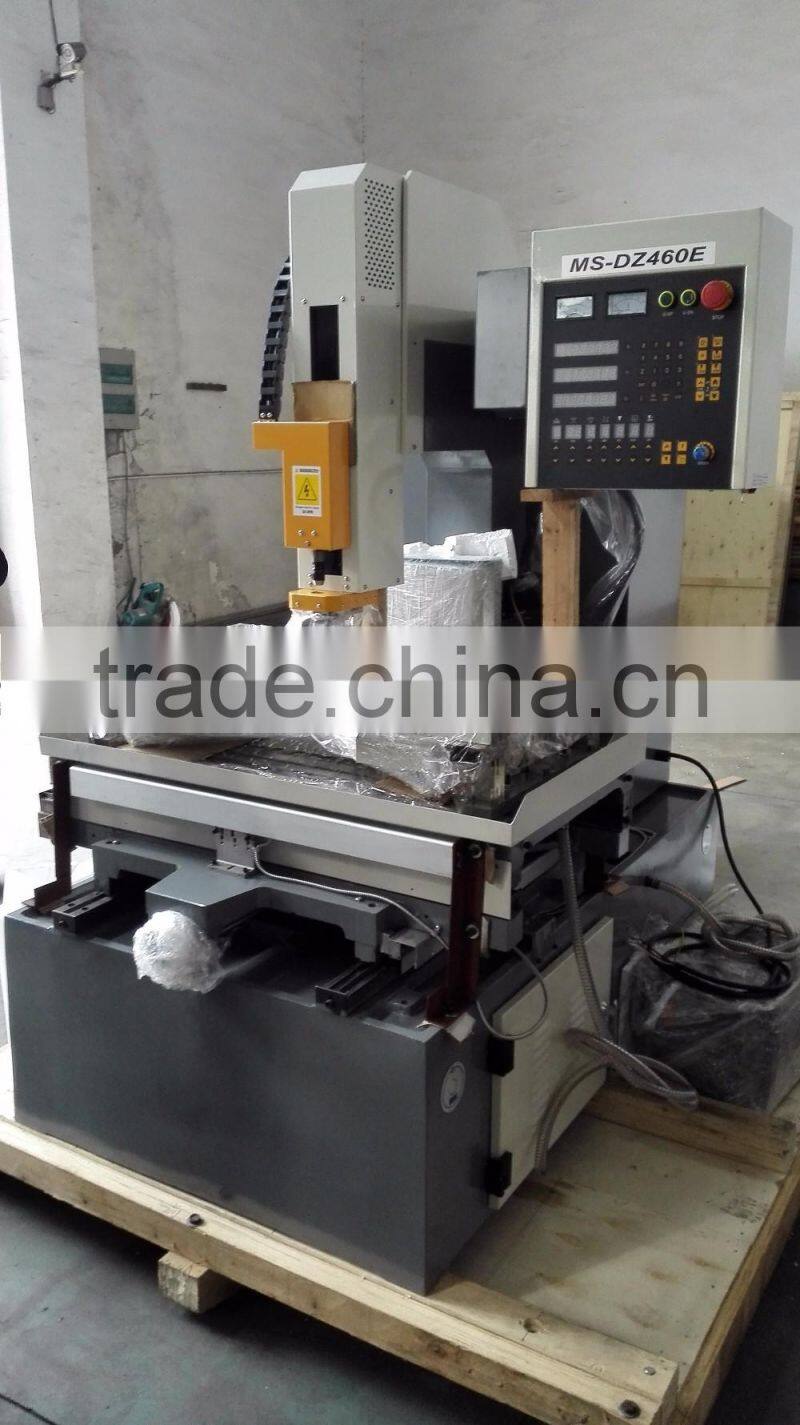

Picture for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
