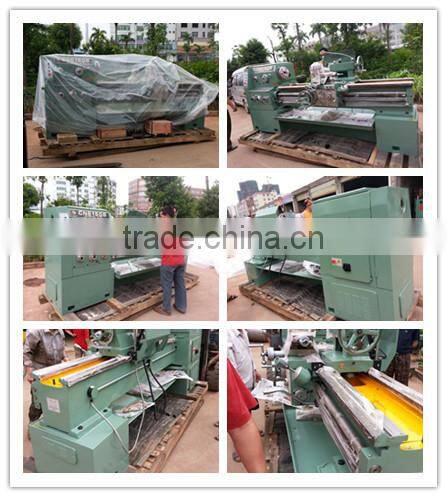

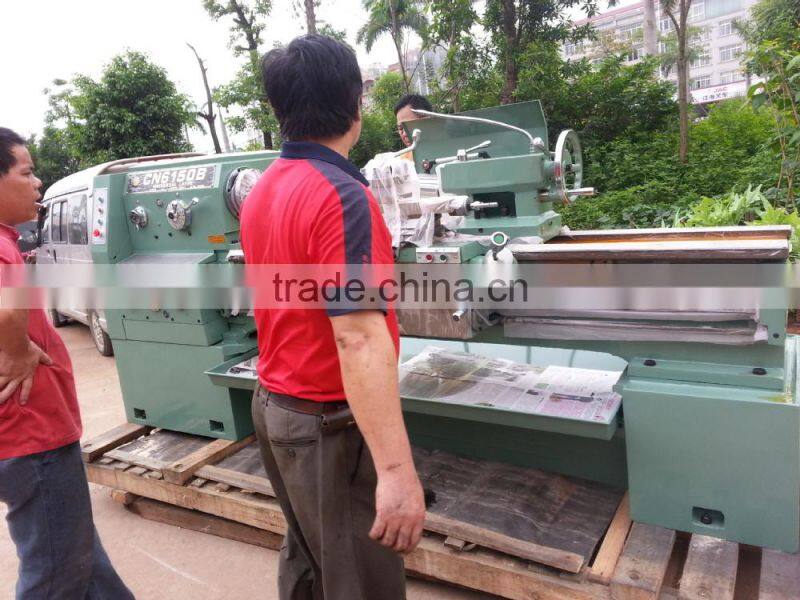

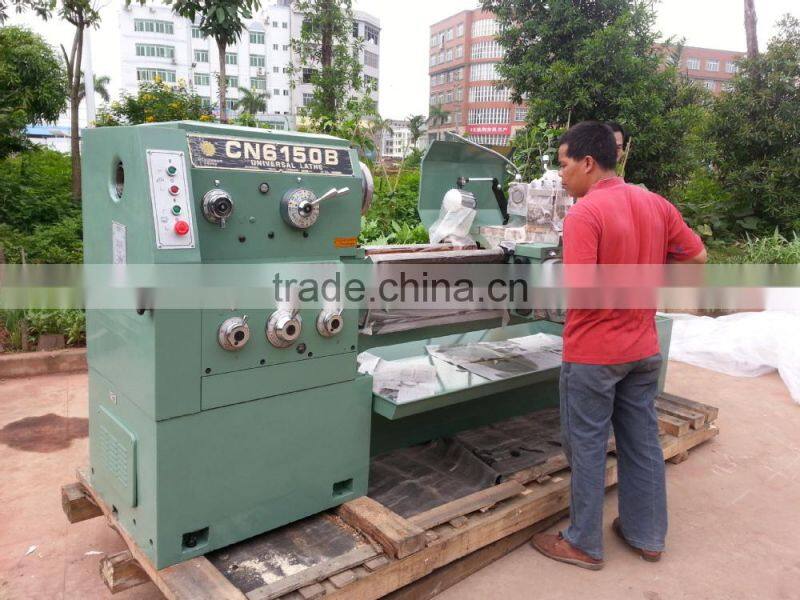

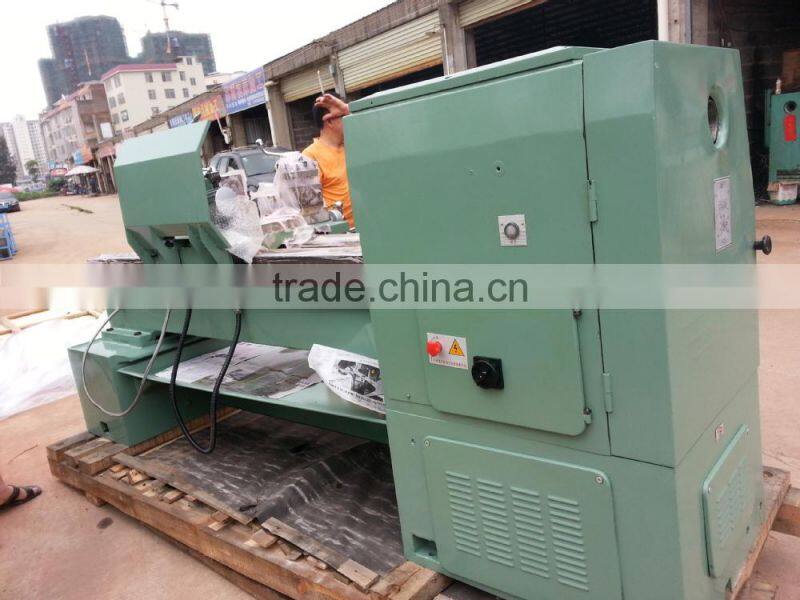

Conventional Lathe CN6150B
The machine is driven by a fast motor, longitudinal, transverse motion knife, saving processing time, the tail adopts the roller to move, the entire tailstock moving more lively.
This series of lathe with process performance is wide, suitable for general machinery manufacturing unit, shop, the tools of the trade, machinery and equipment manufacturing sector repair department and laboratory.
spindle bore is 82
roundness error≤0.01mm
surface roughness(Ra)≤25μm
pitch error≤0.06mm
Rail span :390mm
Model | CN6150B | ||
specifications | Height of spindle centers | 250mm | |
| Max swing diameter over bed | 500mm | |
| Max length of workpiece | 1000mm | |
| max. travel of tool slide(longitudinal ) | 1000mm | |
| Max swing dia of workpiece | 300mm | |
| Max.swing over gap | 710mm | |
| Valid length of gap | 240mm | |
| Diameter of the bar | 80 | |
spindle | Spindle bore | 82 | |
| Taper | 90/1:2 | |
| speed50Hz | 9`1600r/min | |
Tool post | Max.transversal travel of carriage | 360mm | |
| Max.travel of top slide | 145mm | |
| Longitudinal graduation value | 1mm/format 300mm/r | |
| Cross graduation value | 0.05mm/format 5mm/r | |
| tool post graduation value | 0.05mm/format 5mm/r | |
| tool rest rotating angle range | 1°/lattice | |
| Distance from spindle center line to the tool supporting surface | 28mm | |
| Section oftool shank (H×W) | 25mm×25mm | |
| Longitudinal feeds | 0.028~6.43mm/r 93species | |
| Cross feed | 0.012~2.73mm/r 93species | |
tailstock | center sleeve Morse tape | MT5 | |
| Max.travel of tailstock barrel | 150 | |
| Max. lateral displacement | ±15mm | |
Screw thread | Mefric | 0.5~224 48 species | |
| Inch | 72~1/8t/in 48 species | |
| module | 0.5~112 42 species | |
| diametral pitch | 56~1/4DP 45 species | |
Motor | main motor | 7.5kW | |
| Rotary Speed of Main Motor 50Hz | 1500r/min | |
| cooling bump motor | 90W Rapid motor250W | |
overall dimension(L×W×H) | center distance 1000mm | 2625×1043×1275mm | 2625×1077×1315mm |
Net weight | center distance 1000mm | 2250kg | 2350kg |
belt | Model of main drive belt | B-2260mm | B-2260mm |

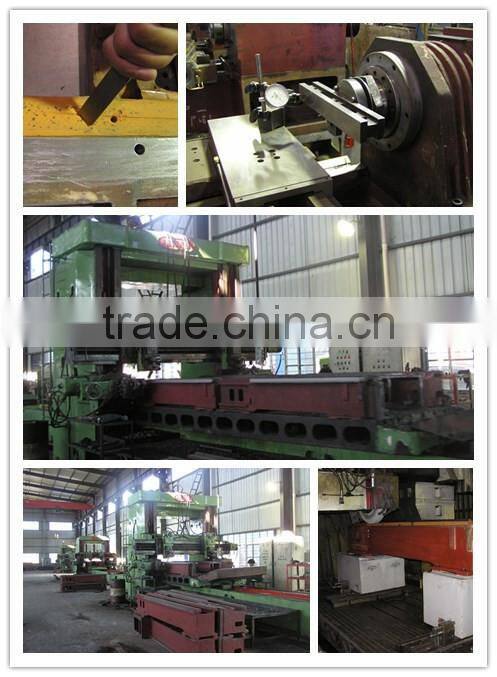

Workshop
