Performance and characteristics
Outfitted Siamese - style bed structurelathe bed high rigidity, good stability, vibration small, Z
direction guide rail span is 320mm,X direction guide rail span is 190mm
Spindle drive system for machinery third gear, automatic shifting, gear inside stepless speed
regulation . Adapt to different cutting requirementsnovel structure, unique, simple and
convenient maintenance.
The key machine purchased parts: CNC systems, spindle bearings, ball screw and selected
other domestic and international famous manufacturers of products , so that the lathe bed has
higher reliability.
Machine Tool sliding surface is pad pasting, friction damping is small.
Machine tool processing’s workpiece has good consistency,it can achieve stability IT7-IT6 level precision, machined surface roughness up to Ra1.6.
The machine adopts mechatronics design, overall layout is reasonable, easy to operate, one
person can operate multiple machines
Technical parameters
Model | CN-K36D | CN-K40D |
Max swing over bed | 360mm | 400mm |
piece length | 750mm,1000mm,1500mm | |
Maximum swing diameter of work over bed | 360mm | 400mm |
Max. swing diameter of skateboard | 180mm | 220mm |
Maximum length of work(revolving centre to jack catch) | 640mm,890mm,1390mm | |
Maximum diameter of the bar through the spindle hole | 50mm | |
center height | 180mm | 200mm |
center distance | 750mm,1000mm,1500mm | |
Spindle bore | 52mm | |
Spindle taper | Mohs 6 # | |
Spindle speed range | Automatic third gear 60-2000r/min H:275-2000r/min M:112-820r/min L:60-440r/min | |
maximum stroke of Longitudinal Tool carrier | 750mm,1000mm,1500mm | |
maximum stroke of horizontal Tool carrier | 230mm | |
Longitudinal rapid traverse speeds | 8000mm/min | |
Horizontal rapid traverse speeds | 4000mm/min | |
Working tool positions | Vertical four-station | |
Section oftool shank | 20×20m² | |
distance between Spindle centerline to Tool bearing surfaces | 20mm | |
center sleeve hole taper | MT4 | |
Maximum moving amount of center sleeve | 130mm | |
Maximum amount of transverse movement | ±10mm | |
Main motor power | 5.5KW | |
Servo motor power (Z) | 10N.m | |
Servo motor power (X) | 4N.m | |
Model of Cold cutting pump | ATB-20 0.115KW | |
Model of tool | LD4 | |
Machine weight | 1600kg,1700kg,2000kg | |
Machine overall dimensions (L×W×H) | 2200*1500*1800mm, 2450*1500*1800mm, 2950*1500*1800mm | |

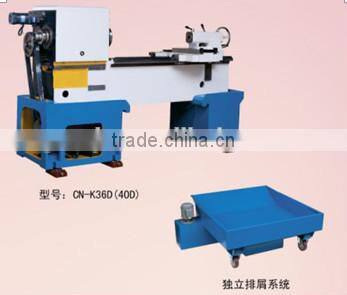

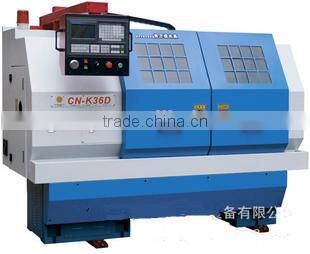

Picture details
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
