Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CKD6150 Precision CNC Horizontal Lathe Machine

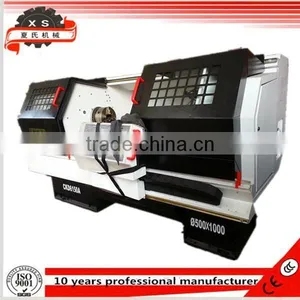

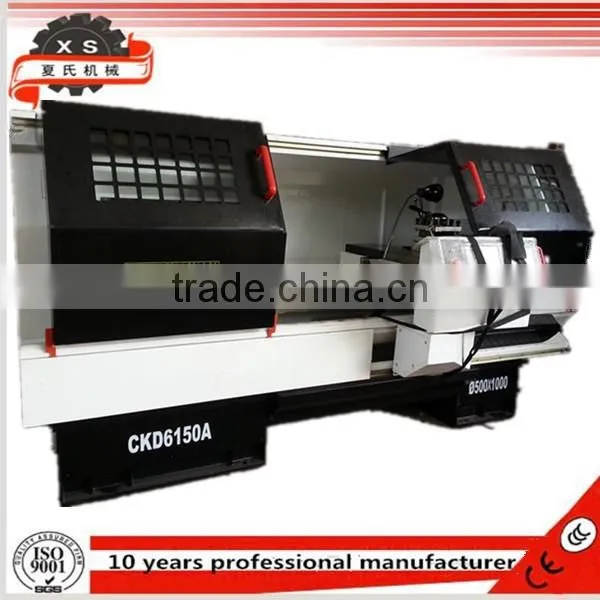

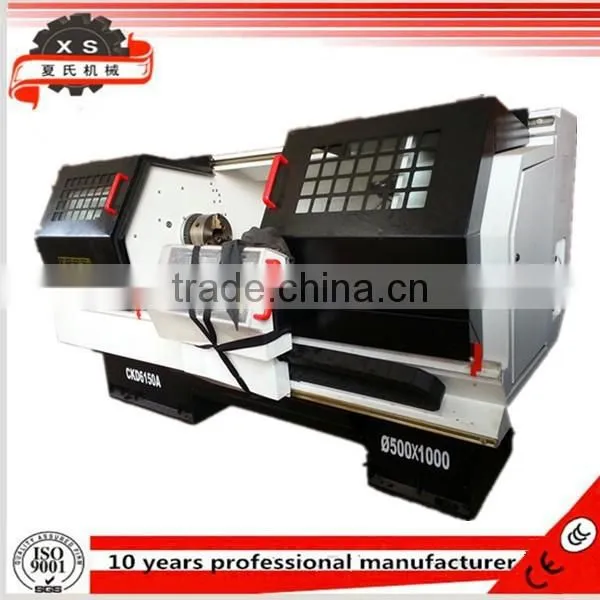

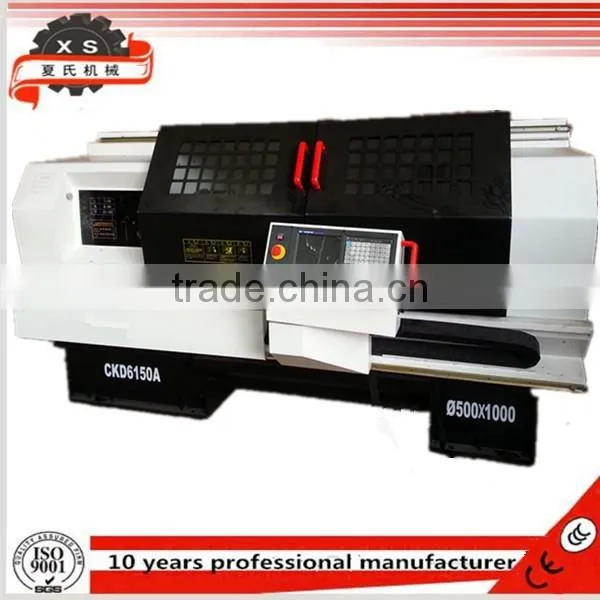

CKD6150 Precision CNC Horizontal Lathe Machine

Name: CKD6150 Precision CNC Horizontal Lathe Machine
Brand: XiaShi
SKU: 140990484
Availability: InStock

CKD6150 Precision CNC Horizontal Lathe Machine thumbnail-1

CKD6150 Precision CNC Horizontal Lathe Machine thumbnail-2

CKD6150 Precision CNC Horizontal Lathe Machine thumbnail-3

CKD6150 Precision CNC Horizontal Lathe Machine photo-1

CKD6150 Precision CNC Horizontal Lathe Machine photo-2

CKD6150 Precision CNC Horizontal Lathe Machine photo-3

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Guangxi Xiashi Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Automatic

Max. Swing Diameter 500mm

Place of Origin Guangxi, China

Brand Name XiaShi

Model Number CKD6150

Power(W) 6.5/8

Dimension(L*W*H) (2580/2832/3330/3830)*1750*1632

Weight 2550/2600/2700/2800

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Introduction

This CNC horizontal lathe machine is controlled by longitudinal (Z) and transverse (X) .It can automatically cutting for process of Able metric straight thread, end screw and inch straight thread for a variety of shaft and disk parts auto.

complete machining external cylindrical surface, conical surface, circular surface, face, grooving, chamfering and so on. CKD6150A selection GSK, Beijing KND, Dalian, NC, Huazhong Century Star and other famous companies CNC system for workpiece machining cycle can be repeated. Suitable for many varieties, small batch production of complex, high-precision parts, especially to show superiority.

1.The machine adopts horizontal lathe layout of traditional . The overall design, sealing, safety standards are met. Bed, bed legs and other parts are used primarily base resin sand casting, artificial aging, excellent machine stability.

2.Machine longitudinal and lateral movement of the shaft with servo motor, precision ball screw, high rigidity and precision composite bearing drive, encoder position detection of semi-closed loop feedback control system. Guideway adopt international popular high-frequency hardening (hard track) plus "laminating" process, each motion axis response, high precision, long life.

3.Appearance of the machine in accordance with international fashion trends protection design, novel and unique, waterproof, anti-dust, easy maintenance; reflects the characteristics of the times.

Machine operating system according to ergonomic principles, independence and rotation settings control box can be moved to any location convenient for the operator to the nearest knife, is a manifestation of human design.

4.With a focus on the ball screw and guide rail lubricators combined face mandatory automatic lubrication, which can effectively improve the life of the machine's dynamic response characteristics and screw rail.

5.Saddle and skateboard rail joint surface using "laminating" process moving parts can be realized micro feed to prevent crawling.

Technical parameters

main parameter	unit	CKD6136i	CKD6150
Max.swing over bed	mm	Φ360	Φ500
Max. Length of work piece	mm	750/1000	750/1000/1500/2000
Max, machining length	mm	650/900	680/930/1430/1930
Max. turning dia	mm	Φ360 (Vertical four-station turret)	Φ500(Vertical four-station turret) Φ400(Horizontal six-station turret)
Shaft height to Axis	mm	186	250
Bed width 1080 mm	mm	300	400
Hole through spindle	mm	Φ52	Φ82
mode of spindle head	?	A2-6	C8
Motor power	kW	5.5	6.5/8
Max.speed of the spindle	r/min	3000	1600
X axis max .travel	mm	230	280
Z axis max .travel	mm	660/910	685/935/1435/1935
Overall dimensions	mm	(2300/2550)×1480×1520	(2580/2832/3330/3830)×1750×1632
weight	kg	1800/1950	2550/2600/2700/2800

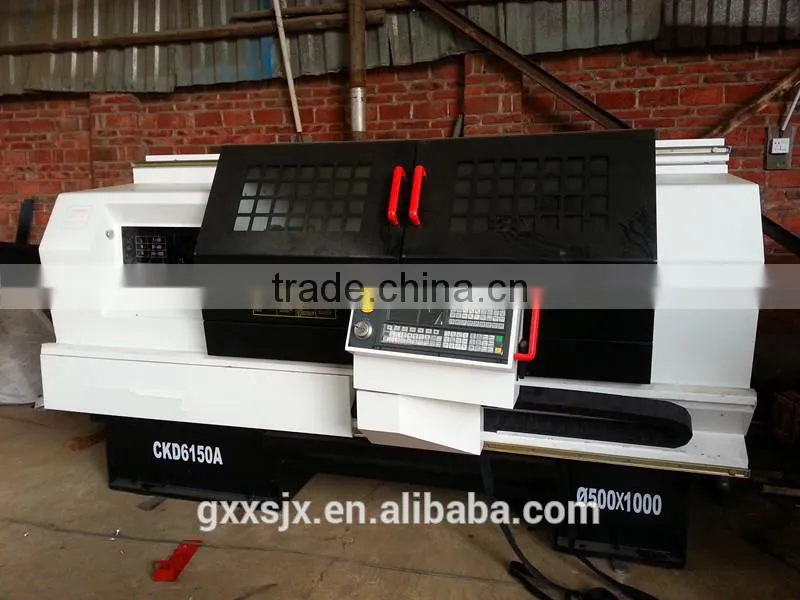

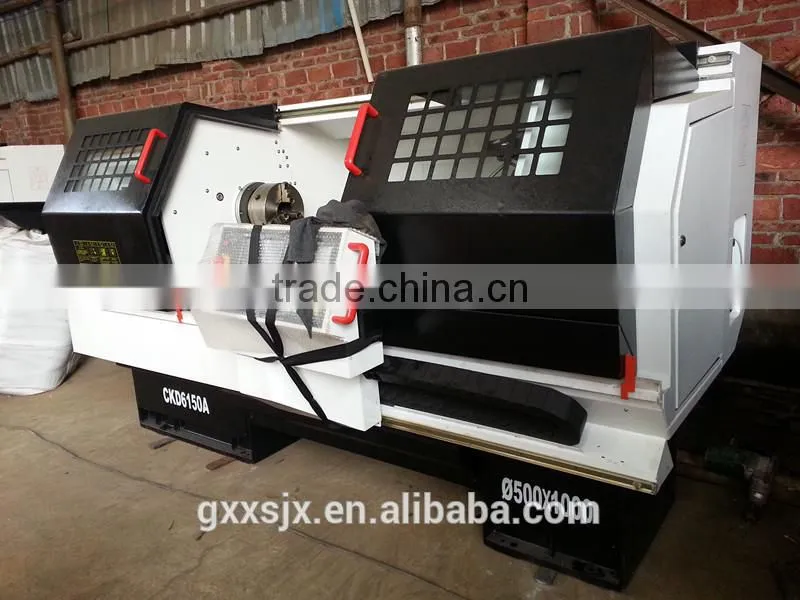

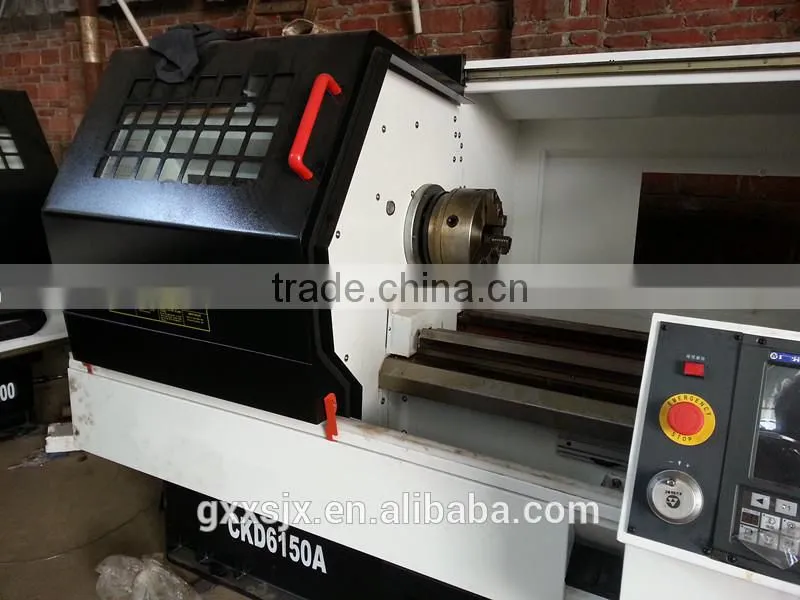

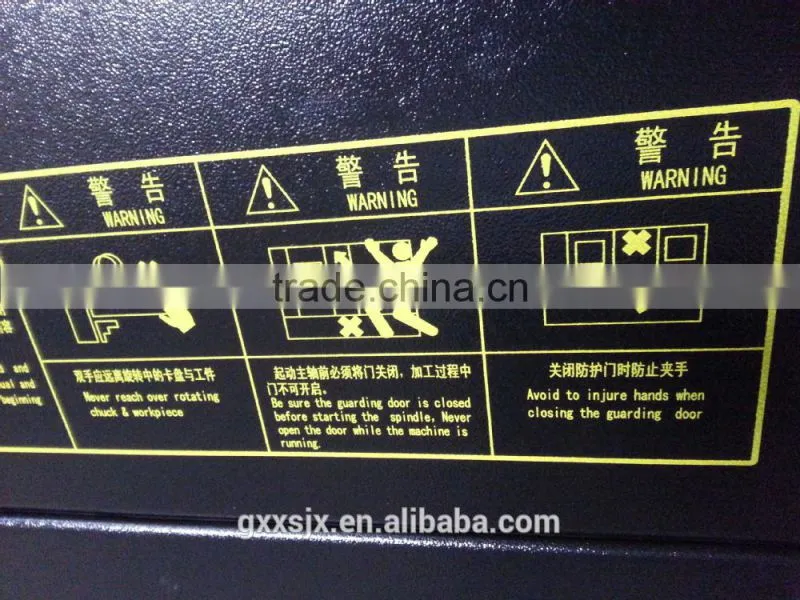

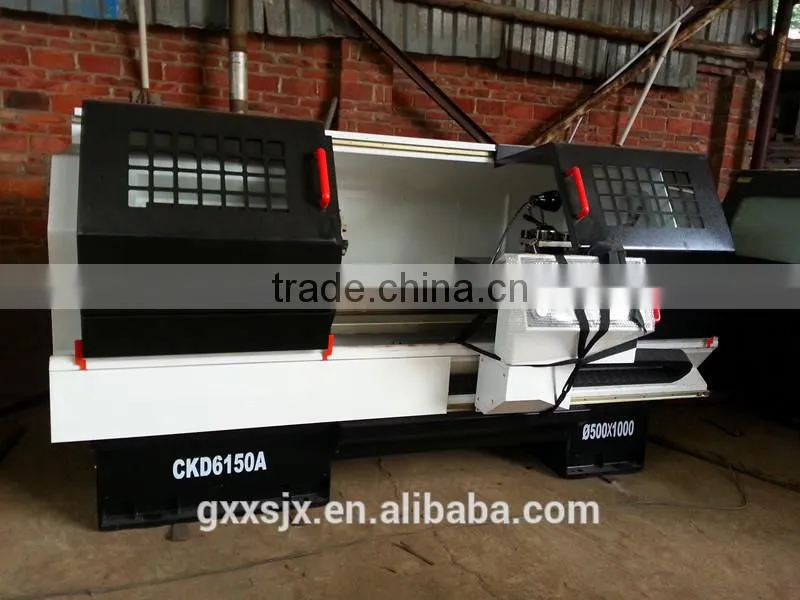

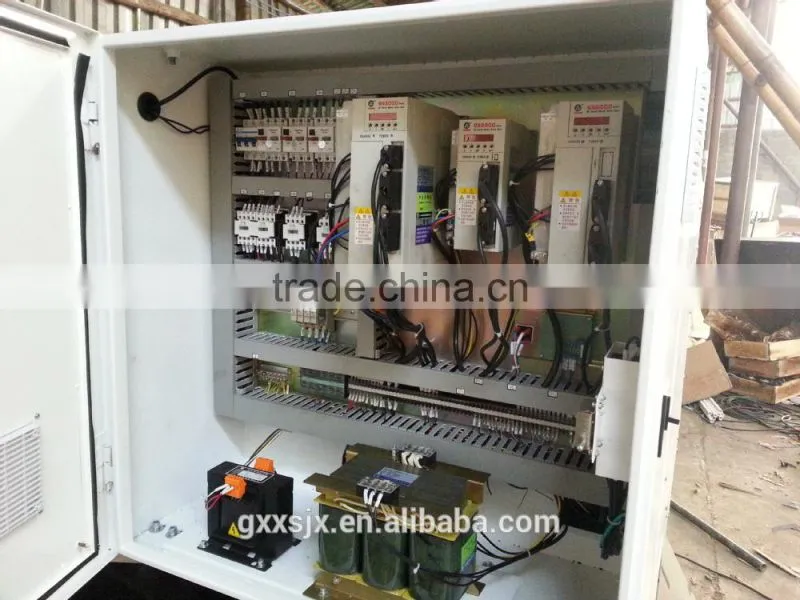

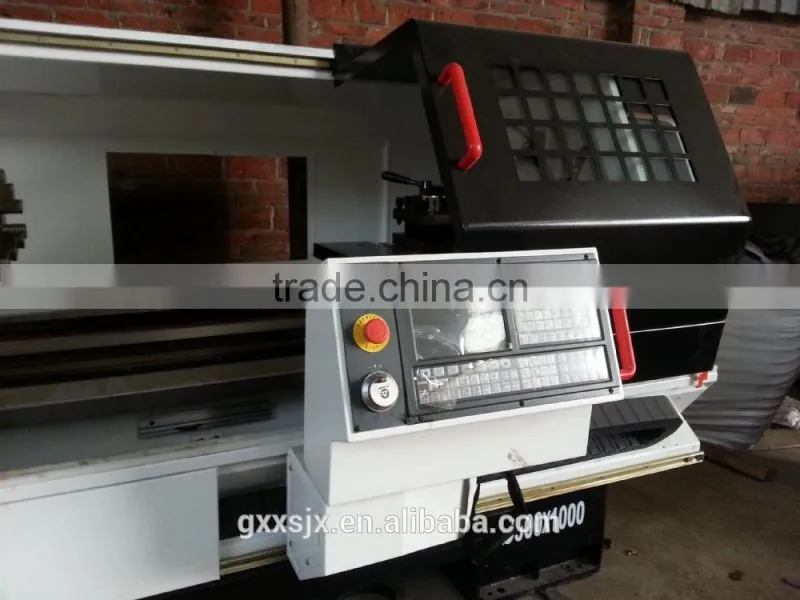

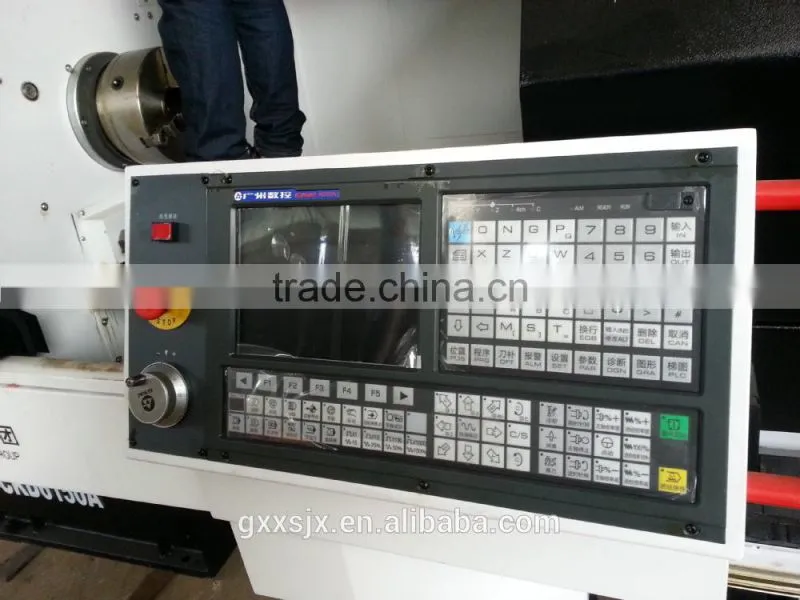

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
