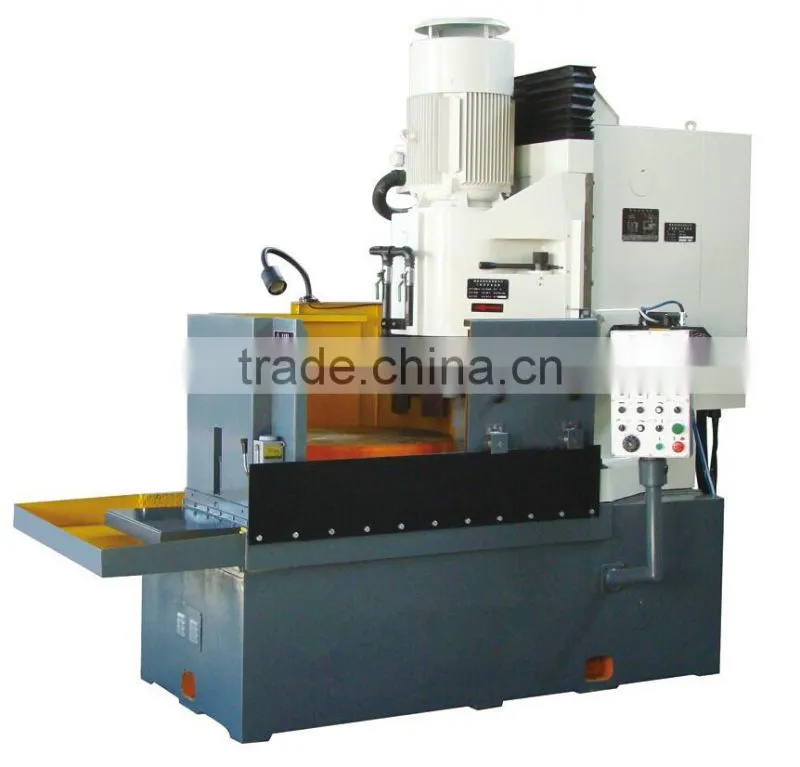

Help CenterSurface Grinding Machine With Rotaty Table M74125K-2
Related Products
-
Vertical Spindle Surface Grinding Machine M7475K-2NegotiableMOQ: 1 Set -
High Precision Metal Centerless Grinder TC-12NegotiableMOQ: 1 Set
-
Vertical Spindle Surface Grinding Machine With Rotary Work Table M7475KNegotiableMOQ: 1 Set
-
Centerless Grinder M1010B Grinding MachineNegotiableMOQ: 1 Set
-
M1080B Centerless Grinder MachineNegotiableMOQ: 1 Set
Vertical Spindle Surface Grinding Machine with Rotary Work Table
Vertical Spindle Surface Grinding Machine with Rotary Work Table is surface-grinding machine designed to process work pieces on the rotary work table by the circumference of the grinding wheel on the spindle. The work table is in the use of an electromagnetic sucking device or Disc clicker; the vertical pillar and the machine tool bed are connected by the three-point position regulation system, which helps to process the work piece into inside cave shape or crown shape; the grinding wheel spindle is driven by a external(internal) high-power loaded electric motor , which improves the grinding effect; the grinding wheel is in the use of either cylindrical shaped or even distributed trapezoid carborundum brick wheels around the circumference. This machine is used in the surface grinding process of mass-production disc type work. In the metal industry, such as bearings, disc type cutters, circular saw blades, automotive engine connecting rod, clutch friction plates, hydraulic pressure casting, pump valves, and magnetism material; in the nonmetal industry, such as refractory material, ceramic, glass, silica, marble, and carbon fiber
List |
(Unit) |
M74100K-2 |
M74125K-2 |
M74125KH-2 |
Diameter of Worktable |
mm |
Φ1000 |
Φ1250 |
Φ1250 |
Grinding Range of Work Pieces(D×H) |
mm |
Φ1000×320 Φ1000×400 |
Φ1250×320 |
Φ1350×350 |
Rotational Speed of Working Table(Stepless) |
rpm |
2~30 |
2~30 |
2~30 |
Shifting Distance of Working Table |
mm |
570 |
650 |
650 |
Max. Weight of loaded work piece |
kg |
800 |
1300 |
1300 |
Grinding Wheel Dimension(DO×IO×W) |
mm |
Φ585×Φ485×120 |
Φ650×Φ550×120 |
Φ650×Φ550×120 |
Dimensions of Trapezoid Carborundum Brick(A×B×C×L) |
mm |
85×100×35×150 |
85×100×35×150 |
85×100×35×150 |
Trapezoidal wheel swing diameter |
mm |
Φ605 |
Φ675 |
Φ675 |
Rotational Speed of Grinding Head Main Spindle |
rpm |
740 |
740 |
740 |
Vertical Shifting Distance of Grinding Head |
mm |
360/420 |
420 |
380 |
Auto-Vertical Feed Range of Grinding Head (total 12 levels) |
mm |
0.005~0.1 |
0.005~0.1 |
0.005~0.1 |
Auto-Vertical Feed interval time of Grinding Head (total 4 levels) |
s |
0~9 |
0~9 |
0~9 |
displacement of grinding-head per step of electronic handwheel |
mm |
0.005 |
0.005 |
0.005 |
Rapid Up-and-Down Speed of the Grinding Head |
mm/min |
200 |
200 |
200 |
Power of the Grinding Head Motor |
kw |
30 (45) |
30(45) |
45 |
Machine Weight |
t |
8.5(9) |
10(10.6) |
11.5 |
Overall Machine Dimensions(L×W×H) |
mm |
2900×1850×2700 |
3600×2100×2700 |
3600×2100×2850 |
Parallelism of Machined Surface to Base Surface |
mm |
0.015/1000 |
0.015/1000 |
0.015/1000 |
Roughness of Work Piece Surface |
μm |
Ra≤0.8 |
Ra≤0.8 |
Ra≤0.8 |
