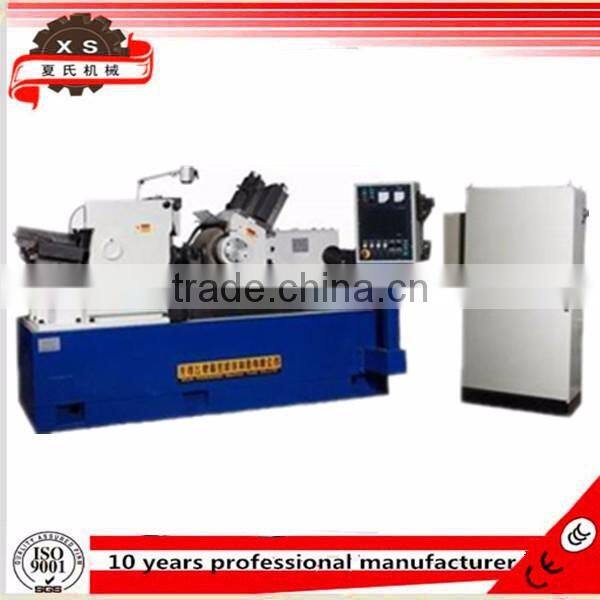

centerless grinding machine M1040B with low price
Features:
Structure of fixed grinding wheel and movable regulating wheel
The grinding wheel designed in cantilever type, and its spindle adopted multi-plate long bearing bushed static-hydrodynamical oil film bearing.
Cantilevered regulating wheel, the spindle supports solid bearing sliding with 1:30 taper.
The swallow tailed roller guideway & differential screw supports the regulating wheel feeding
AC frequency converter is used for regulating wheel speed control .
Hydraulic transmission & stepless speed regulation are adopted on regulating wheel & grinding wheel dresser.
Equipped automatic plunge device in the grinder.
Main Application:
The grinder is mainly used for through-feed grinding of cylindrical surface and ring-type parts, as well as for plunge-cut grinding of various stepped, cones by manual operation .
Technical parameter
Thru-feed |
|
1)Grinding diameter |
2-40mm |
2)Grinding length |
140mm |
Plunge feed |
|
1)Grinding diameter |
7-40mm |
2)Grinding length |
120mm |
Grinding wheel specifications |
PSA350*125*127mm |
Regulating wheel specifications |
PSA250*125*75mm |
Grinding wheel speed |
1870r/min |
Regulating wheel speed(stepless) |
20-180r/min |
Swiveling angle of regulating wheel |
|
1)Invertical plane |
-2°~ 4° |
2)In horizontal plane |
0°~ 3° |
Feed amount per division of the feed handwheel |
0.002mm |
Feed amount per division of the dresser |
0.01mm |
Height from centerline of gri.wheel & reg.wheel to workest |
190mm |
Toal power of machine |
9kw |
1)Grinding wheel motor |
7.5kw |
2)Regulating wheel motor |
1.1kw |
Overall dimensions |
1550*1300*1405mm |
Machine weight |
about 2000kg |
Machining accuracy |
|
1)Roundness |
0.002mm |
2)Cylindricity |
0.003mm |
3)Surface Roughness |
Ra0.32um |

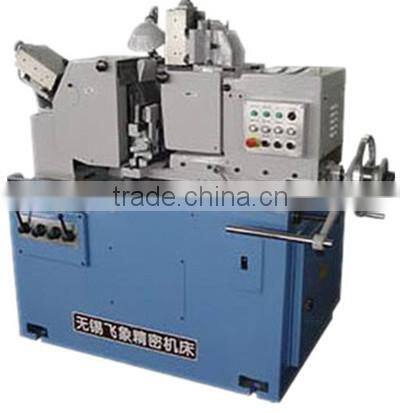

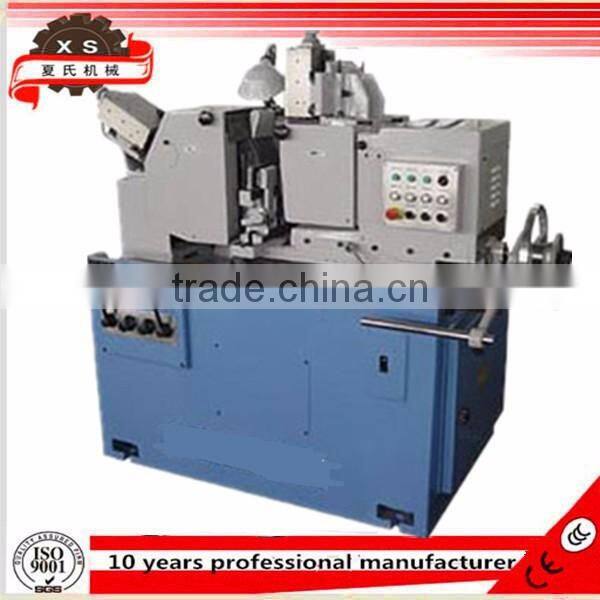

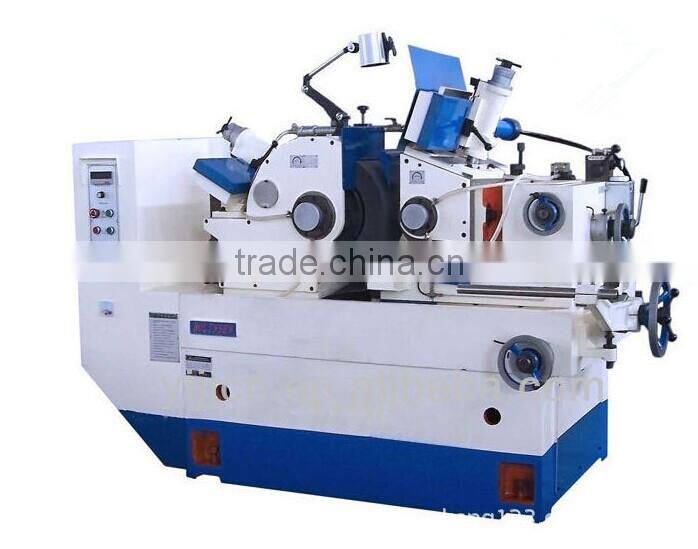

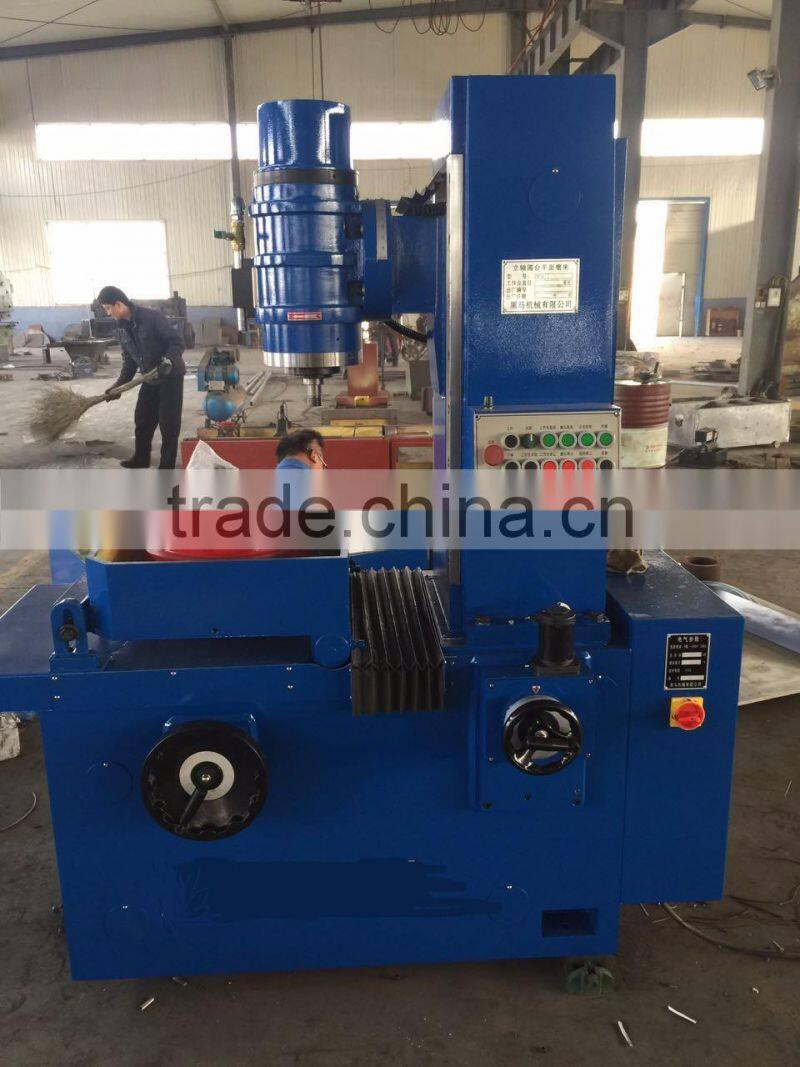

Detailed pictures for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
