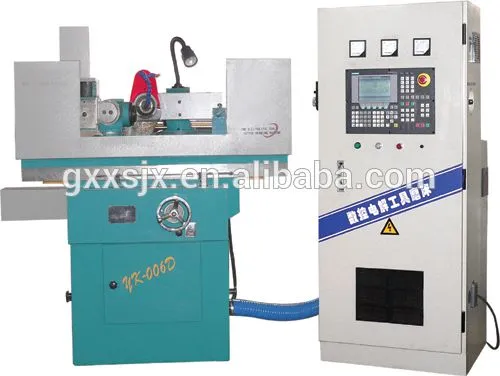

YK-006D CNC Tool Grinder

YK-006D CNC Tool Grinder photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Max. Grinding Diameter:
250mm
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
CNC or Not CNC
Max. Grinding Diameter 250mm
Max. Grinding Length 300mm
Brand Name xiashi
Model Number YK-006D
Power(W) 1.1kw
Dimension(L*W*H) 1450*1340*1450(mm)
Weight 1150kg



Product Description



Machine tools purposes



The machine adopts SIEMENS 802D numerical control system and AC servo drive unit. It can realize four axis linkage, grinding work and complete all kinds of complex curve.

The ball screw and linear rolling guide. Reasonable structure, beautiful appearance, good rigidity, high precision.

Especially suitable for grinding various carbide cutting tools and gauges, such as milling, ball end milling cutter, reamer, gear shaper cutter, planer tool, etc..

It can the grinding workpiece outer surface and the plane etc..

It can complete common tool grinder grinding problem,and suitable tool factory, workshop tools, machinery and processing plants.



Technical parameters

Model

YK-006D

Max.Grinding Workpiece diameter

250mm

Max. grinding length

300mm

CNC dividing head and post top pitch

480mm

Table size

940×130mm

T-slot

14mm

Longitudinal travel (X-axis)

380mm

X-axis resolution

0.001mm

main motor

1.1kw

spindle speed (Stepless adjustment)

0~4000rpm

Spindle end taper

1:5

Grinding head amount of vertical movement

210mm

Grinding head amount of lateral movement

210mm

Chucks spindle shaft hole (Z-axis)

Mohs No.5

Z-axis resolution

0.001°

Overall dimensions

1450×1340×1450(mm)

GW / NW

1150/1450kg

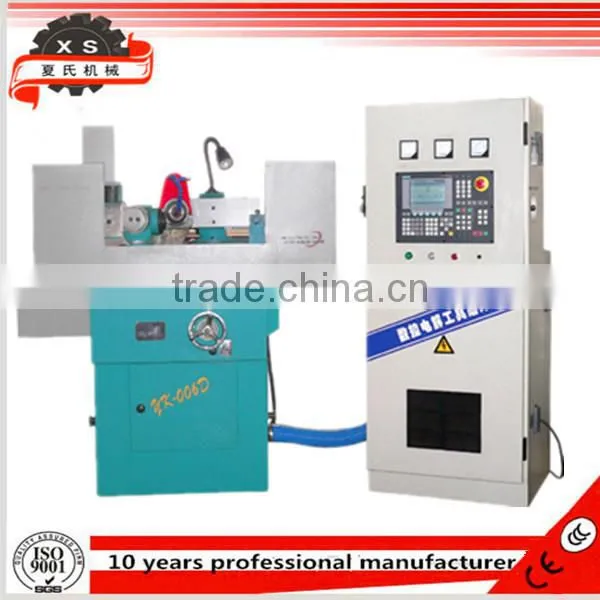

  Detailed pictures for your reference



YK-006D CNC Tool Grinder







If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
