Home > Products > Gear hobbing machine and Thread rolling machine > High Quality Geared Metal Shaper Machine YKG5140 Y5150K YKS5122

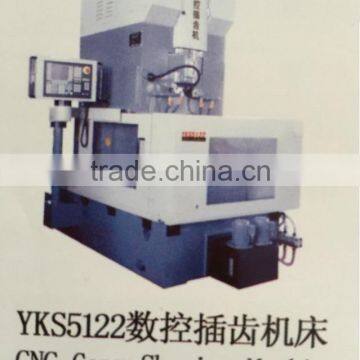

High Quality Geared Metal Shaper Machine YKG5140 Y5150K YKS5122

FOB Price

US$ 1,000 - 10,000 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Gear Shaping Machine
CNC or Not	CNC	Place of Origin	Guangxi, China
Brand Name	XIASHI	Model Number	YKG5140
Voltage	220V/380V	Power(W)	11kw
Dimension(LWH)	2838x1780x2926mm	Weight	10.8t
Certification	ISO9001CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Features

1.Mainly used for large and medium-sized inside and outisde the cylinder gear, helical gear(special annex) machining.

2.Upon special request, the machine can be provided with optional attachments for cutting gear rack, shaft gear, helical gear and little tapered gear.

3. The machine is featured in smooth running, low noise, versatile functions, nice adaptability, easy set up and simple operation.

N.O	Item		Data
1	Max Process Dia	external gear	Dia 400mm
1	Max Process Dia	internal gear	Dia400mm
2	Max module		10mm
3	Max Process Width		82mm
4	Max Stroke Length		100mm
5	Stroke n.o of gear shaper cutter spindle		100-1000str min
6	Distance from end surface of gear shaper spindle to work table		170-295mm
7	Distance from gear shaper cutter center to worktable center		130-295mm
8	Specs of gear shaper cutter	Inner hole	31.75mm
9	Specs of gear shaper cutter	root circle	>105mm
10	Work Table Dia		520mm
11	Aperture of work table spindle		50mm
12	bidirectional cutter back-off offset amount		±20mm
13	radial back-off amount of cutter spindle at highest position		0.5mm
14	radial feeding of post (Stepless Adjstable)		20-580mm
15	Fast radial feeding of post		2500mm
16	Main Motor	Power	11KW
16	Main Motor	Speed	1500rpm
17	C Servo Motor( circular motion)	Power	27
17	C Servo Motor( circular motion)	Speed	3000rpm
18	B Servo Motor(divided teeth)	Power	27
18	B Servo Motor(divided teeth)	Speed	3000rpm
19	X Axis Servo Motor( Raidal)	Power	36
19	X Axis Servo Motor( Raidal)	Speed	3000rpm
20	Hydraulic Motor	Power	3KW
20	Hydraulic Motor	Speed	1500rpm
21	Lubrication Motor	Power	1.5KW
21	Lubrication Motor	Speed	1500rpm
22	Cooling Pump Motor	Power	0.6x2KW
22	Cooling Pump Motor	Speed	2900RPM
23	chip cleaner Motor	Power	0.1KW
23	chip cleaner Motor	Speed	1400RPM
24	Machine Size		2838x1780x2926mm
25	Machine Weight		10.8T

Packaging & Shipping

We will pack the machine with standard export wooden case ,ensure the transport safety

FAQ

1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.

2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.

3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.

4)Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.

5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.

6)Q: how about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
