Home > Products > Gear hobbing machine and Thread rolling machine > CNC Gear Machine Gear Shaping Machine Y5150K

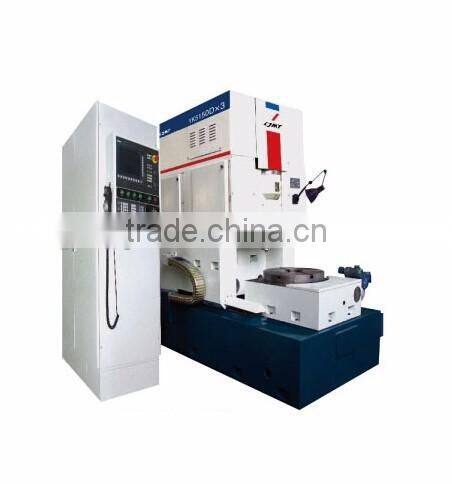

CNC Gear Machine Gear Shaping Machine Y5150K

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port guangzhou

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Gear Hobbing Machine
CNC or Not	CNC	Place of Origin	Guangxi, China
Model Number	Y5150K	Voltage	220V/380V
Power(W)	15kw	Dimension(LWH)	2120X1475X2275mm
Weight	5000kg	Certification	ISO9001 CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CNC Gear Machine Gear Shaping Machine Y5150K

Features

1.The gear shaping machine is used to make gear that diameter is below 500mm

Notification will not be made if the products' colour and parameter change,and product is based solel on latest sales sample.

2.Y5150K Gear Shaping Machine is designed for cutting cylindrical disc-type spur gear, cluster gear,internal gear, external gear, and gear segment.

3.Upon special request, the machine can be provided with optional attachments for cutting gear rack,shaft gear, helical gear and little tapered gear.

4.The machine is featured in smooth running .low noise, versatile function, nice adaptability, easy set-uand simple operation.

5.Thus being well-suited for mass batch production of rears adopted on automobile

tractors.
6.The machine can also be used for small batch and job-lot gear production

Specification

Model	Y5150K
Max work piece dia. external gear	500mm
Max work piece dia. internal gear	600mm
Max module	8mm
Max stroke length of cutterspindle	120mm
Max width of teeth	100mm
Distance from cutter center to worktable center	0-320mm
Dia. of work table face	380mm
Dia. of work table bore	80mm
Rough	80, 108, 144,192, 240, 320, 386,515 rpm
Precise	108, 165,192, 292, 320 480,515,780 rpm
Circular feed (cutter dia. is100mm)	10.-0.56mm
Cutter spindle back-off at its up-most position	0.4-0.5
Drive motor power	15Kw
Overall dimensions (L x W xH)	2120X1475X2275
Net Weight	5000kg
Gross Weight	6000kg

Packaging & Shipping

We will pack the machine with standard export wooden case ,ensure the transport safety

FAQ

1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.

2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.

3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.

4)Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.

5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.

6)Q: how about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
