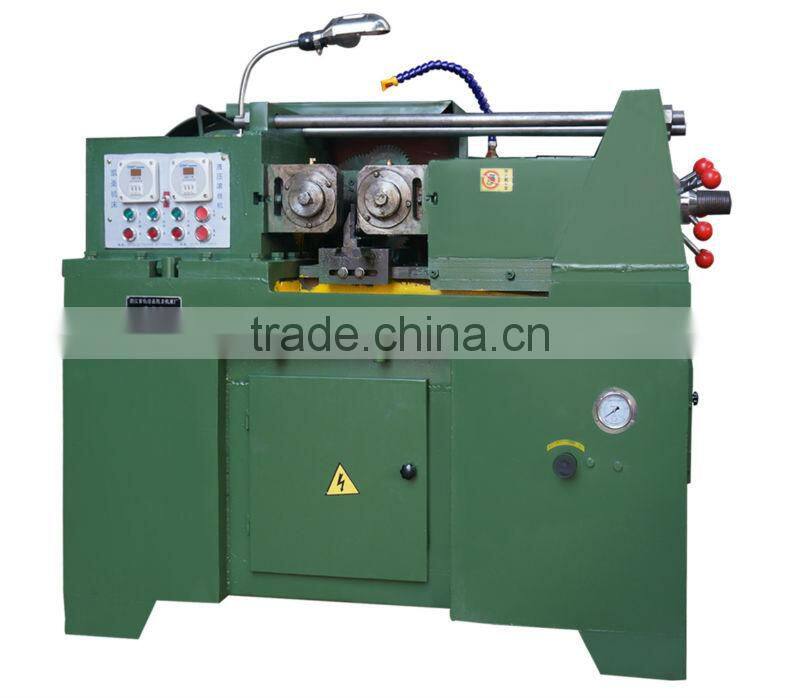

Xia Shi Machine thread rolling machine threaded rods making machine KS-30
- 30 Set / Sets per Month
- ShenZhen
- T/T D/P D/A Credit Card
You May Like
-
Best Quality horizontal semi-automatic screw rolling machine S518
-
Horizontal semi-automatic solid bar thread rolling machine S310
-
thread rolling machine thread roller with 10-1000mm thread rolling lengthTB-16GT
-
2017 new type cheap thread rolling machine for different rod diameter
-
Best quality taper thread rolling machine TB-3S
-
Screw rolling machine with 12-80mm thread rolled diameter TB-40S
Product Details
| Condition | New | Application | Process Threads | |
| Production Capacity | month | Place of Origin | Guangxi, China | |
| Model Number | KS-30 | Voltage | 380V/220V | |
| Power(W) | 4kw | Dimension(L*W*H) | 1400x800x1400mm | |
| Weight | 950kg | Certification | ISO CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Xia Shi Machine thread rolling machine threaded rods making machine KS-30
Feature
Thread rolling machine is actually a multi-purpose cold roll forming machine, the machine can roll in its scope of pressure, it can process in cold state for Threaded,Ruled, straight teeth, knurled,and other molded workpiece .
Cold rolling process is an advanced non-cutting process, it can effectively improve the internal and surface quality of the workpiece, and also has much advantage,such as highly efficient, energy-saving and low vision technology,ect.
Specification
1.Automation degree: Semi-automatic
2.Max.tapping dia :30mm
3.max. travel of spindle:100mm
ing accuracy:2
Technical parameters
Model | KS-30 |
Diameter range of hydraulic workpiece | 0-30mm |
Range of thread of hydraulic workpiece (metric) | 0.5-3mm |
Max. length of the hydraulic workpiece screw | 100mm |
Max. the taper of screws | 1:16 |
center height (Machine table to thread rolling dies Center) | 160mm±0.50 |
Diameter of the spindle thread rolling dies | 54dmm |
Max. diameter of the thread rolling die | 180mm |
Thread rolling dies of width range | 30-100mm |
Max. oil cylinder pressure per unit area | 12Mpa |
Gear pump flow | 6.3L/min |
axis of rotation | 31r/min |
Motor power of mechanical drive | 4kw |
Motor power of hydraulic drive | 1.5-2.2kw |
Cold cut electric pump | 40w |
Machine overall dimension(L×W×H) | 1400×800×1400mm |
Machine weight(about) | 950kg |
Detailed pictures for your reference
We will pack the machine with standard export wooden case ,ensure the transport safety
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
A: warranty is one year, but we will offer lifetime service for machine.
