High quality China D7130 edm die sinking machine low price
Specifications
1.Sanyo DC servo motor
2.most advanced motherboard
3.high accurate, easy control
4.TM/ ISO9001:2008
5.die sinking machine
Features
D7140 precision EDM shaping machine
This machine matches with the pulse source cabinet.
Z axis matches Japanese Sanyo DC servo motor and it has Z axis cnc features.
X,Y axes adopt precise ball screw and raster display to conduct coordinate display, which make high precision positioning.
The electric box uses the most advanced industrial special mainboard.
As long as you input a few parameters like z-axis depth, it will bring up suitable datas from the rich expert database system, automatically achieving roughing to finishing.
Main parameter:
Type | Unit | D7130 | D7132 | D7140 | D7145 |
Worktable Size | mm | 300×500 | 320×550 | 650×460 | 450×720 |
Work tank Dimension | mm | 890×530×320 | 1030×560×320 | 1350×630×410 | 1400×710×410 |
X axis Travel | mm | 300 | 320 | 400 | 450 |
Y axis Tracel | mm | 300 | 250 | 300 | 350 |
Z axis Travel | mm | 200 | 240+240 | 250+250 | 250+250 |
Distance between Electrode & Worktable | mm | 540 | 550 | 650 | 680 |
Max. Workpiece Weight | kg | 580 | 550 | 750 | 800 |
Max. Electrode Weight | kg | 50 | 60 | 70 | 80 |
Machine Weight | kg | 1200 | 1200 | 1800 | 2000 |
Machine Dimension | mm | 1390×1480×2010 | 1100×1400×2120 | 1500×1500×2250 | 1560X1650X2100 |
Main specifications of electrical box
Electrical box | Unit | 60ZNC |
Max. processing current | A | 60 |
Max. processing speed | mm3/min | 400 |
Min. electrode consumption rate |
| ≤0.2% |
Best surface roughness | μm | Ra < 0.3 |
Power Consumption | kW | 6 |
Weight | kg | 200 |
Dimensions(LxWxH) | mm | 600×650×1800 |

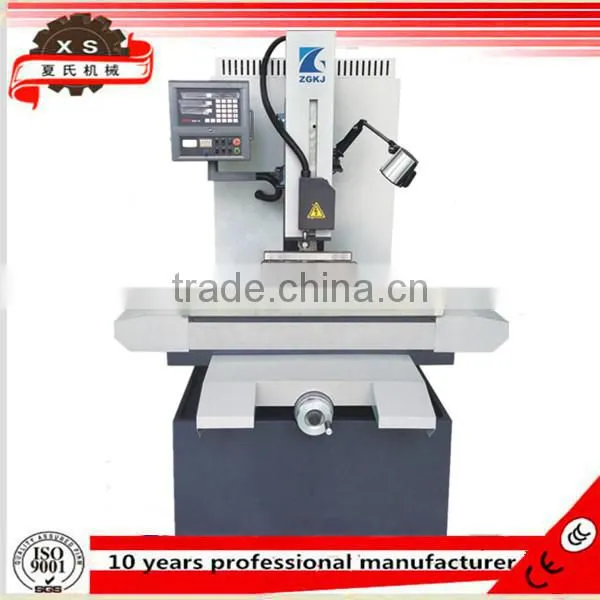

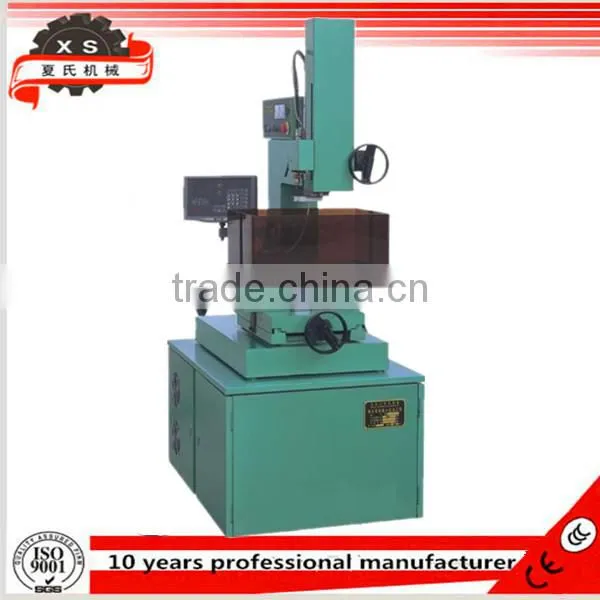

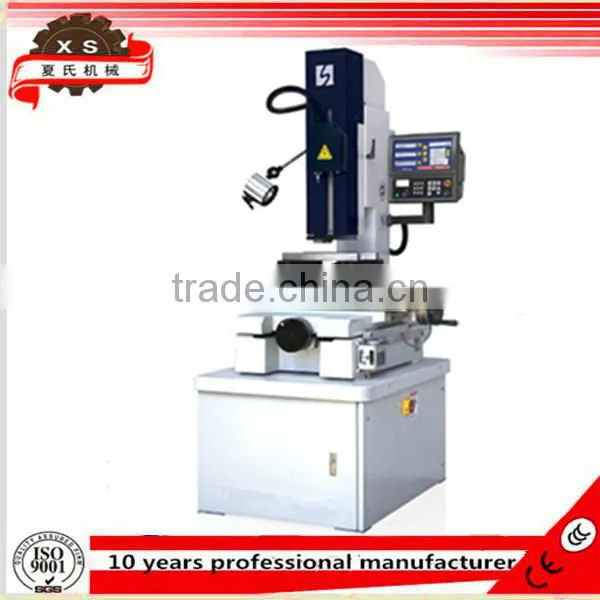

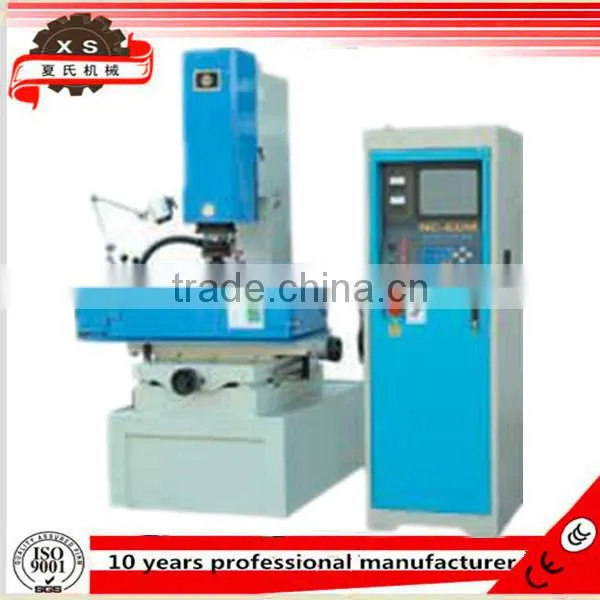

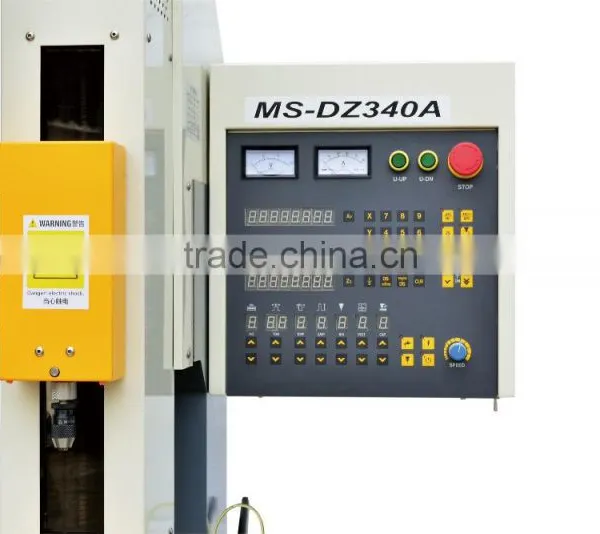

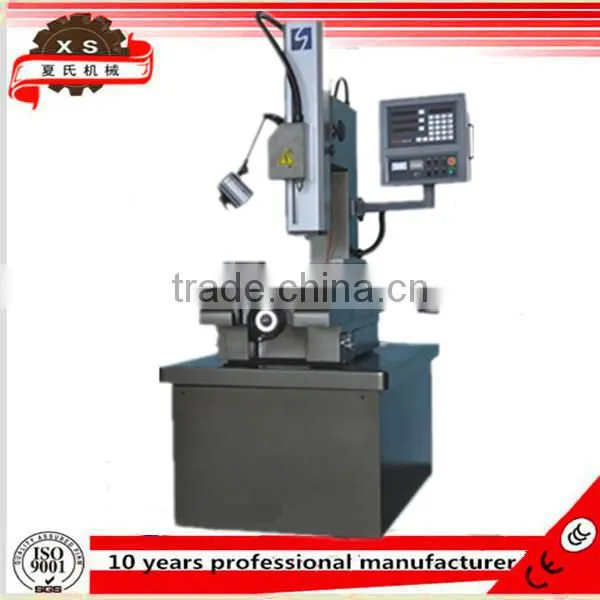

Picture detail
Why Choose us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
