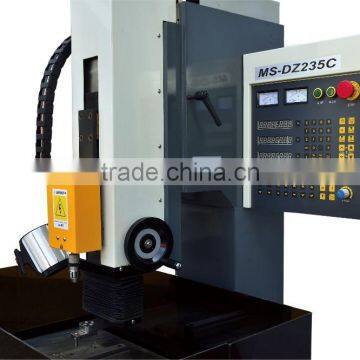

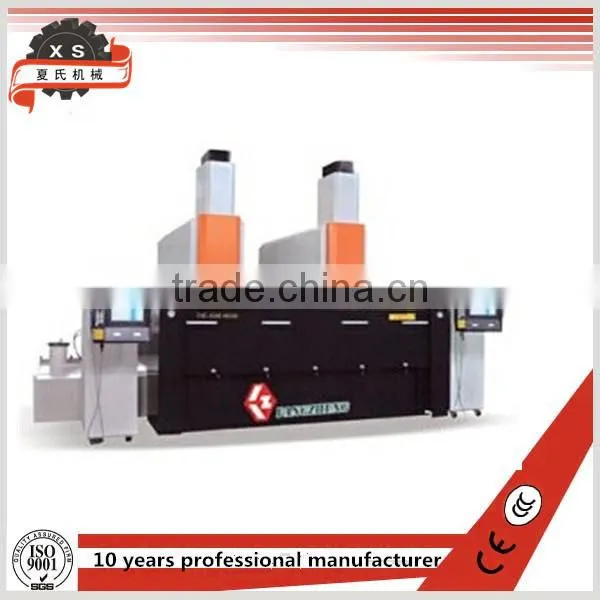

Double machining head Precision Electric Spark Discharge Machine CNC2510,edm machine low price
1 Double machining head, improve efficiency.
2 Three-Axis X/Y/Z can work simultaneously.
3 All axis are driven by servo motor, more accurate.
4 High precision machining surface.
5 High precision edge machining, can reach 0.01mm.
6 High tool moving speed, max. 6m/min.
| Model | CNC1680 (single/double) |
CNC1880 (single/double)) |
CNC2110 (single/double) |
CNC2510 (single/double) |
CNC3010 (single/double) |
|---|---|---|---|---|---|
| Working groove interal size (mm) | 2250×1500×560 | 3000×1500×650 | 3500×1800×650 | 3800×1800×650 | 4500×1800×650 |
| Stroke(X/Y/Z)(mm)(single head) | 1600×800×500 | 1800×800×600 | 2300×900×600 | 2500×900×600 | 3000×900×600 |
| 1100×800×500 | 1200×800×600 | 1450×900×600 | 1750×900×600 | 2400×900×600 | |
| Working table size(mm) | 1700×1000 | 2000×1000 | 2500×1200 | 2700×1200 | 3200×1200 |
| Spindle discetion point | 650-1150 | 600-1200 | 650-1250 | 650-1250 | 7000-1300 |
| Max.electrode weight(kg) | 400 | 400 | 450 | 450 | 450 |
| piece weight(kg) | 6000 | 6500 | 8000 | 10000 | 15000 |
| weight(kg) | Single9000/ Double12000 |
Single13000/ Double15000 |
Single15000/ Double17000 |
Single17000/ Double19500 |
Single23000/ Double25000 |
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
