Hot electric discharge machine NC450(D7130)/edm die sinking machine low price
- 50 Set / Sets per Month
- Shenzhen
- T/T Credit Card
You May Like
-
Electric spark discharge machine NC450(D7135),edm die sinking machine,edm machine low price
-
NC450(D7150) Electric discharge machine/edm die sinking machine low price
-
High quality Electric Discharge Machine CNC1680 welding machine price list
-
High Precision NC450(D7150) Electric discharge machine mini edm machine For Sale
-
NC450(D7150) Electric discharge machine portable edm machine With high quality
-
High Precision NC450(D7150) Electric discharge machine/edm die sinking machine For Sale
Product Details
| Place of Origin | Guangxi, China | Brand Name | Xiashi | |
| Model Number | NC450(D7130) | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

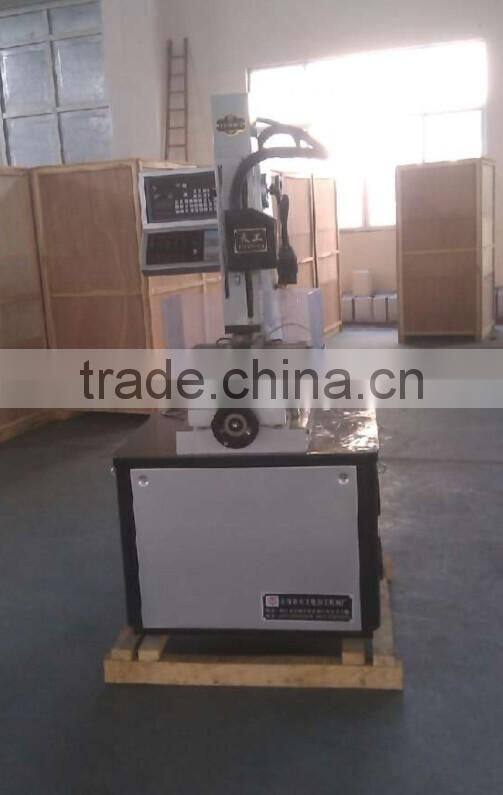

Hot electric discharge machine NC450(D7130)/edm die sinking machine low price
1.Compact design for small part machining
2.Rigid machine base
3.Linear scales in all axes to ensure constant precision
4.Separate dielectric reservoir.
5.Low-maintenance and high efficiency.
6.DC servo-drive for precise control and system stability
7.Anti-carbon automatically detection circuit.
8.Easy-to-learn operation.
9.Direct parameter input and adjustment at the control panel.
10.Translating between Chinese and English, metric and imperial.
11.Machining parameters for specific operations can be stored.
12.Fire prevention and liquid level control automatically.
13.Different discharge system as optional.
14.Conform to the CE safety standard of power box.
Model | D7125 | D7130 | D7135 | D7145 | D7150 |
Working table size (mm) | 280×450 | 280×500 | 350×630 | 450×700 | 500×800 |
Liquid groove size(mm) | 820×490×280 | 890×530×320 | 980×650×350 | 1200×770×450 | 1400×860×500 |
Stroke(X)(mm) | 250 | 300 | 350 | 450 | 500 |
Stroke(Y)(mm) | 200 | 200 | 250 | 350 | 400 |
Stroke(Z)(mm) | 200 | 200 | 200 | 200 | 250 |
Spindle stroke(mm) |
|
| 200 | 250 | 250 |
Working span(mm) | 540 | 580 | 700 | 730 | 800 |
Max.electrode weight(kg) | 30 | 50 | 50 | 75 | 100 |
Max. load on table(kg) | 200 | 300 | 500 | 700 | 1000 |
Dimension(mm) | 1390×1480×2010 | 1390×1480×2010 | 1440×1460×2225 | 1560×1600×2165 | 1810×1500×2300 |
Weight(kg) | 1000 | 1200 | 1300 | 1800 | 2000 |
cessing current) | 40 | 60 | 60 | 80 | 80 |
Max.cutting speed(mm/min) | 200 | 350 | 350 | 500 | 500 |
Min.electrode consumption | ≤0.2% | ≤0.2% | ≤0.2% | ≤0.2% | ≤0.2% |
Optimum roughness(um) | Ra < 0.3 | Ra < 0.3 | Ra < 0.3 | Ra < 0.3 | Ra < 0.3 |
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
