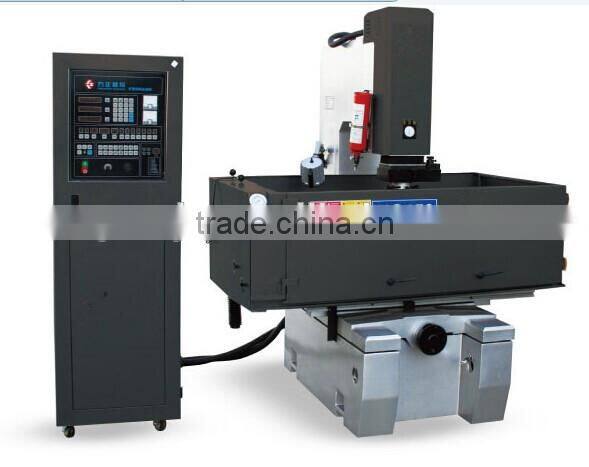

Electrical Spark Discharge Machine NC450
US$ 1,500 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
Xiashi
Model Number:
NC450(D7145)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Precision Electric Spark Discharge Machine CNC2110US$ 1,000 - 10,000MOQ: 1 Set -
Compact Design Electric Spark Discharge Machine NC250(D7130),edm Machine Low PriceUS$ 1,500 - 2,000MOQ: 1 Set
-
Compact Design Electric Spark Discharge Machine NC250(D7135),edm Machine Low PriceUS$ 1,500 - 2,000MOQ: 1 Set
-
High Quality Electric Spark Discharge Machine,edm Die Sinking Machine NC500(D7125) for SaleUS$ 1,500 - 2,000MOQ: 1 Set
-
Compact Design Electric Spark Discharge Machine NC250(D7150),edm Machine Low PriceUS$ 1,500 - 2,000MOQ: 1 Set
Place of Origin
Guangxi, China
Brand Name
Xiashi
Model Number
NC450(D7145)
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
1.Compact design for small part machining
2.Rigid machine base
3.Linear scales in all axes to ensure constant precision
4.Separate dielectric reservoir.
5.Low-maintenance and high efficiency.
6.DC servo-drive for precise control and system stability
7.Anti-carbon automatically detection circuit.
8.Easy-to-learn operation.
9.Direct parameter input and adjustment at the control panel.
10.Translating between Chinese and English, metric and imperial.
11.Machining parameters for specific operations can be stored.
12.Fire prevention and liquid level control automatically.
13.Different discharge system as optional.
14.Conform to the CE safety standard of power box.
| Model | D7125 | D7130 | D7135 | D7145 | D7150 | D7170 |
|---|---|---|---|---|---|---|
| Working table size (mm) | 280×450 | 280×500 | 350×630 | 450×700 | 500×800 | 700×1200 |
| Liquid groove size(mm) | 820×490×280 | 890×530×320 | 980×650×350 | 1200×770×450 | 1400×860×500 | 2000×1100×600 |
| Stroke(X)(mm) | 250 | 300 | 350 | 450 | 500 | 700 |
| Stroke(Y)(mm) | 200 | 200 | 250 | 350 | 400 | 600 |
| Stroke(Z)(mm) | 200 | 200 | 200 | 200 | 250 | 300 |
| Spindle stroke(mm) | 200 | 250 | 250 | 300 | ||
| Working span(mm) | 540 | 580 | 700 | 730 | 800 | 1000 |
| Max.electrode weight(kg) | 30 | 50 | 50 | 75 | 100 | 200 |
| Max. load on table(kg) | 200 | 300 | 500 | 700 | 1000 | 2000 |
| Dimension(mm) | 1390×1480×2010 | 1390×1480×2010 | 1440×1460×2225 | 1560×1600×2165 | 1810×1500×2300 | 1855×1410×2550 |
| Weight(kg) | 1000 | 1200 | 1300 | 1800 | 2000 | 3800 |
| cessing current) | 40 | 60 | 60 | 80 | 80 | 100 |
| Max.cutting speed(mm/min) | 200 | 350 | 350 | 500 | 500 | 800 |
| Min.electrode consumption | ≤0.2% | ≤0.2% | ≤0.2% | ≤0.2% | ≤0.2% | ≤0.2% |
| Optimum roughness(um) | Ra < 0.3 | Ra < 0.3 | Ra < 0.3 | Ra < 0.3 | Ra < 0.3 | Ra < 0.3 |
