COMBINED Punching and Shearing Machine QA32-8B

COMBINED Punching and Shearing Machine QA32-8B photo-1

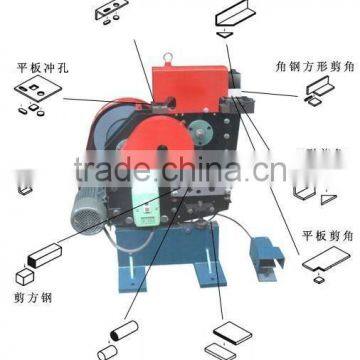

COMBINED Punching and Shearing Machine QA32-8B photo-2

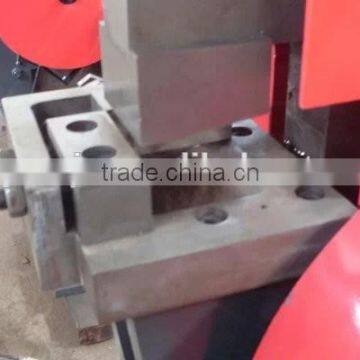

COMBINED Punching and Shearing Machine QA32-8B photo-3

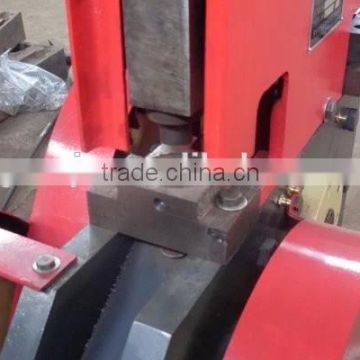

COMBINED Punching and Shearing Machine QA32-8B photo-4

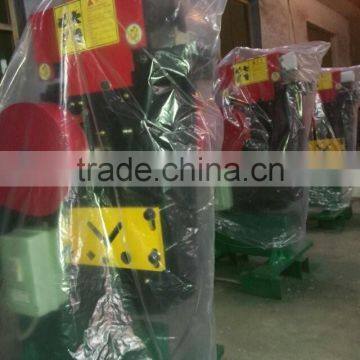

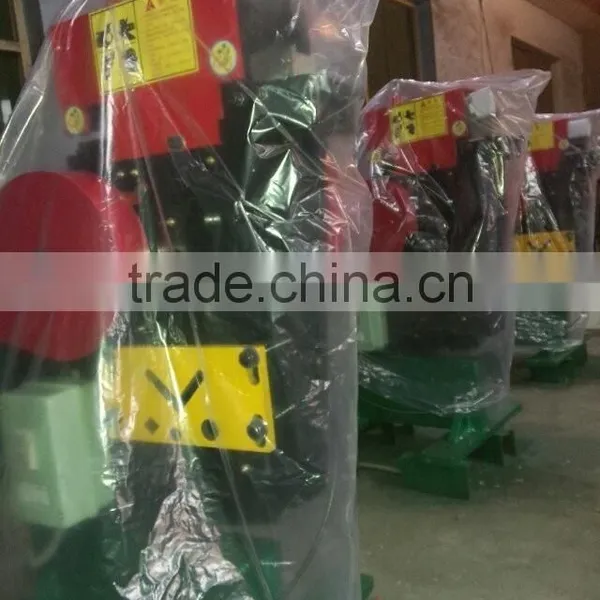

COMBINED Punching and Shearing Machine QA32-8B photo-5

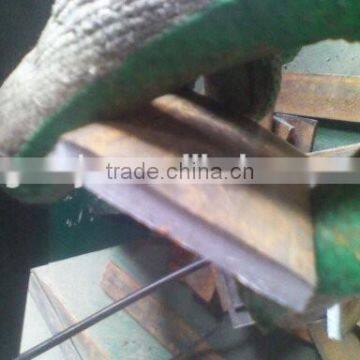

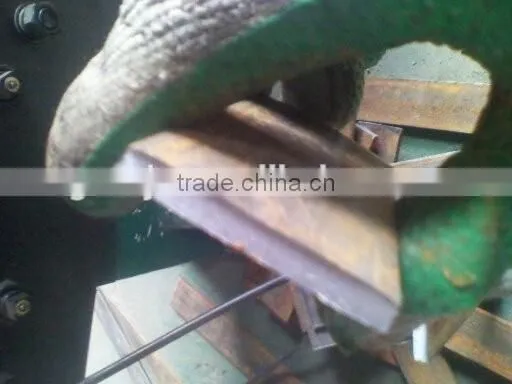

COMBINED Punching and Shearing Machine QA32-8B photo-6
US$ 5,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
Xiashi
Model Number:
QA32-8B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangxi, China
Brand Name Xiashi
Model Number QA32-8B
Condition New
After-sales Service Provided Engineers available to service machinery overseas

COMBINED punching and shearing machine QA32-8B

Product Description



Product features and uses:



QA32-8A, QA32-8B plate and profile cutting machine is my factory design of the new product. That is, a series of new products, industrial machinery series. It has the advantages of novel design, compact structure, beautiful appearance, reliable performance, small volume, light weight, multifunction flexible operation, convenient use and repair, widely used for shearing plate, punching, punching shear profiles, profile and shear modulus. It is the mechanical manufacturing industry, construction industry, hydropower industry, handicraft industry users of smart devices such as punching section.



Model

QA32-8A

QA32-8B

Max.punching force

360KN

360KN

Shearing length

200mm

200mm

Tool travel

27mm

27mm

stroke per min

30

30

Motor Power of motor

2.2KW

2.2KW

Motor voltage

380V(220V/240V)

380V(220V/240V)

Motor rate

50(60)Hz

50(60)Hz

Overall dimensions(L×W×H)

900×500×1100mm

900×500×1100mm

Net weight

520kg

520kg

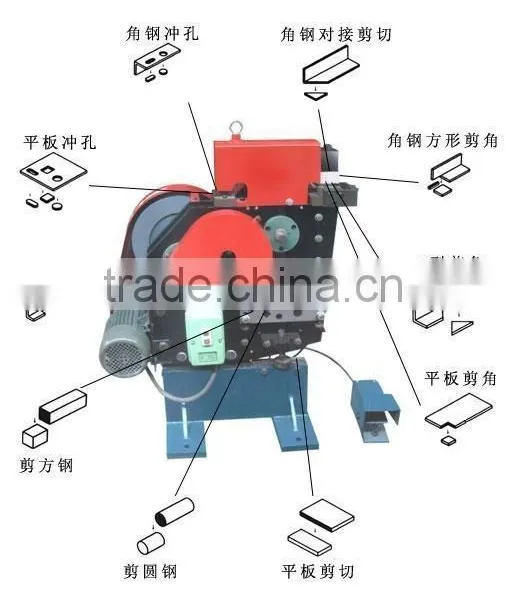

Item

Value

Item

Value

Punching

Φ22/8

Flat steel

100×12

Round bar

16×40/8

Square bar

20×20

Steel plate

δ=8

Module shearing

Angle steel

L.70×70×6

Angle steel

L75×75×8

Round bar

Φ30

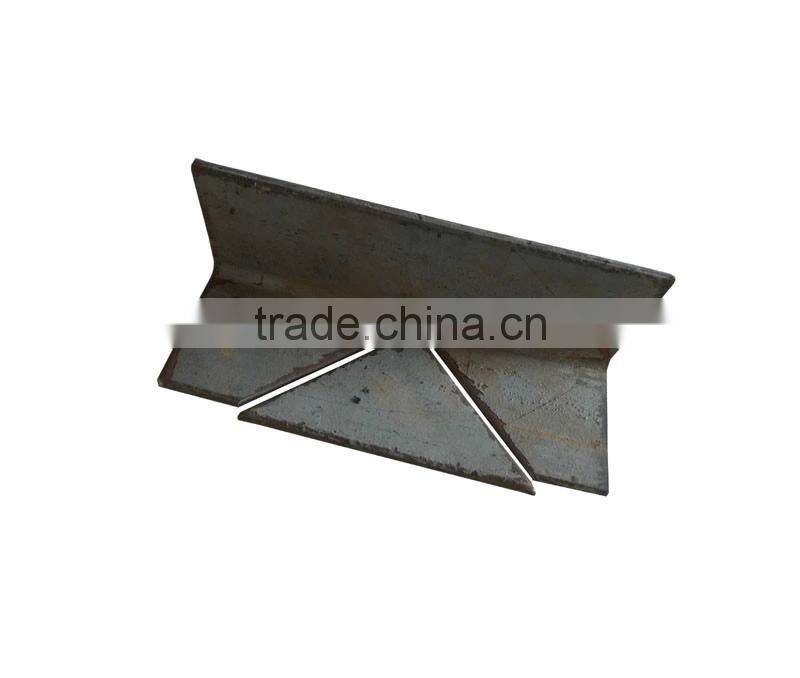

Cutting of angle steel at 90°

L.50×50×6

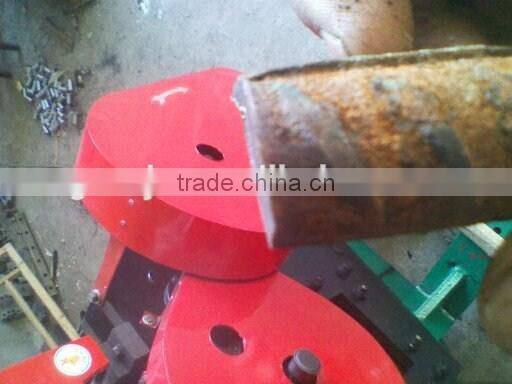

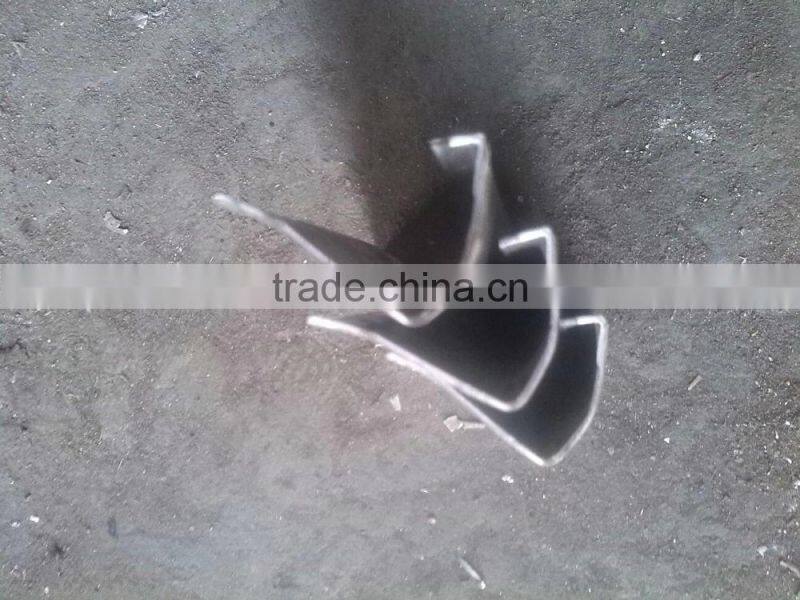

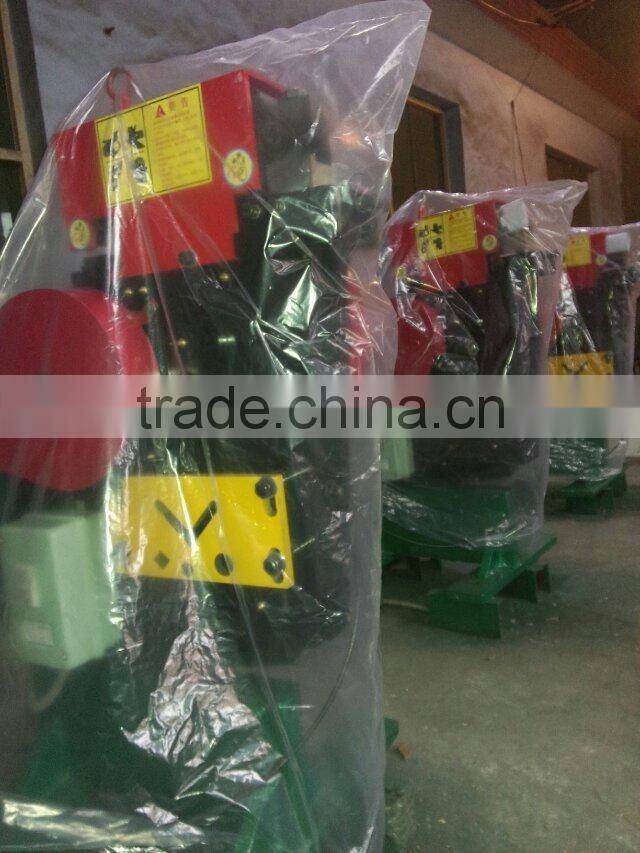

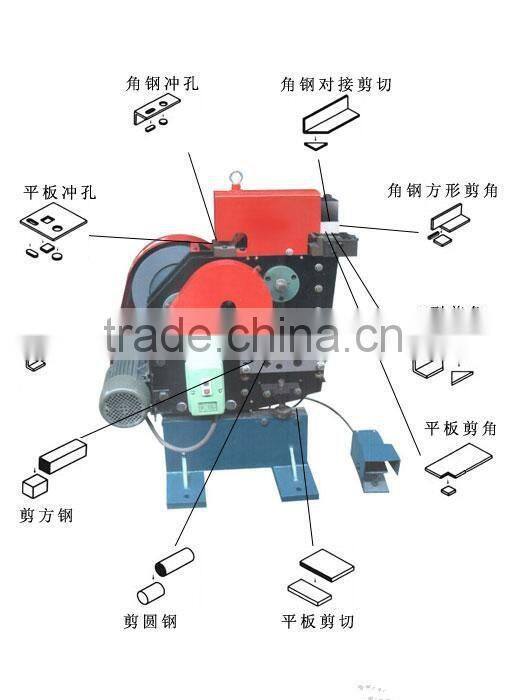

 COMBINED punching and shearing machine QA32-8BCOMBINED punching and shearing machine QA32-8BCOMBINED punching and shearing machine QA32-8B



COMBINED punching and shearing machine QA32-8B







 COMBINED punching and shearing machine QA32-8BCOMBINED punching and shearing machine QA32-8BCOMBINED punching and shearing machine QA32-8BCOMBINED punching and shearing machine QA32-8BCOMBINED punching and shearing machine QA32-8B
