CNC High Efficiency Deep-hole Honing Machine

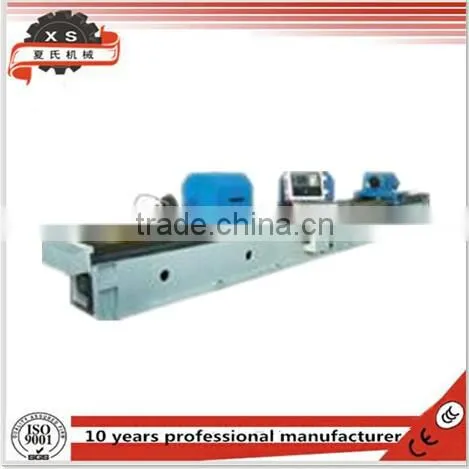

2M2125A 2M2135A CNC HIGH EFFICIENCY DEEPHOLE HONING MACHINE is a special equipment used for honing cylindrical deephole parts such as various hydraulic oil cylinders and cylinders.Hole diameter accuracy of machined workpieces can be up to or over IT7 and surface roughness Ra0.2-0.4µm.It can also repair and maintain taper and ellipticity of machined workpieces with the help of partial honing.
This machine is mated with KND CNC system.AC servo motor,honing box adopt stepless speed,Autocycle timing control unit is used on this machine during reciprocating honing so as to assure accuracy of machined holes and decrease the intensity of labour.
Sand blades and workpieces always maintain constant pressure during honing.It is a feature of high efficiency and strong cutting force.It can perform rough and finished honing of general cylindrical deephole parts after rough-boring.It can directly perform high efficiency honing of colddrawing steel pipes.Traditional deephole processing is simplified by using this machine.Productivity is greatly increased.Materials of honed workpieces may be casting iron or all kinds of steel including quench parts.Cooling system of this machine adopts the method of three-step filtering in order to assure clearing of coolant.
This machine is controlled by electrical operating center.It is easy,safe and reliable in operation.
It can perform not only honing of mass products but also small batch workpieces.It is perfect equipment for machining deep hole parts.
specifications |
technical data(2M2125A) |
technical data(2M2135A) |
range of honing diameter |
40-250mm |
80-350mm |
Max.honing depth |
8000 |
12000 |
height from spindle to bed |
350 |
350 |
diameter range of workpiece clamped |
60-350 |
100-420 |
speed range of spindle |
25-250r/min |
25-250r/min |
speed range of carriage rapid-moving |
3-20m/min |
3-20m/min |
main motor of honing box |
7.5kW |
15kW |
flow of honing head expanding system |
12.5L/min |
12.5L/min |
max pressure of honing head expanding system |
4MPa |
4MPa |
flow of cooling pump |
50L/min |
100L/min |
capacity of cooling box |
950L |
950L |
motor power of honing head expanding system |
1.1kW |
1.1kW |
motor power of cooling pump |
2.2kW |
2.2kW |
power of reciprocating motor |
5.5kW |
7.5kW |
