Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > Vertical Fine Boring Machine T7220C

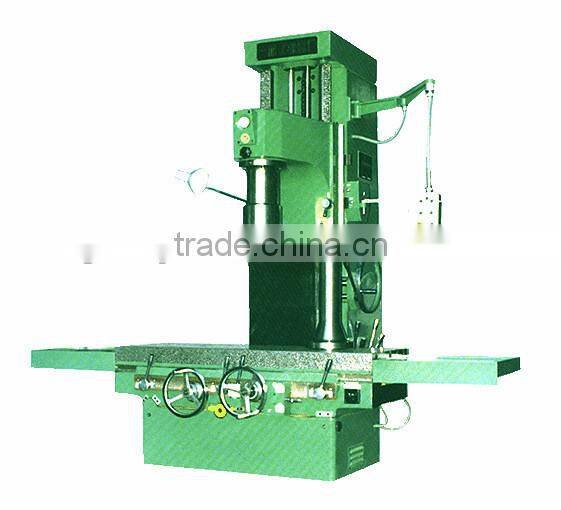

Vertical Fine Boring Machine T7220C

Name: Vertical Fine Boring Machine T7220C
Brand: Xiashi
SKU: 140989434
Availability: InStock

Vertical Fine Boring Machine T7220C thumbnail-1

Vertical Fine Boring Machine T7220C photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangxi, China

Brand Name:

Xiashi

Model Number:

T7220C

Contact Supplier Request Quote Chat Now

Guangxi Xiashi Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shehzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangxi, China

Brand Name Xiashi

Model Number T7220C

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Product Description

T7220C is mainly used for fine boring high accurate holes of cylinder body and engine sleeve, also for other accurate holes, it's can used for milling surface of cylinder. The machine can be used to boring, milling, drilling, reaming.

Max.boring diameter		200mm
Max.boring depth		500mm
Milling cutter-head diameter		250mm
Max.milling area(LXW)		850X250mm
Spindle speed range		53~840rev/min
Spindle speed range		0.05~0.20mm/rev
Spindle travel		710mm
Distance from spindle axis to carriage vertical plane		315mm
Table longitudinal travel		1100mm
Table longitudinal feed speed		54,108mm/min
table longitudinal quick move speed		1500mm/min
Table latitudinal travel		100mm
Machining accuracy	Boring dimension accuracy	1T7
	roundness	1T8
	roundness	0.005
	cylindricity	0.01/300
Boring roughness		Ra1.6
Milling roughness		Ra1.6~3.2
Overall dimensions(lXwWXH)		1588X2610X2350mm
N.W/G.W		3600/4000Kg
Packing dimensions(lXwXh)		1830X1730X2620mm
