High Quality Metal Forging Hammer Machine C41-400KG, Air Hammer With Cheap Price
- Shenzhen
- T/T Credit Card
You May Like
-
High Quality Metal Forging Hammer Machine, Air Hammer C41-400KG For Sale
-
Competitive Price Metal Forging Hammer Machine C41-400KG, Air Hammer With High Quality
-
Competitive Price Metal Forging Hammer Machine C41-400KG, Air Hammer With High Quality
-
Good Price Metal Forging Hammer Machine C41-400KG, Air Hammer With High Performance
-
Good Price Metal Forging Hammer Machine C41-400KG, Air Hammer With High Quality
-
Hot Metal Forging Hammer Machine C41-400KG, Air Hammer With High Quality
Product Details
| Place of Origin | Guangxi, China | Brand Name | Xiashi | |
| Model Number | C41-400 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

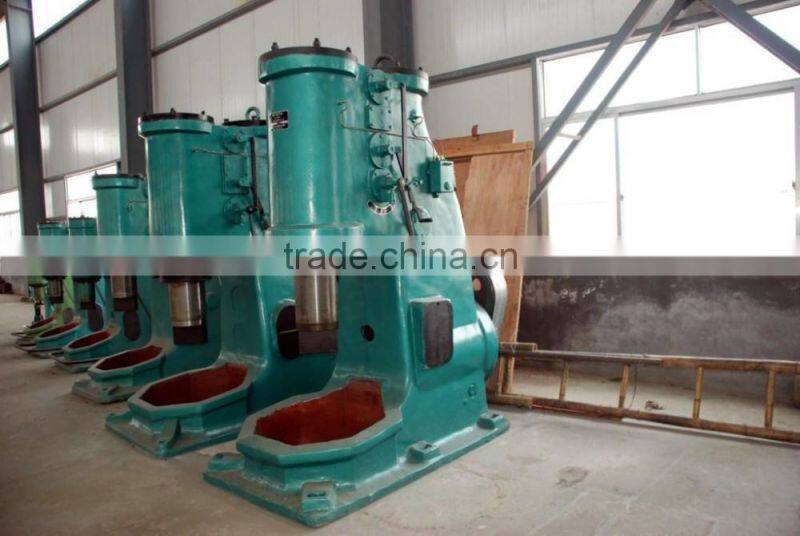

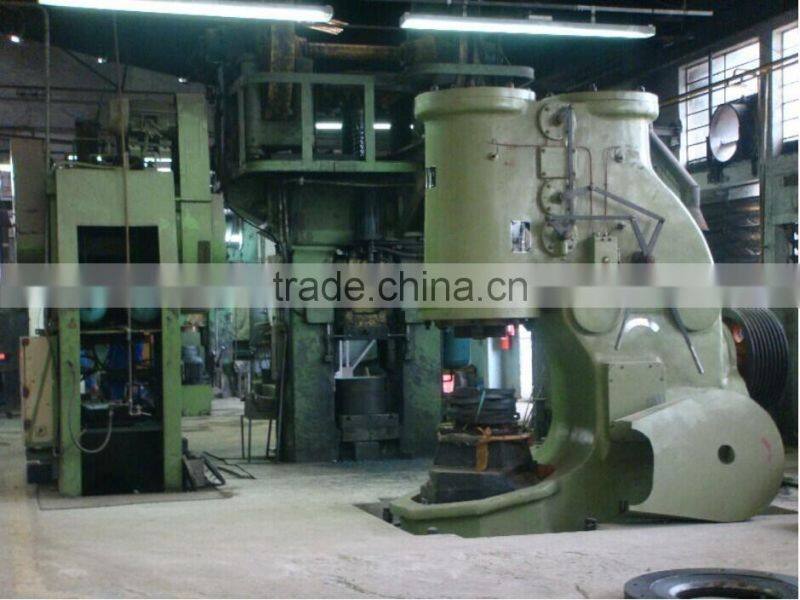

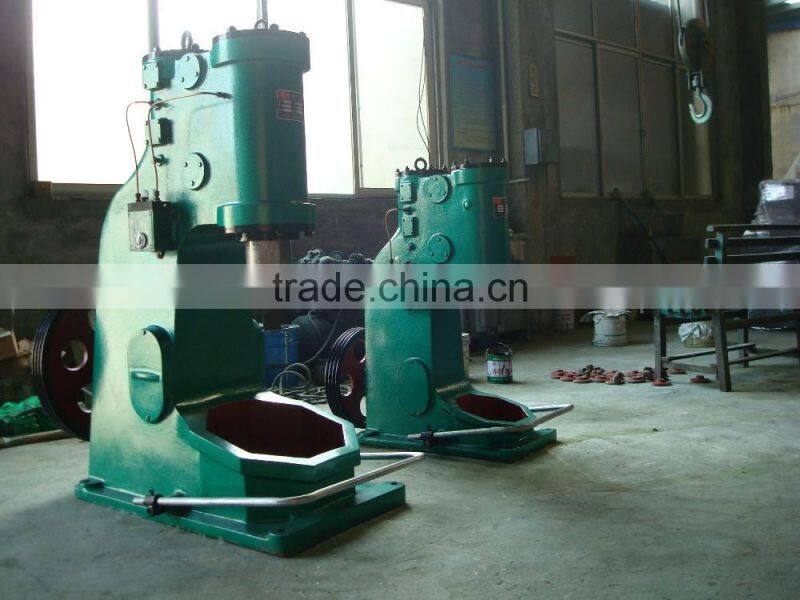

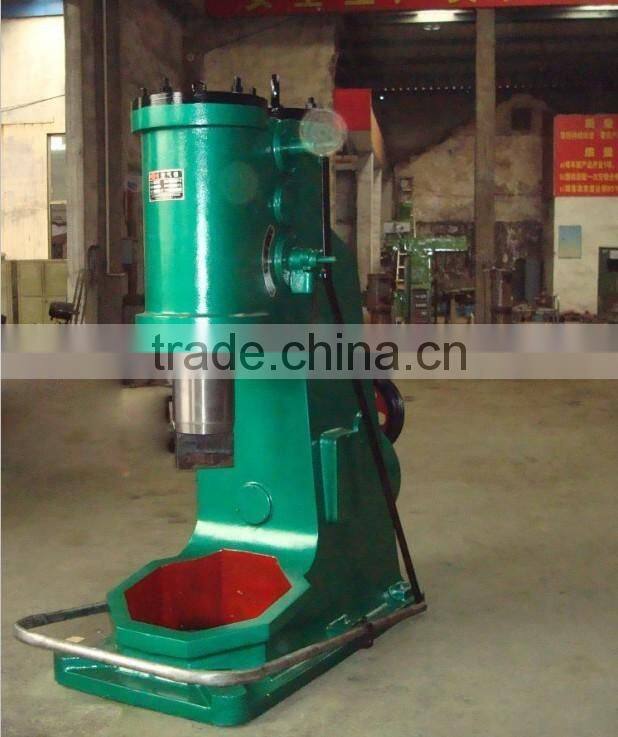

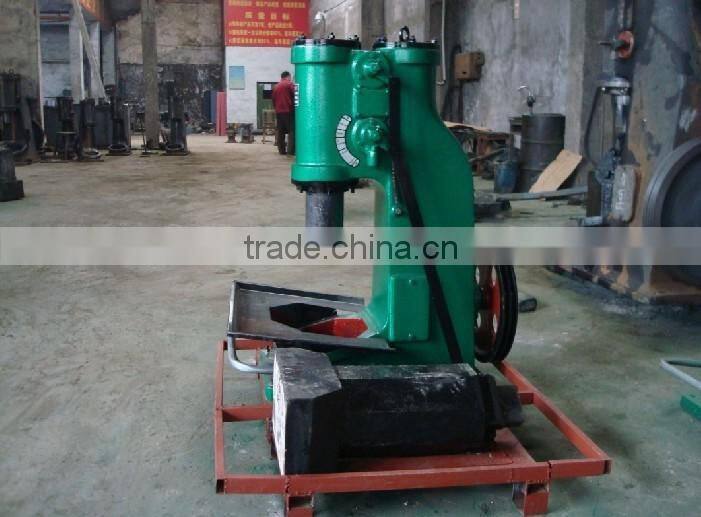

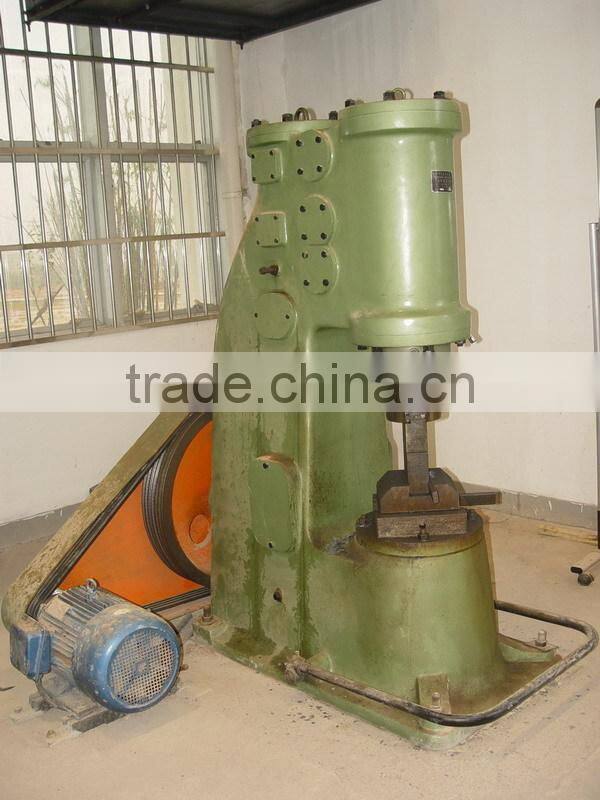

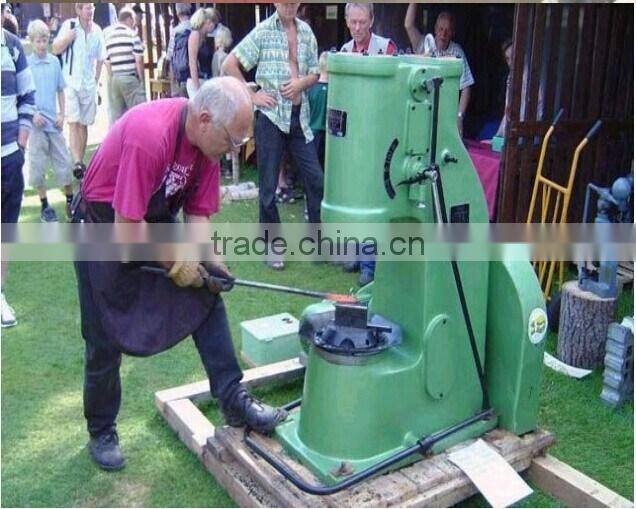

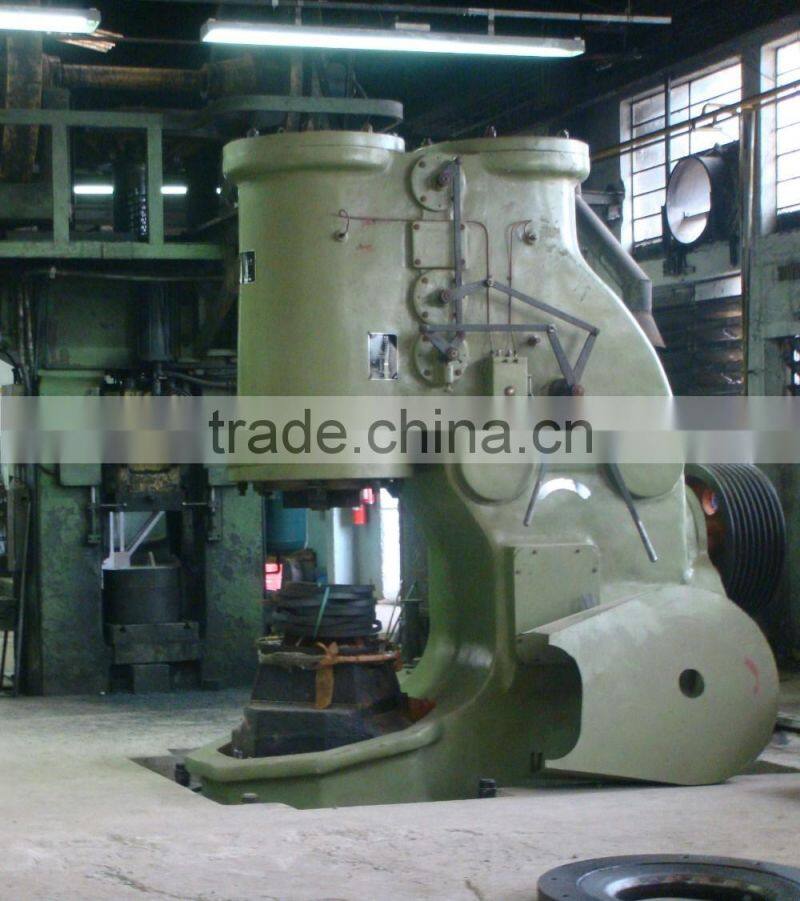

High quality Metal forging hammer machine C41-400KG, air hammer With cheap price
It mainly used to free forging,drawing,upsetting,punching,hot shearing,forged welding,bending,torsion and foetal,standard forge
Widely used for general Forging works, such asdrawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.
Features:
1. Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with its self-contained cylinder,require no ancillary power raising plant.
2. The Pneumatic forging hammer is equipped with a self-priming lubricating oil pump, during operating, it can realize the automatic lubrication.
3. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.
Rated weight of the tup(kg) | 400 | ||
Minimum blow energy(kj) | 9.5 | ||
Number of blows per minute(min-1) | 120 | ||
Height of working area (mm) | 530 | ||
Distance between tup centre axis and frame front(mm) | 520 | ||
Maximum round steel can be forged(Diameter)(mm) | 240 | ||
Maximum square steel can be forged(mm) | 220 x 220 | ||
Motor | Type | Y200L-4-B3 | |
Rate power(kw) | 30 | ||
Weight of the hammer (kg) | Hammer | 8000 | |
Anvil block | 4800 | ||
Outside size(mm) | 2785x1400x2884 | ||
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
