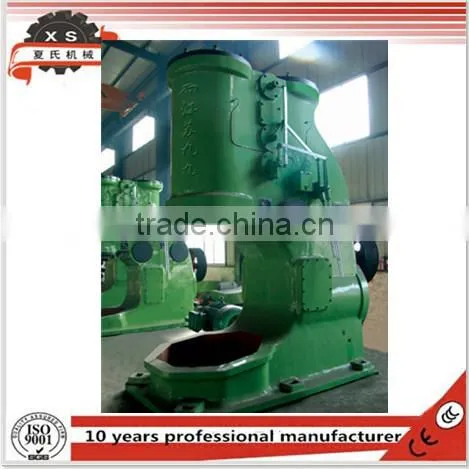

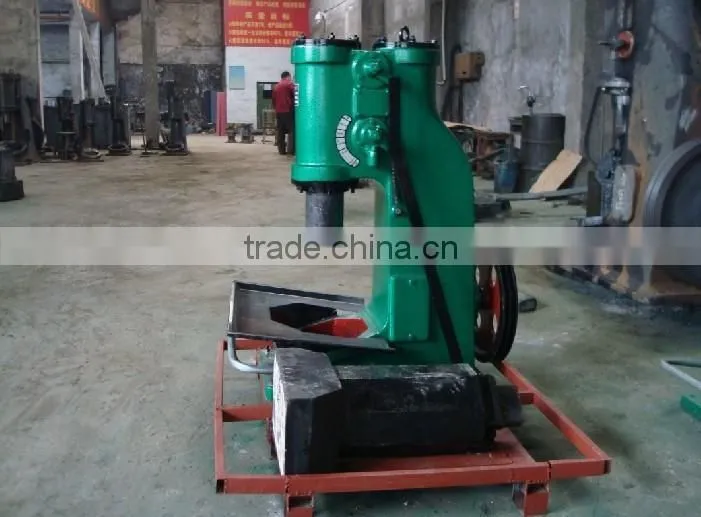

560kg Pneumatic Hammer , Air Hammer C41-560

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangxi, China	Brand Name	Xiashi
Model Number	C41-560	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

It mainly used to free forging,drawing,upsetting,punching,hot shearing,forged welding,bending,torsion and foetal,standard forge

Widely used for general Forging works, such asdrawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.

Features:

1. Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with its self-contained cylinder,require no ancillary power raising plant.
2. The Pneumatic forging hammer is equipped with a self-priming lubricating oil pump, during operating, it can realize the automatic lubrication.
3. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.

Rated weight of the tup(kg)			560
Minimum blow energy(kj)			13.7
Number of blows per minute(min-1)			115
Height of working area (mm)			600
Distance between tup centre axis and frame front(mm)			550
Maximum round steel can be forged(Diameter)(mm)			280
Maximum square steel can be forged(mm)			270 x 270
Motor	Type		Y280S-6-B3
	Rate power(kw)		45
Weight of the hammer (kg)		Hammer	9800
		Anvil block	672
Outside size(mm)			3905x1370x3175
