Home > Packaging & Printing > Machinery for Packaging Supplies > Carton Machine & Box Making Machine > Large Vertical Hydraulic Packing Machine ZX1-300

Large Vertical Hydraulic Packing Machine ZX1-300

Large Vertical Hydraulic Packing Machine ZX1-300 photo-1
Large Vertical Hydraulic Packing Machine ZX1-300 photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Semi-Automatic
Usage:
Metal Forming Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Automatic Grade Semi-Automatic
Usage Metal Forming Machine
Place of Origin Guangxi, China
Brand Name xiashi
Model Number ZX1-300
Voltage 380(50HZ)
Power(W) 22(Kw)
Dimension(L*W*H) 4300x2400x1600(mm)
Weight 100000(kg)
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas



Product Description

 Product use and characteristics

    This machine is mainly used for various types of aluminum profile factory, plastic factory, paper mill, copper material factory, material recycling companies and other enterprises, is applicable to metal, waste paper, plastic packaging recycling,It can to improve labor efficiency ,reduce labor intensity , save manpower, reduce the ideal equipment for transportation costs, nominal pressure have 30 tons, 50 tons, 80 tons, 100 tons, 150 tons, 200 tons, 400 tons, 500 tons of other specifications, the other can be based on user requirements and design.



Technical parameter



Model

ZX1-300

ZX1-350

Main system

300KN

300KN

operation mode

hydraulic power

hydraulic power

power of motor

22kw

37kw

Oil pump Model

YCY14-1B-80

YCY14-1B-80

rated Displacement

80ml / r

80ml / r

rated pressure

31.5MPa

31.5MPa

Hydraulic oil

46 # anti-wear hydraulic oil

46 # anti-wear hydraulic oil

Feeding Opening(L×W×H)

1500x700x1000mm

2400x1100x1000mm

Bale size(W×H×L)

1500 × 1000mm × 700mm

2000 × 1500mm × 1200mm

Overall dimensions(L×W×H)

4300x2400x1600(mm)

5000x2400x2200mm

Machine weight

10T

21T

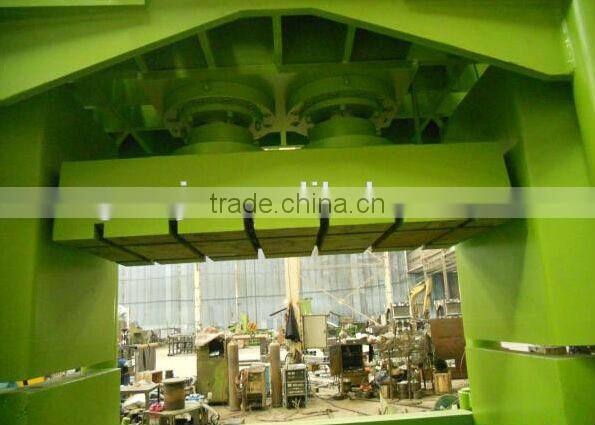

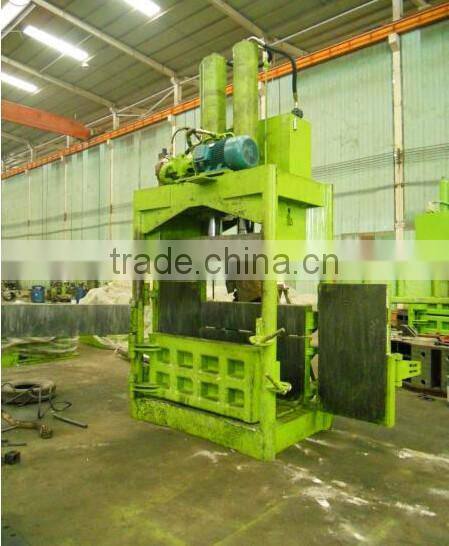

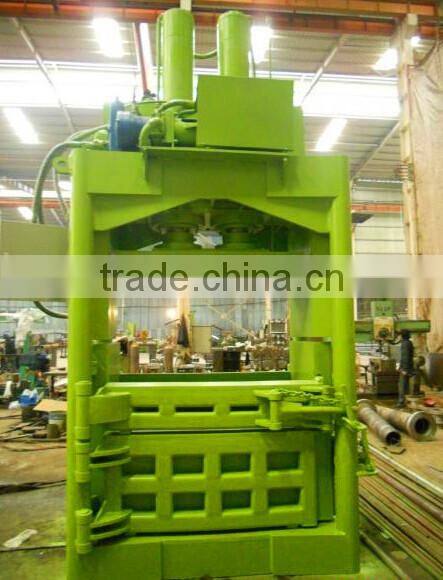

Detailed pictures for your reference

Large vertical hydraulic packing machine ZX1-300Large vertical hydraulic packing machine ZX1-300Large vertical hydraulic packing machine ZX1-300Large vertical hydraulic packing machine ZX1-300



Large vertical hydraulic packing machine ZX1-300
