UPVC/ CPVC Foot valves JIS/CPVC Foot valves

Specifications

Name: UPVC/ CPVC Foot valves JIS
Material: UPVC/ CPVC
Standard: JIS
Size : 1/2"~6"

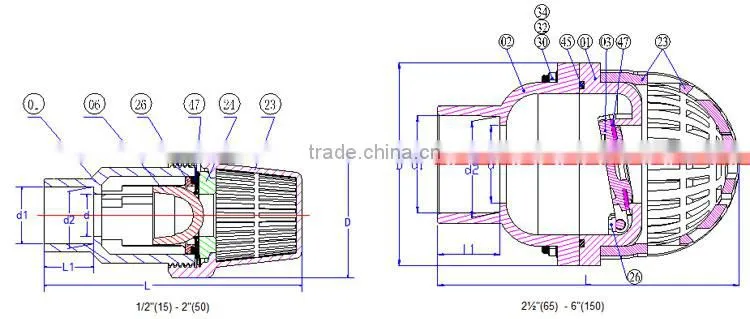

ITEM	PAPT	MATERIAL	QTY		ITEM	PAPT	MATERIAL	QTY
01	BODY	PVC/CPVC	1		01	LOWER BODY	PVC/CPVC	1
06	BALL	PVC/CPVC	1		02	UPPER BODY	PVC/CPVC	1
23	BONNET	PVC/CPVC	1		03	VALVE CLACK	PVC/CPVC	1
24	PAD	PVC/CPVC	1		23	BONNET	PVC/CPVC	1
26	BUCKLE	PVC/CPVC	1		26	BUCKLE	PVC/CPVC	1
47	SEAL	EPDM/VITON	1		30	BOLT	SS 304	8/12
					32	PAD	SS 304	8/12
					34	NUT	SS 304	8/12
					45	ORING	EPDM/VITON	1
					47	SEAL	EPDM/VITON	1



SIZE	d	d1	d2	D	L	L1
1/2"(15)	15	22.40	21.73	54.00	109.00	22.30
3/4"(20)	20	26.45	25.69	63.00	137.50	25.50
1"(25)	25	32.55	31.70	73.50	153.00	28.60
11/4"(32)	32	38.60	37.65	84.50	181.50	32.00
11/2"(40)	40	48.70	47.74	98.00	204.00	35.00
2"(50)	50	60.80	59.78	119.00	239.00	38.00
21/2"(65)	65	76.60	75.68	165.00	235.50	47.00
3"(80)	75	89.60	88.55	172.00	256.00	53.00
4"(100)	95	114.70	113.60	205.00	321.50	62.00
6"(150)	150	166.00	164.63	290.00	445.00	86.50



  UPVC/CPVC Foot valves JIS advantages:

1. New CUP shape ball can stop water by just 0.5kg pressure

2. Materials meet drinking water standard

3. 100% pure virgin material, CaCO3 free (Chalk)

4. UV resistant powder added

5. Can be assembled vertically or horizontally

 UPVC/CPVC Foot valves JIS description:

1. Material: PVC, CPVC

2. Size: 1/2'' - 6''; 20mm - 160mm ; DN15 - DN150

3. Standard: ANSI, DIN, JIS, CNS

4. Joint End: Socket or Threaded(NPT,PT,BSPF)

5. Working Pressure: 150 PSI

6. Operating Temperature: PVC(0~55°C); CPVC(0~95°C)

7. Valve body color : PVC(dark gray/white), CPVC(light gray)

  UPVC/CPVC Foot valves JIS design:

1. Bonnet can prevent massive objects entring into foot valve
2. Increase the nut-solid, thread taper and laps, improved pressure resistant
3. Seat is designed to fix the sealing performance
4. Thickening Oring, more toughness, sealing better
5. Seat is designed to fix the seal
6. From the platform to half-ball sealing, more reliable performance, sealing pressure levels increased (0.5kg-10kg), and it can easy to install by horizontal or vertical
7. In the ribs from three to six, making better diversion
