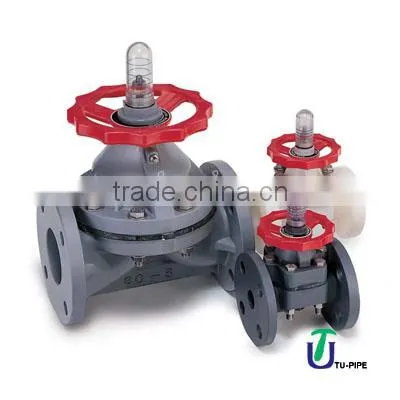

UPVC CPVC PVDF PP Diaphragm Flanged Valves ANSI DIN JIS/regulating Valve
Negotiable
MOQ: 5 Cartons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Plastic, PVC CPVC PVDF PP
Type:
Other, Valves
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ABS Flange Diaphragm Valves DIN (Civil)/ABS Flange Diaphragm ValvesNegotiableMOQ: 5 Cartons -
Industrial CPVC Flanged Diaphragm Valves JIS/JIS Diaphragm ValveNegotiableMOQ: 5 Cartons
-
Union Type Diaphragm Valves DIN PN16 (ANSI SCH 80)/UPVC Union Type Diaphragm ValvesNegotiableMOQ: 5 Cartons
-
UPVC/ CPVC Flanged Single Union Foot Valves ANSI/dark Gray Foot ValveNegotiableMOQ: 5 Cartons
-
UPVC Spring Foot Valves JIS ANSI DIN/UPVC Spring Foot ValvesNegotiableMOQ: 5 Cartons
Material
Other, Plastic, PVC CPVC PVDF PP
Type
Other, Valves
Place of Origin
Zhejiang, China
Model Number
DIN,ANSI,JIS
Brand Name
TU
Specifications
Name: UPVC CPVC PVDF PP Diaphragm flanged valves ANSI DIN JISMaterial: PVC CPVC PVDF PP
Standard: ANSI DIN JIS
| Size | Standard | Material | Gasket | O-ring | Diaphragm | End type | Bolt |
| 1/2"~8" | ANSI,JIS,DIN | PVC | PTFE | NBR | EPDM,FPM,PTFE | Flanged | SUS 304 / 316 |
| 1/2"~8" | ANSI,JIS,DIN | CPVC | PTFE | NBR | EPDM,FPM,PTFE | Flanged | SUS 304 / 316 |
| 1/2"~8" | ANSI,JIS,DIN | PVDF | PTFE | NBR | EPDM,FPM,PTFE | Flanged | SUS 304 / 316 |
| 1/2"~8" | ANSI,JIS,DIN | PP | PTFE | NBR | EPDM,FPM,PTFE | Flanged | SUS 304 / 316 |
| NO. | PART | MATERIAL | Q'TY |
| 1 | BODY | UPVC,CPVC,PP,PVDF | 1 |
| 2 | BONNET | UPVC,CPVC,PP,PVDF,PP+GF | 1 |
| 3 | COMPRESSOR | FC,SUS,PPG,PVDF | 1 |
| 4 | HANDWHEEL | PP | 1 |
| 5 | SLEEVE | C3602,SUS | 1 |
| 6 | STEM | C3602,SUS | 1 |
| 7 | DIAPHRAGM | EPDM,FPM,PTFE | 1 |
| 8 | CAP | UPVC,CPVC,PVDF | 1 |
| 9 | COMPRESSOR PIN | SUS 304 | 1 |
| 10 | INSERTED METAL | C3604,SUS304 | 1 |
| 11 | GREASE NIPPLE | C3604,(65-200) | 1 |
| 12 | BOLTS&WASHER | 200mm---16set | SUS 304/316 |
| 13 | INSERTED NUT | 150mm---12set | |
| 65-125mm---8set | |||
| 14 | NUTS&WASHER | 25-50mm---6set | |
| 15 | THRUST BEARING | STANDARD(100-200) | 1 |
| 16 | STOPPER | SUS 304 | 1 |
| 17 | SET NUT | SUS 304 | 1 |
| 18 | GAUGE COVER | AS | 1 |
| 19 | SHEET GASKET | EPDM | 1 |
| 20 | SHEET RING | SUS 304 | 1 |
| 21 | SPRING WASHER | SUP | 1 |
| 22 | O-RING | NBR | 1 |
| 23 | LOGO PLATE | UPVC | 1 |
Pressure rating: 1/2"~3" 150 PSI, 4"~6" 72 PSI, 8" 43 PSI (Working pressure is
varified by rawmaterial of diaphragm and temperature.)
Smooth operation with clear indication of opening / closing through the gauge cover
Low maintenance cost with replaceable diaphragm and long service life
Adjustable stopper can avoid over tighteness.
Caution! The valve is completely closed when handwheel can't turn more with normal torque,
but it will cause the unrecoverable divulsion of diaphragm if the handwheel is continuously forced to turn in such above condition!
