Home > Construction & Decoration > Pipe Fittings > Tee > PVC CPVC PVDF PP Diaphragm Valves BS JIS/BS Diaphragm Valves
Negotiable
MOQ: 5 Cartons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Plastic, PVC CPVC PVDF PP
Type:
Other, Valves
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PVC CPVC PVDF PP Diaphragm Valves DIN ANSI/ PP Diaphragm ValvesNegotiableMOQ: 5 Cartons -
UPVC CPVC PVDF PP Diaphragm Flanged Valves ANSI DIN JIS/regulating ValveNegotiableMOQ: 5 Cartons
-
ABS Flange Diaphragm Valves DIN (Civil)/ABS Flange Diaphragm ValvesNegotiableMOQ: 5 Cartons
-
Industrial CPVC Flanged Diaphragm Valves JIS/JIS Diaphragm ValveNegotiableMOQ: 5 Cartons
-
Union Type Diaphragm Valves DIN PN16 (ANSI SCH 80)/UPVC Union Type Diaphragm ValvesNegotiableMOQ: 5 Cartons
Material
Other, Plastic, PVC CPVC PVDF PP
Type
Other, Valves
Place of Origin
Zhejiang, China
Model Number
BS,JIS
Brand Name
TU
Specifications

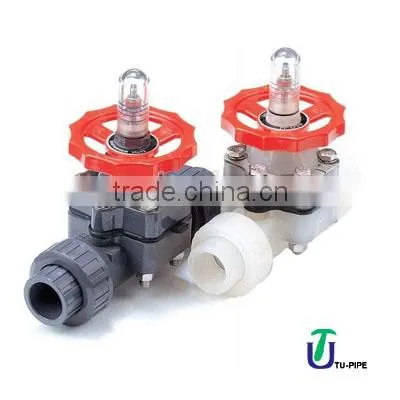

Name: PVC CPVC PVDF PP Diaphragm Valves BS JISMaterial: PVC CPVC PVDF PP
Standard: BS JIS

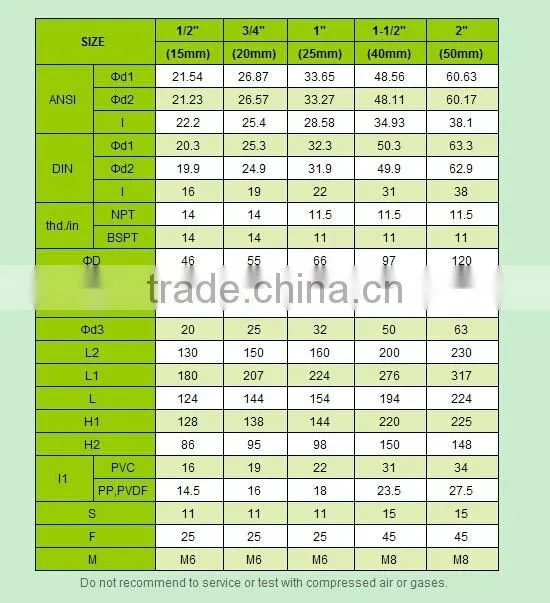

Size : 1/2''~2"
| Size | Standard | Material | Gasket | O-ring | Diaphragm | End type | Bolt |
| 1/2"~2" | DIN | PVC | EPDM | NBR | EPDM, FPM, PTFE | Spigot | SUS 304 / 316 |
| 1/2"~2" | DIN | CPVC | EPDM | NBR | EPDM, FPM, PTFE | Spigot | SUS 304 / 316 |
| 1/2"~2" | DIN | PVDF | EPDM | NBR | EPDM, FPM, PTFE | Spigot | SUS 304 / 316 |
| 1/2"~2" | DIN | PP | EPDM | NBR | EPDM, FPM, PTFE | Spigot | SUS 304 / 316 |
| 1/2"~2" | ANSI, JIS, DIN | PVC | EPDM | NBR / EPDM, FPM | EPDM, FPM, PTFE | Socket, Threaded | SUS 304 / 316 |
| 1/2"~2" | ANSI, JIS, DIN | CPVC | EPDM | NBR / EPDM, FPM | EPDM, FPM, PTFE | Socket, Threaded | SUS 304 / 316 |
| 1/2"~2" | ANSI, JIS, DIN | PVDF | EPDM | NBR / EPDM, FPM | EPDM, FPM, PTFE | Socket, Threaded | SUS 304 / 316 |
| 1/2"~2" | ANSI, JIS, DIN | PP | EPDM | NBR / EPDM, FPM | EPDM, FPM, PTFE | Socket, Threaded | SUS 304 / 316 |

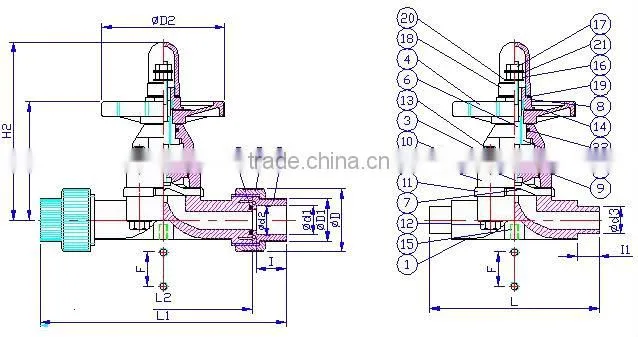

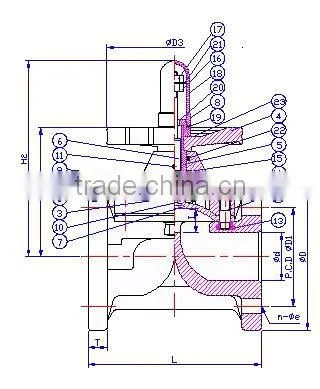

| NO. | PART | MATERIAL | Q'TY |
| 1 | BODY | UPVC,CPVC,PP,PVDF | 1 |
| 2 | BONNET | UPVC,CPVC,PP,PVDF,PP+GF | 1 |
| 3 | COMPRESSOR | FC,SUS | 1 |
| 4 | HANDWHEEL | PP | 1 |
| 5 | SLEEVE | C3602 | 1 |
| 6 | STEM | C3602 | 1 |
| 7 | DIAPHRAGM | EPDM,FPM,PTFE | 1 |
| 8 | CAP | UPVC,CPVC,PVDF,PP+GF | 1 |
| 9 | COMPRESSOR PIN | SUS 304 | 1 |
| 10 | INSERTED METAL | C3602,SUS304 | 1 |
| 11 | RUBBER LINER | SUS 304 | 1 |
| 12 | BOLTS&WASHERS | SUS 304 | 4 |
| 13 | NUTS&WASHERS | SUS 304 | 4 |
| 14 | NAME PLATE | PVC | 1 |
| 15 | BOTTOM NUT | C3604 | 2 |
| 16 | STOPPER | SUS 304 | 1 |
| 17 | SET NUT | SUS 304 | 1 |
| 18 | GAUGE CIVER | AS | 1 |
| 19 | SHEET GASKET | EPDM | 1 |
| 20 | SHEET RING | SUS 304 | 1 |
| 21 | INDICATIVE WASHER | ABS | 1 |
| 22 | O-RING | NBR | 1 |
| 23 | O-RING | EPDM,FPM | 2 |
| 24 | END CONNECTOR | UPVC,CPVC,PP.PVDF | 2 |
| 25 | UNION NUT | UPVC,CPVC,PP.PVDF | 2 |
Pressure rating: 100 PSI
Smooth operation with clear indication of opening / closind through the gauge cover.
Low maintenance cost with replaceable diaphragm and long service life
Adjustable stopper can avoid over tightening
Caution! The valve is completely closed when handwheel can't turn more with normal torque,
but it will cause the unrecoverable divulsion of diaphragm if the handwheel is continuously forced to turn in such above condition!
