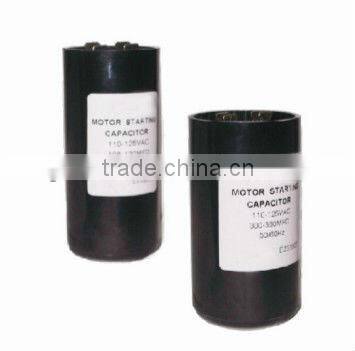

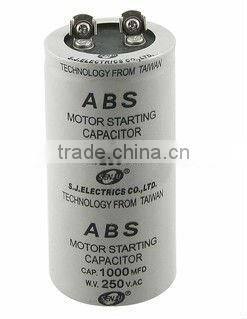

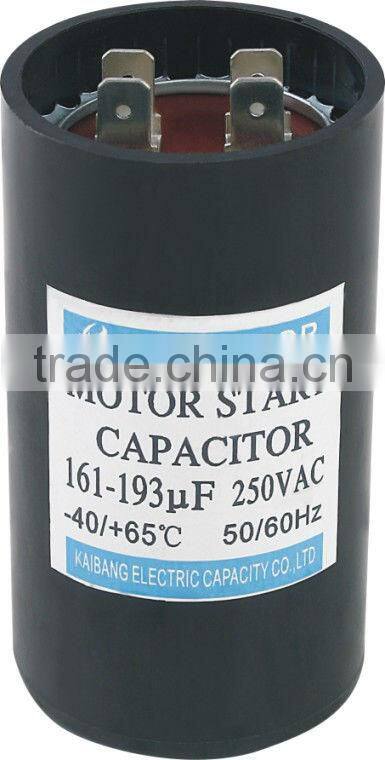

AC motor start capacitor / AC motor capacitor / AC start capacitor
Specification
Technique date of motor starting capacitor
Operating temperature:-40~+65°C
Rated voltage:110~330VAC
Rated capacitance:20-1600µf
Tolerance:-10~+30%
Loss tangent:tg δ ≤ 0.15(100Hz)
Testing voltage:T-T 0.85 Un 2S no breakdown
T-C 2500VAC 10S no breakdown
T-T(VAC):Apply 1.2 times rated voltage for 2 seconds,no breakdown
T-C(VAC):2000VAC 10 senconds,no breakdown
Aluminum case and bakelite case are acailable.

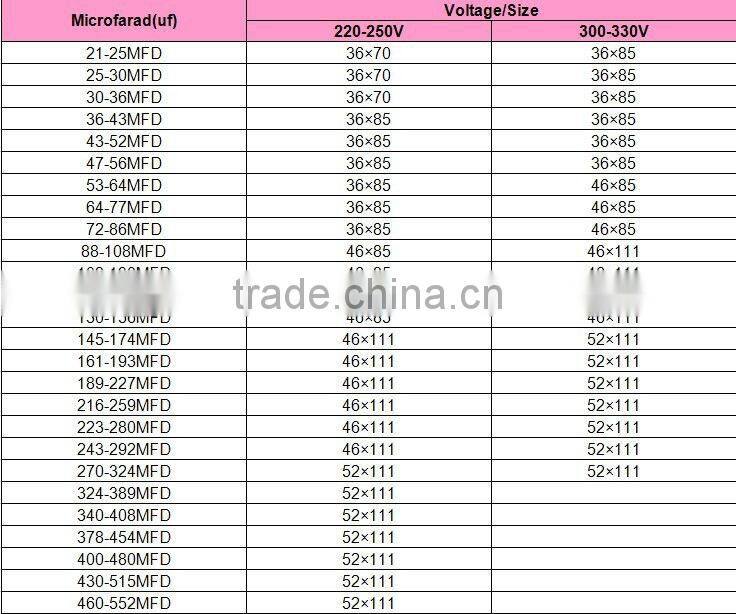

| Model | Microfarad | Frequency | Temperature | Voltage | Size(Dia. xheight) |
| NPTC-SC1101 | 21-25uf | 50/60HZ | -25°C-70°C | 110-125V | 36 ×70mm |
| NPTC-SC1102 | 25-30uf | 50/60HZ | -25°C-70°C | 110-125V | 36 ×70mm |
| NPTC-SC1103 | 30-36uf | 50/60HZ | -25°C-70°C | 110-125V | 36 ×70mm |
| NPTC-SC1104 | 36-43uf | 50/60HZ | -25°C-70°C | 110-125V | 36 ×70mm |
| NPTC-SC1105 | 53-64uf | 50/60HZ | -25°C-70°C | 110-125V | 36 ×70mm |
| NPTC-SC1106 | 72-88uf | 50/60HZ | -25°C-70°C | 110-125V | 36 ×70mm |
| NPTC-SC1107 | 88-108uf | 50/60HZ | -25°C-70°C | 110-125V | 37 x 86mm |
| NPTC-SC1108 | 124-149uf | 50/60HZ | -25°C-70°C | 110-125V | 37 x 86mm |
| NPTC-SC1109 | 130-156uf | 50/60HZ | -25°C-70°C | 110-125V | 37 x 86mm |
| NPTC-SC1110 | 145-175uf | 50/60HZ | -25°C-70°C | 110-125V | 37 x 86mm |
| NPTC-SC1111 | 161-193uf | 50/60HZ | -25°C-70°C | 110-125V | 37 x 86mm |
| NPTC-SC1112 | 189-227uf | 50/60HZ | -25°C-70°C | 110-125V | 37 x 86mm |
| NPTC-SC1113 | 216-259uf | 50/60HZ | -25°C-70°C | 110-125V | 37 x 86mm |
| NPTC-SC1114 | 233-280uf | 50/60HZ | -25°C-70°C | 110-125V | 37 x 86mm |
| NPTC-SC1115 | 243-292uf | 50/60HZ | -25°C-70°C | 110-125V | 37 x 86mm |
| NPTC-SC1116 | 270-324uf | 50/60HZ | -25°C-70°C | 110-125V | 37 x 86mm |
| NPTC-SC1117 | 324-388uf | 50/60HZ | -25°C-70°C | 110-125V | 46 x 86mm |
| NPTC-SC1118 | 340-408uf | 50/60HZ | -25°C-70°C | 110-125V | 46 x 86mm |
| NPTC-SC1119 | 378-454uf | 50/60HZ | -25°C-70°C | 110-125V | 46 x 86mm |
| NPTC-SC1120 | 400-480uf | 50/60HZ | -25°C-70°C | 110-125V | 46 x 86mm |
| NPTC-SC1121 | 430-516uf | 50/60HZ | -25°C-70°C | 110-125V | 46 x 86mm |
| NPTC-SC1122 | 460-552uf | 50/60HZ | -25°C-70°C | 110-125V | 46 x 86mm |
| NPTC-SC1123 | 540-648uf | 50/60HZ | -25°C-70°C | 110-125V | 46 x 86mm |
| NPTC-SC1124 | 590-708uf | 50/60HZ | -25°C-70°C | 110-125V | 46 x 86mm |
| NPTC-SC1125 | 645-774uf | 50/60HZ | -25°C-70°C | 110-125V | 46 x 86mm |
| NPTC-SC1126 | 708-850uf | 50/60HZ | -25°C-70°C | 110-125V | 46 x 86mm |
| NPTC-SC1127 | 720-864uf | 50/60HZ | -25°C-70°C | 110-125V | 46 x 111mm |
| NPTC-SC1128 | 829-995uf | 50/60HZ | -25°C-70°C | 110-125V | 46 x 111mm |
| NPTC-SC1129 | 1000-1200uf | 50/60HZ | -25°C-70°C | 110-125V | 46 x 111mm |
Feature
Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.
Application
Used widely in washing machine,water pump,air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.
Packaging & Delivery
Packaging Detail : Standard Package or as the customer's request
Delivery Detail: delivery date is 30 days after receiving 30% deposit
Payment
25~35 days after receiving 30% deposit
AC motor start capacitor
AC motor capacitor
AC start capacitor
